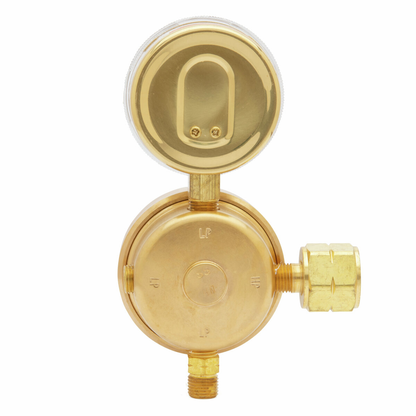

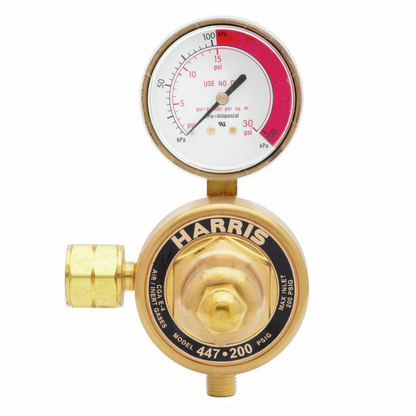

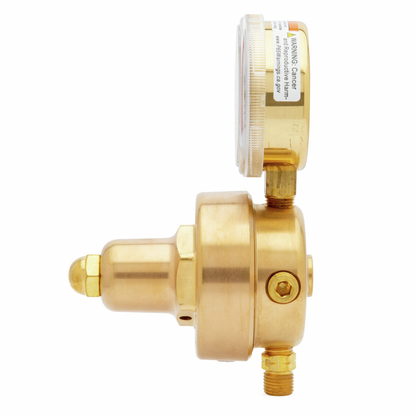

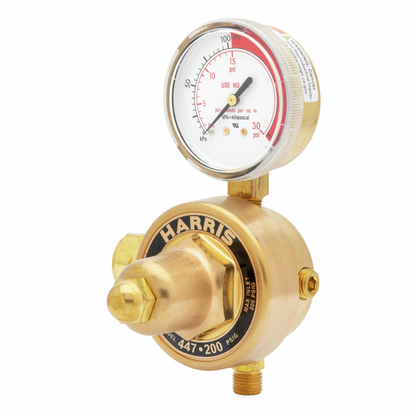

Harris Products Group, 4000588, Pipeline Pressure Regulator, 1-1/4 in; 1/4 in NPT (F) Inlet, 9/16 in - 18 RH (F) Outlet, Brass Body

Model 447NC regulator is designed to deliver high gas flows from piping systems that are equipped with standard pipe connection outlets. This heavy-duty, high flow, pipeline regulator has back entry access and a 1/4 in. NPT inlet connection. It features a brass body and bonnet, 2.5 in. dual scale brass gauge, brass T-screw adjustment handle and one-piece encapsulated seat design with internal filter and neoprene seat.

Features

• Forged brass body and bonnet for longer service life
• Conforms to CGA E-4
• Provides high gas flows for piping systems
• 2.5 in. Brass-plated steel dual scale (psi/kPa) easy-to-read gauges
• Easy-to-operate brass T-screw handle
• 1/4 in. NPT (F) inlet connection
• Rubber diaphragm for better pressure control
• 9/16 in. - 18 RH (F) outlet connection
• Designed to work with back-entry standard pipe connection outlets
• One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination

• Weight: 4.3 lbs
• Size: 1/4 in.
• Connection Inlet: 1/4 in. NPT (F)
• Connection Outlet: 9/16 in. -18 RH (F)
• Material: Brass, Brass-plated steel, Rubber, Neoprene
• Gauge Size: 2.5 in.
• Gauge Scale: psi/kPa
• Compliance: CGA E-4
