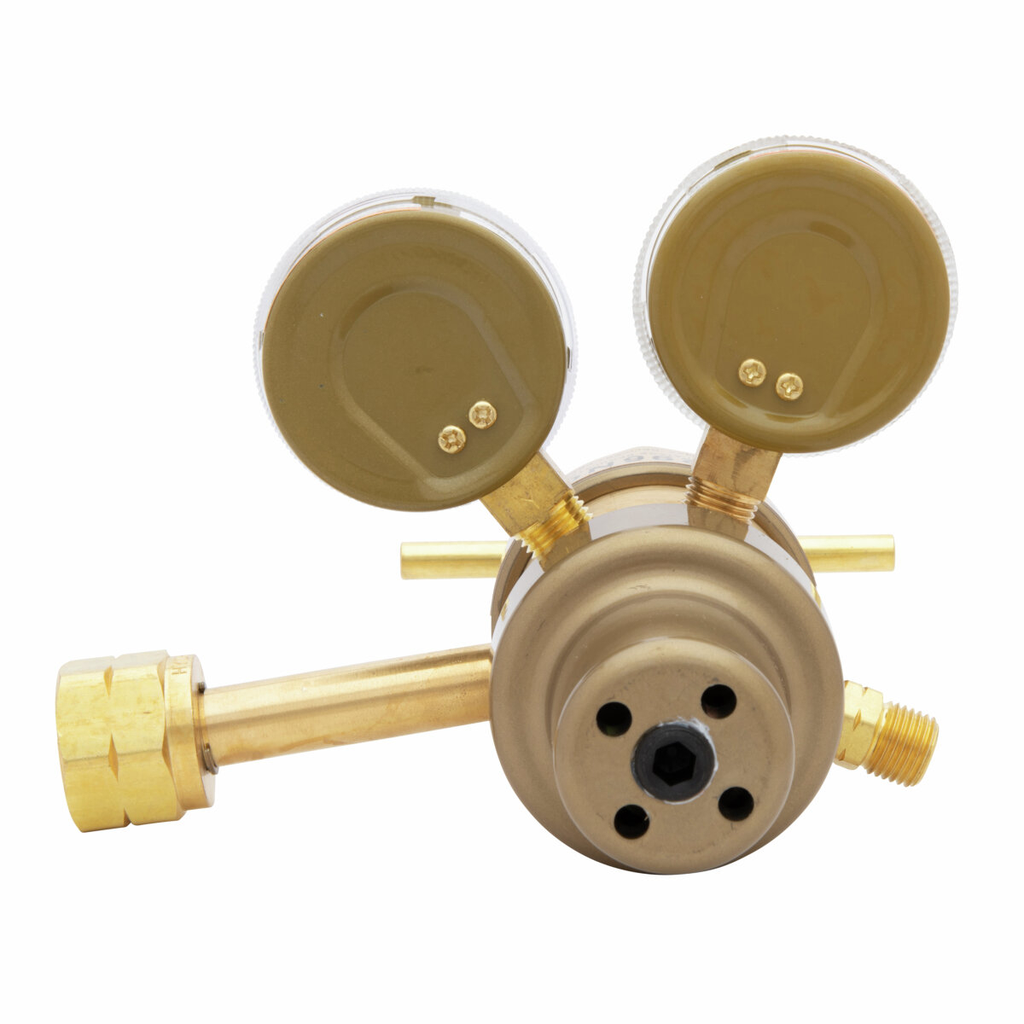

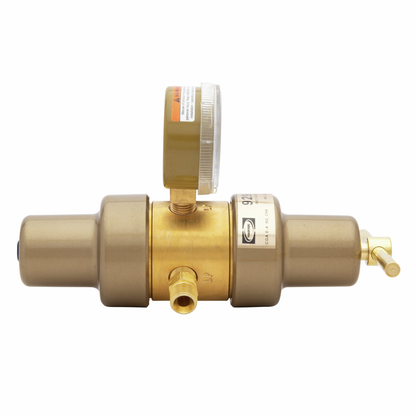

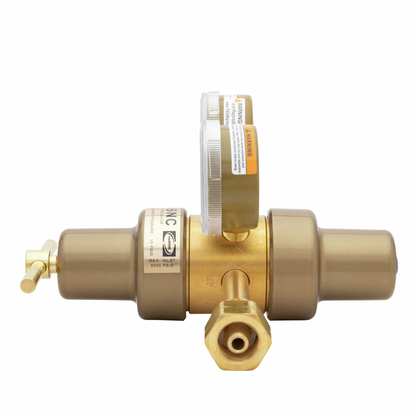

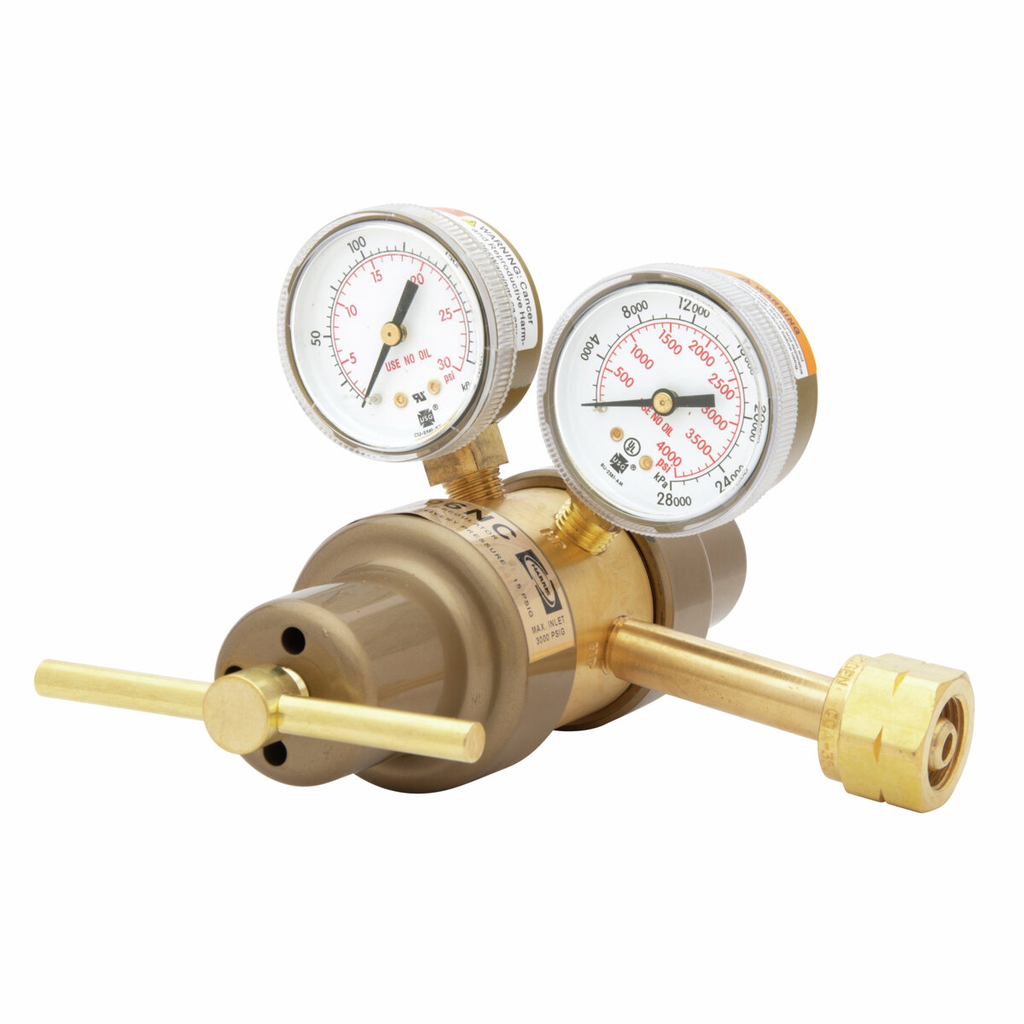

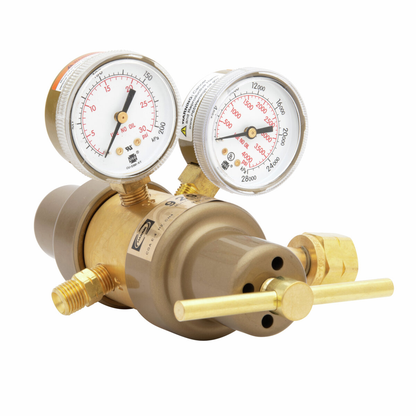

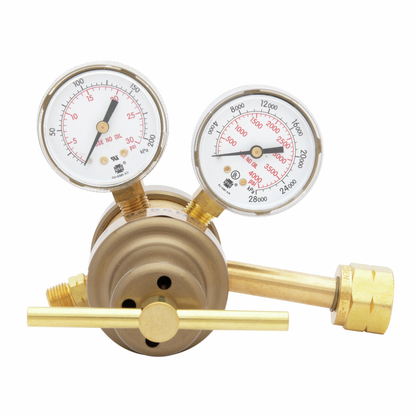

Harris Products Group, 3302613, Pressure Regulator, Dual Scale Gauges, 3000 PSIG, Brass Body, Neoprene Diaphragm

Model 9296 is a standard for general purpose, laboratory, industrial and welding applications where neoprene diaphragms are acceptable. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. It features a one-piece encapsulated seat design with internal filter and Teflon® seat.

Features

• 2 in. Steel dual scale easy-to-read gauges
• Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Brass body and painted brass bonnet for longer service life
• General purpose applications where neoprene diaphragms are acceptable
• Maximum inlet pressure is 3000 PSIG
• Designed for applications where a constant delivery pressure is required
• Easy-to-operate brass T-screw adjusting handle
• Conforms to CGA E-4 standard
• Neoprene diaphragm for greater sensitivity and improved pressure control

• Maximum Inlet Pressure: 3000 PSIG
• Gauge Size: 2 in
• Gauge Type: Steel dual scale
• Weight: 5.6 lbs
• Body Material: Brass
• Bonnet Material: Painted brass
• Diaphragm Material: Neoprene
• Seat Material: PTFE Teflon
• Valve Type: Tamper-proof, self-reseating high pressure internal safety relief valve
• Adjusting Handle Material: Brass
• Compliance: CGA E-4 standard
