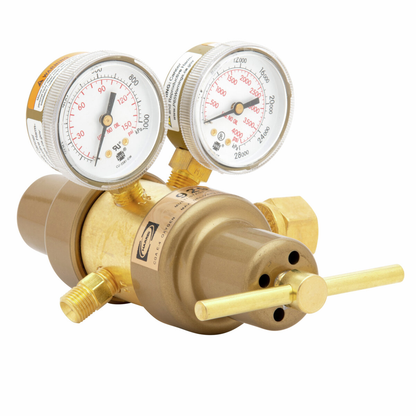

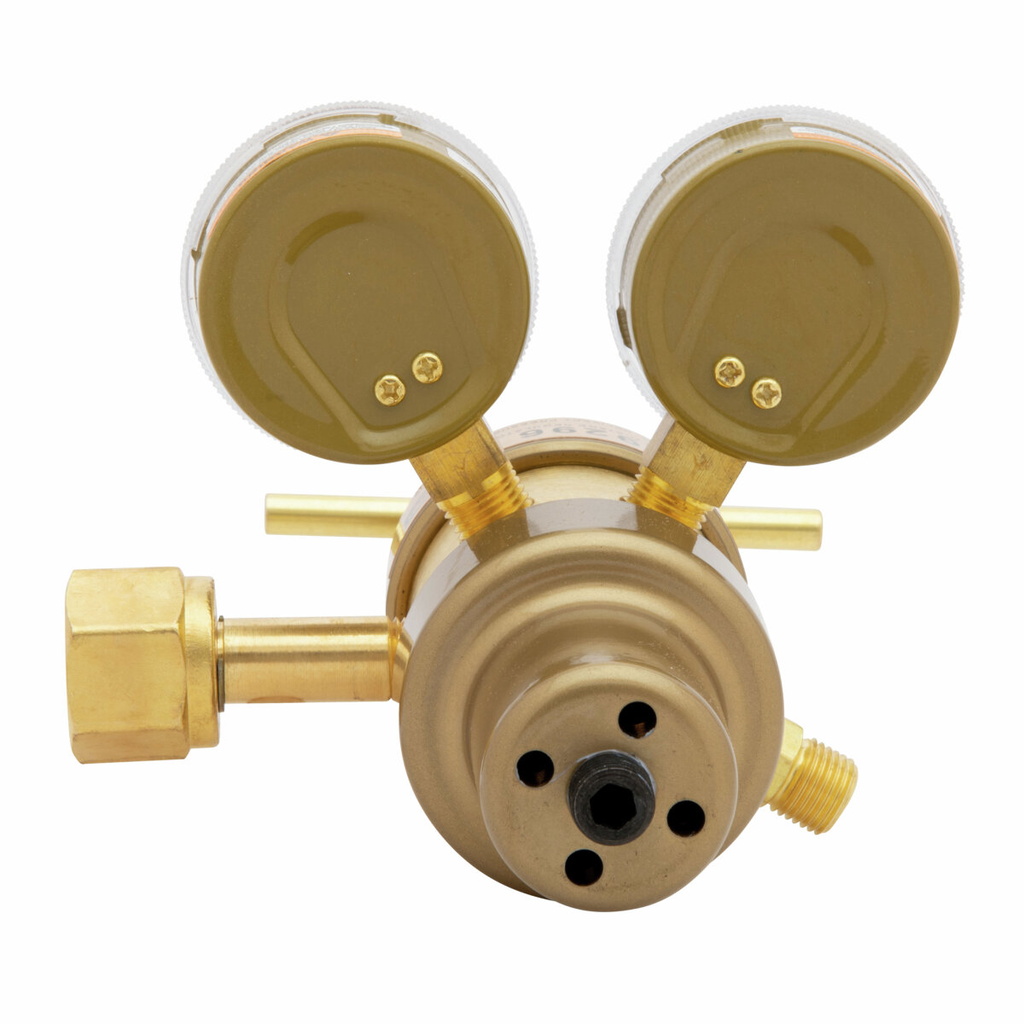

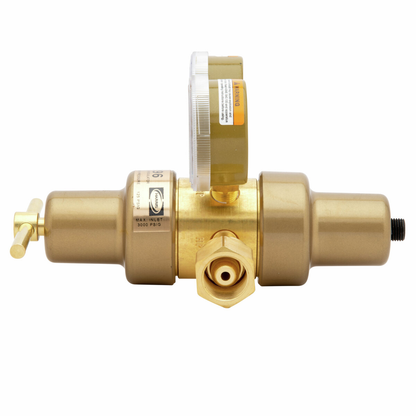

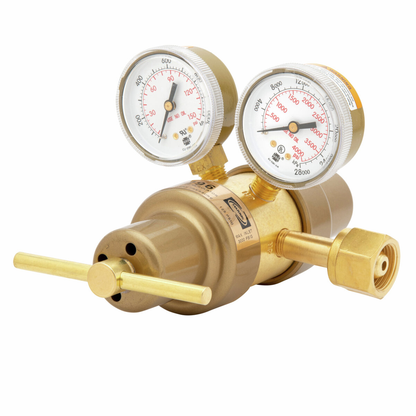

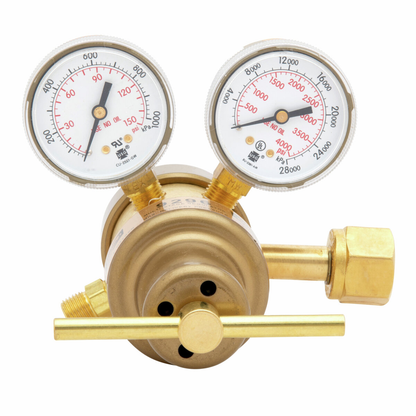

Harris Products Group, 3302603, Pressure Regulator, 3000 psig Max Inlet Pressure, Brass Body, Neoprene Diaphragm

Model 9296 is a standard for general purpose, laboratory, industrial and welding applications where neoprene diaphragms are acceptable. This heavy duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. It features a one-piece encapsulated seat design with internal filter and Teflon® seat.

Features

• Maximum inlet pressure 3000 psig
• Brass body and fittings and painted brass bonnet for longer service life
• Neoprene diaphragm for greater sensitivity and improved pressure control
• One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon® seat from particulate contamination
• Easy-to-operate brass T-screw adjusting handle
• Conforms to CGA E-4 standard for gas pressure regulators
• 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
• Equipped with tamper-proof, self-reseating internal safety relief valve

• Maximum Inlet Pressure: 3000 psig
• Gauge Size: 2 in
• Gauge Scale: psi/kPa
• Material: Brass, Neoprene, Steel, PTFE Teflon
• Diaphragm Material: Neoprene
• Seat Design: One-piece encapsulated with 10 micron sintered internal filter
• Adjustment Handle Material: Brass
• Safety Feature: Tamper-proof self-reseating internal relief valve
• Compliance: CGA E-4 Standard
• Weight: 5.44 lbs
