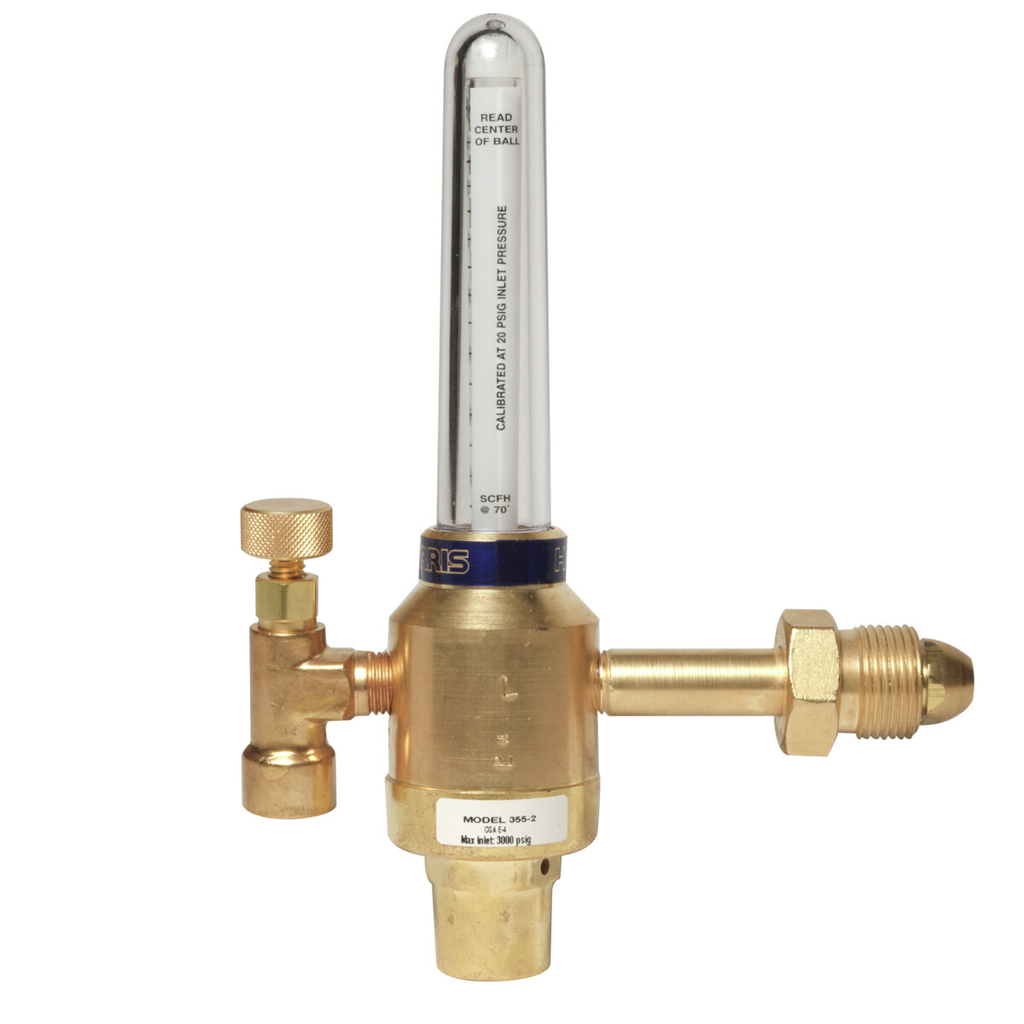

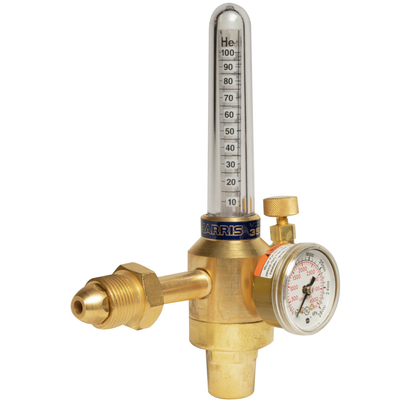

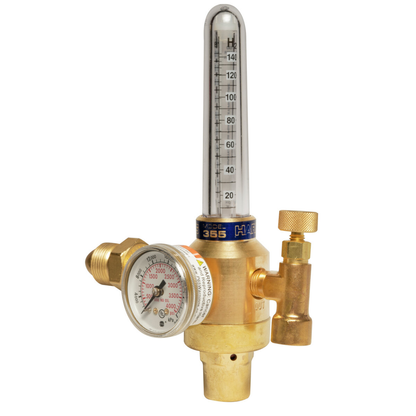

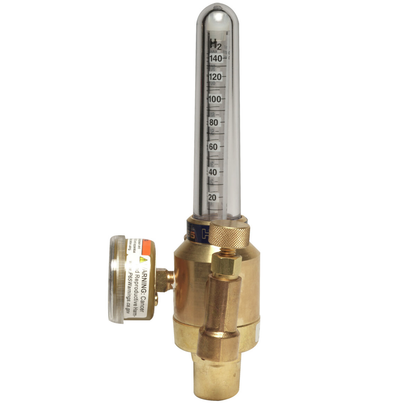

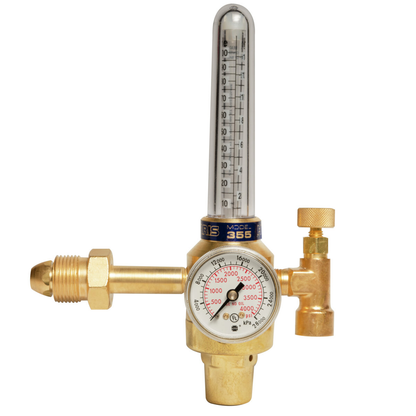

Harris Products Group, 3104201, Flowmeter Regulator, Brass Body, 20 PSIG, 1.5 in Gauge, 140 SCFH

Model 355-2 incorporates a regulator and flowmeter into one compact unit. It is pressure compensated to 20 PSIG. The flow tube and float are easily changed for different gases. The flow tube has dual calibration. It includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The regulator features a brass body, 1.5 in. steel dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. This flowmeter regulator is UL® listed. The outlet connection is 5/8 in. - 18 (F). For vertical mounting only.

Features

• Brass body and bonnet for longer service life
• Compact, pressure compensated to 20 PSIG UL® listed flowmeter regulator in one unit
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Durable cover and easy-to-read flow tube provides accurate flow-control up to 140 SCFH
• 1.5 in. Steel dual scale easy-to-read gauge
• Dual calibration on flow tube
• Flow tube and float are easily changed for different gases
• Neoprene diaphragm for better pressure control
• Vertical mounting only
• Sensitive needle valve for fingertip control permits highly accurate flow settings

• Pressure Compensation: 20 PSIG
• Flow Capacity: 140 SCFH
• Gauge Size: 1.5 in
• Connection Size: 5/8 in - 18 (F)
• Mounting Orientation: Vertical
• Weight: 3.6 lbs
• Material: Brass, Steel, PTFE, Neoprene
• Gauge Material: Steel
• Compliance: UL Listed
