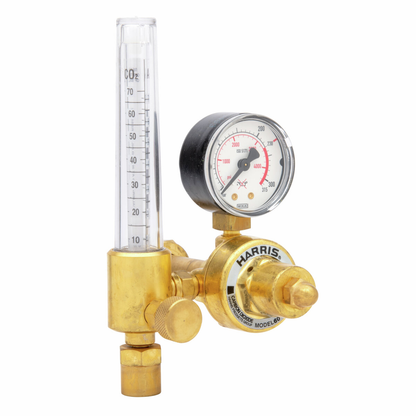

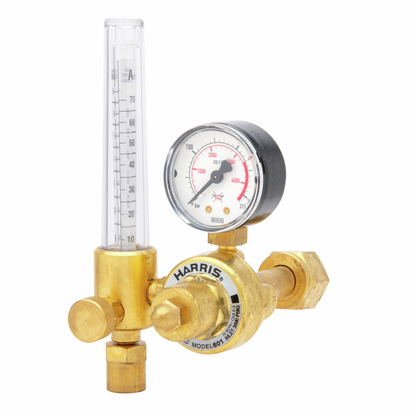

Harris Products Group, 3100578, Compensated Flowmeter Regulator, 50 mm Gauge; Brass Body; 70 SCFH; Neoprene Diaphragm

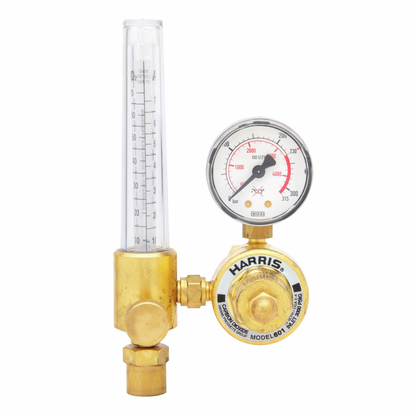

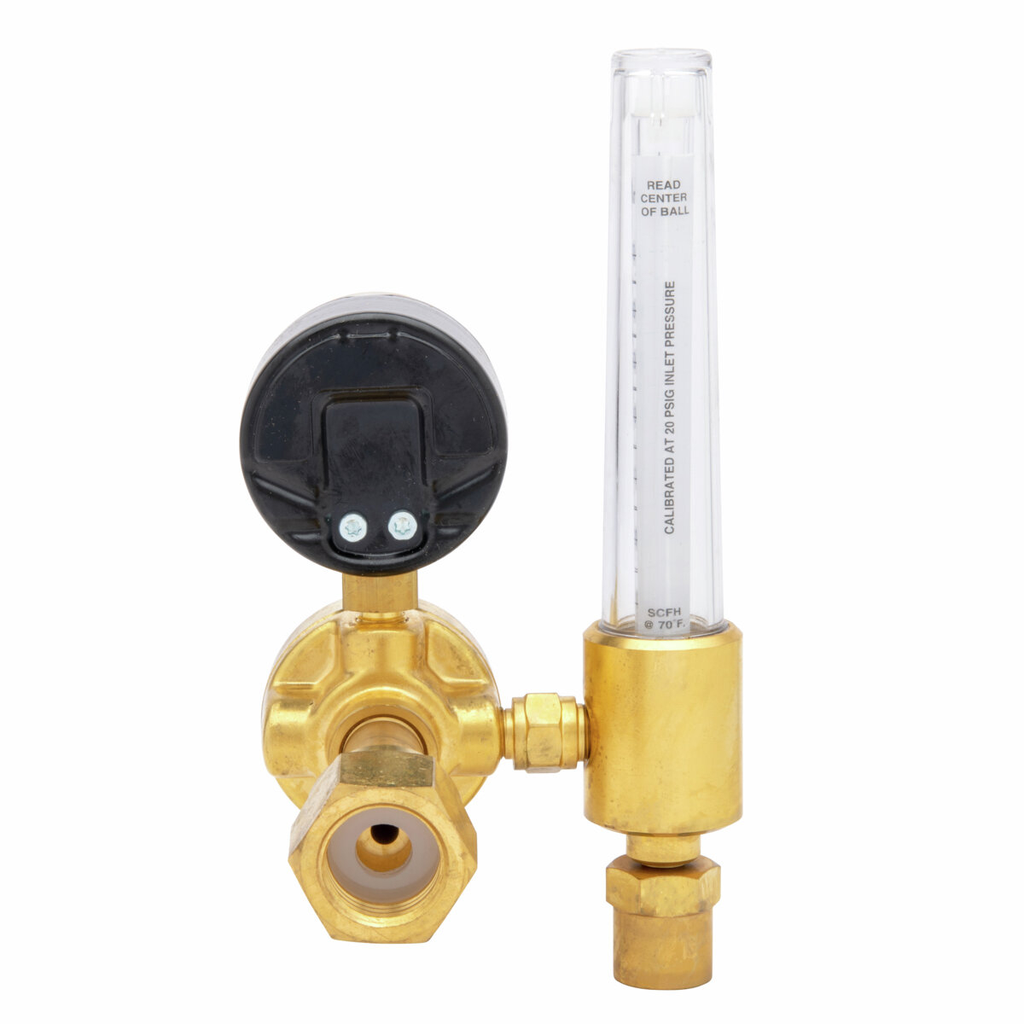

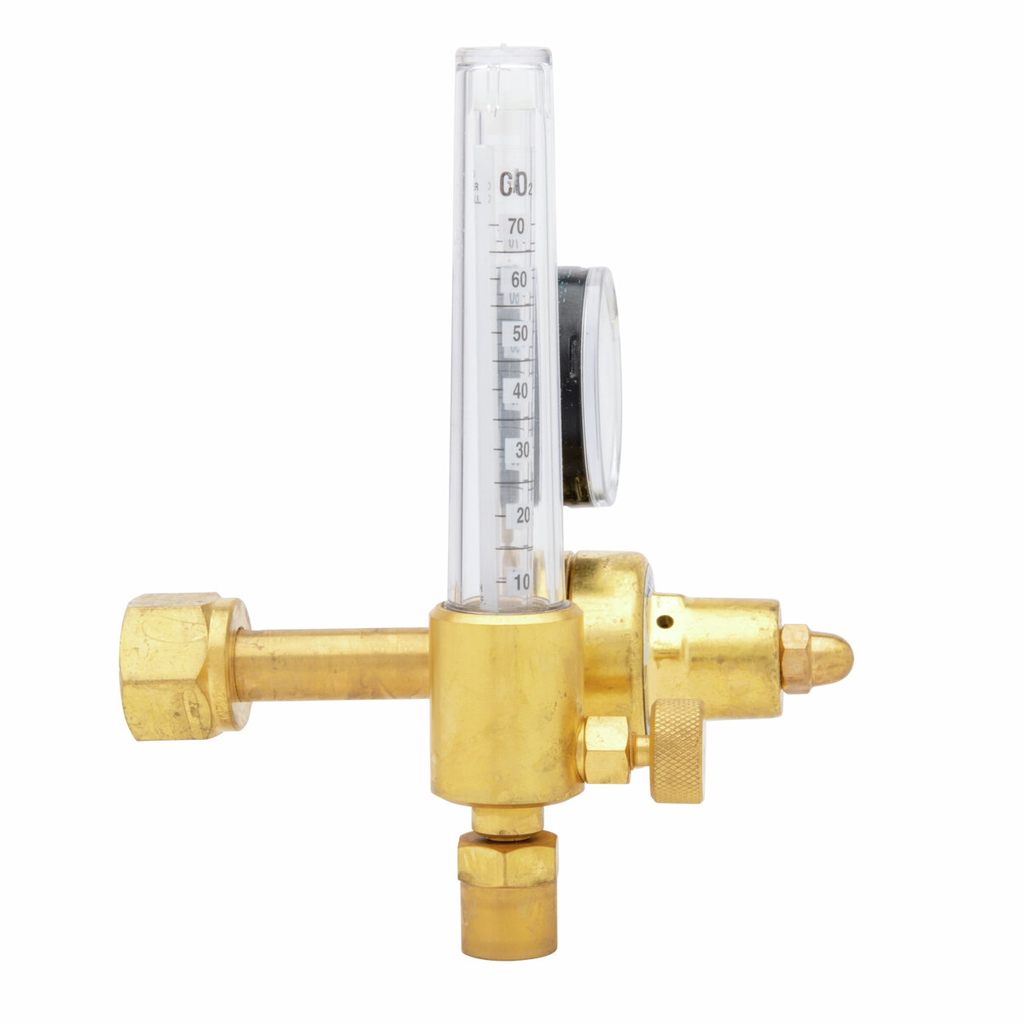

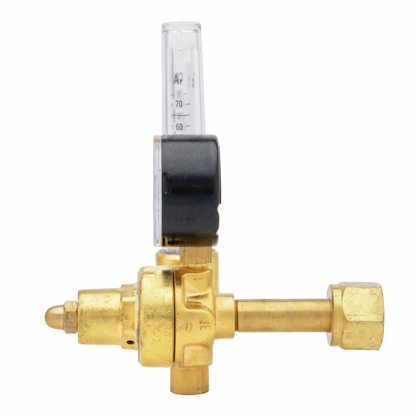

Model 601 flowmeter is designed to be compact and economical, but with features typically available in more expensive regulators. It is used where weight, cost and size are factors. The flowmeter includes a sensitive needle valve for finger-tip control and durable, easy-to-read, flow tube and cover. The regulator features a forged brass body, 50mm steel dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. The outlet connection is 5/8" - 18" RH (F).

Features

• 50mm Steel dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Forged brass body and bonnet for longer service life
• Regulator is compensated at 20 PSIG
• Neoprene diaphragm for better pressure control
• Economical, compensated flowmeter regulator for carbon dioxide
• Provides accurate flow-control to 70 SCFH
• Durable cover and easy-to-read flow tube

• Flow Capacity: 70 SCFH
• Pressure Compensation: 20 PSIG
• Gauge Size: 50 mm
• Outlet Connection: 5/8 in - 18 RH (F)
• Weight: 3.1 lbs
• Body Material: Forged Brass
• Bonnet Material: Forged Brass
• Gauge Material: Steel
• Seat Material: PTFE Teflon
• Seat Design: One-piece encapsulated with internal filter
• Diaphragm Material: Neoprene
