Harris Products Group, 3003547, High Flow Manifold Regulator, 1/2 in. NPT, 1/4 in. NPT, Brass, Neoprene Diaphragm

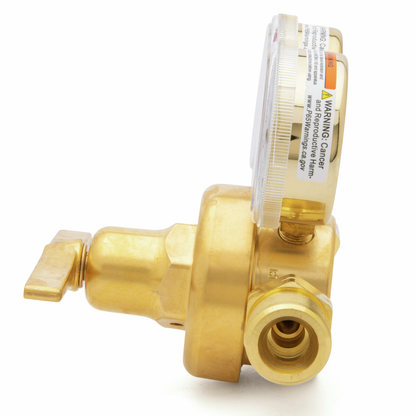

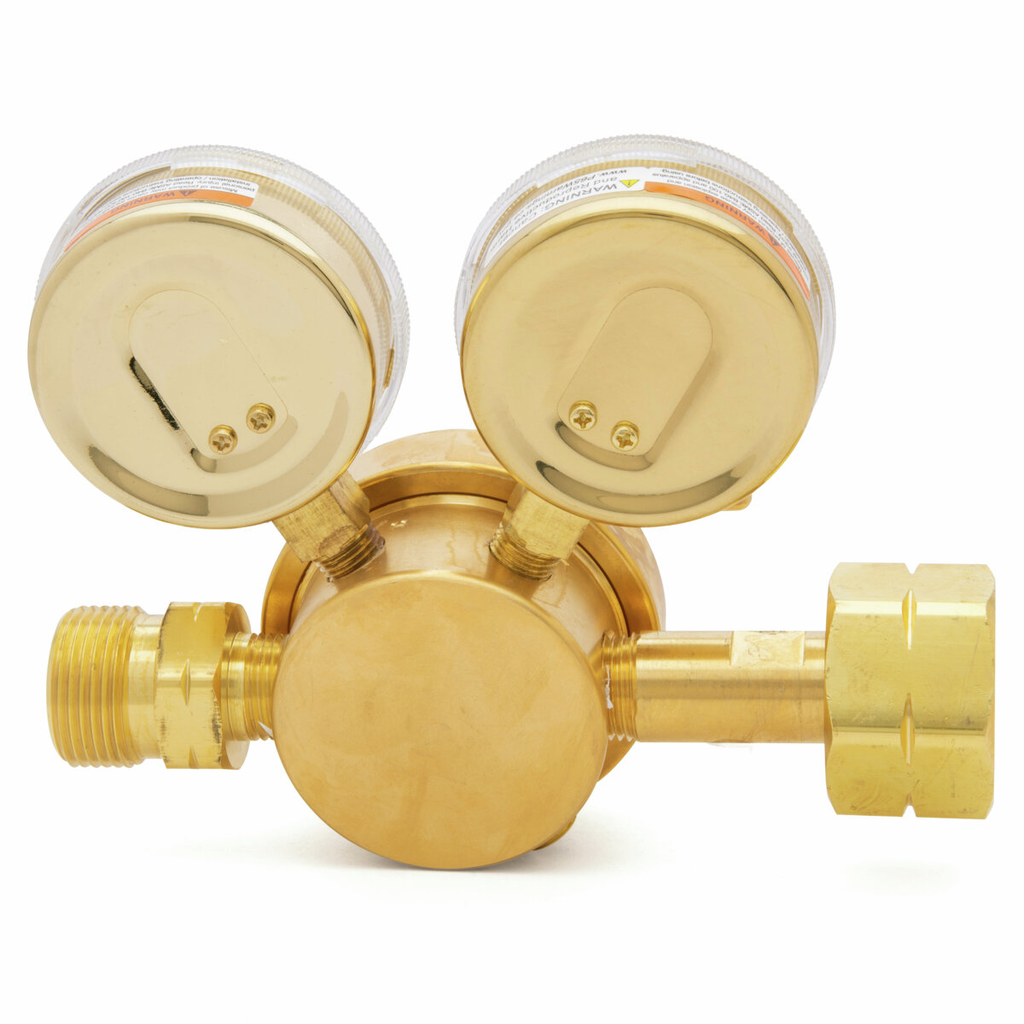

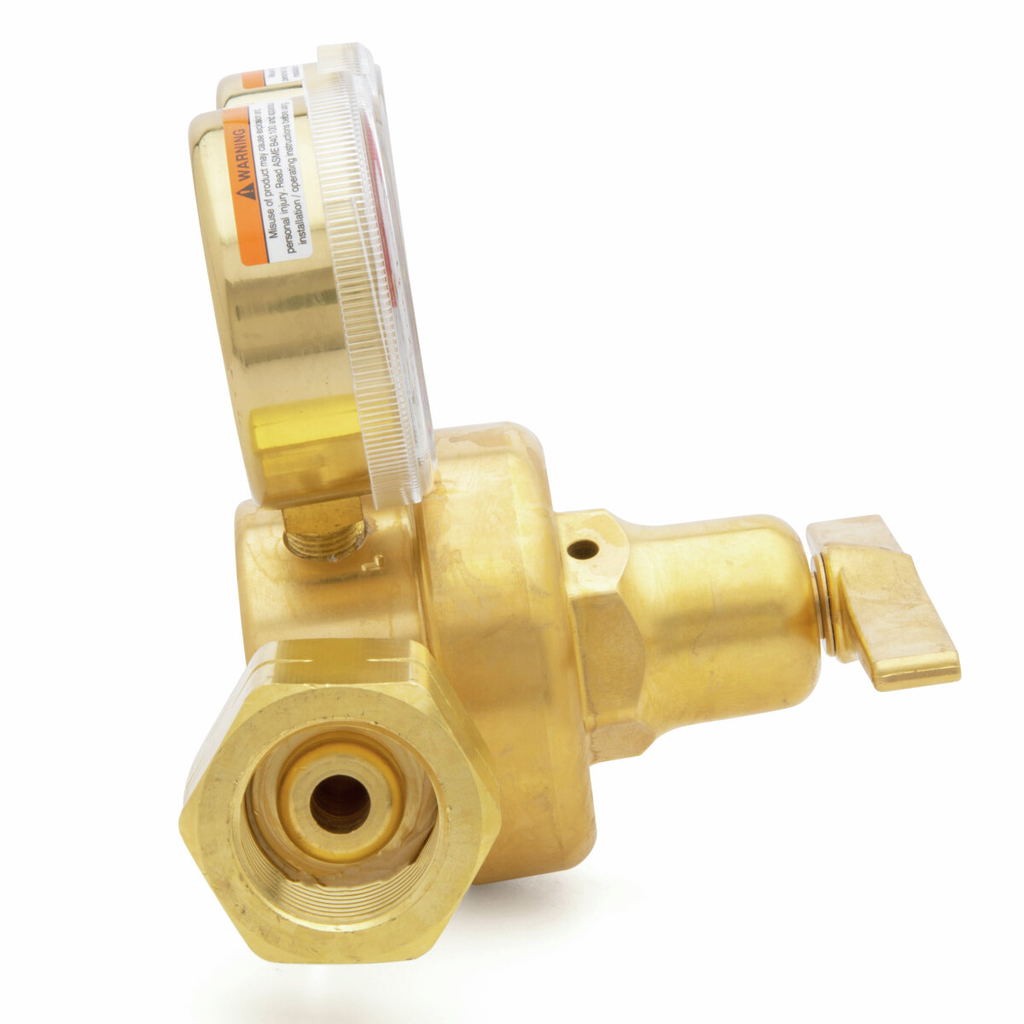

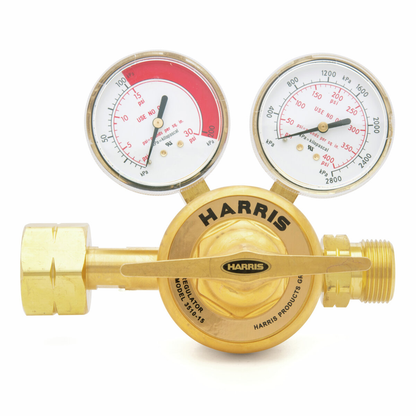

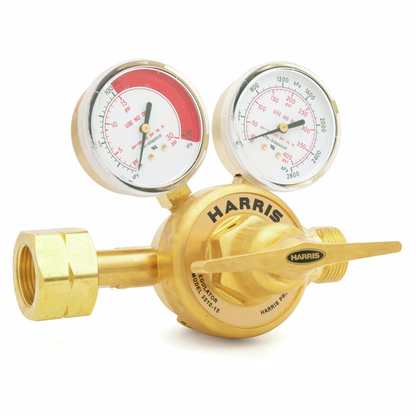

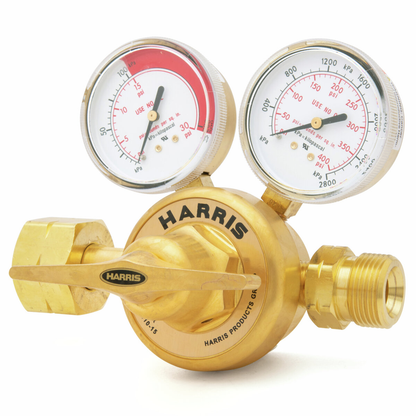

Model 3510 is a heavy-duty high flow manifold regulator equipped with inlet and outlet connections required on Harris manifold systems. The body ports are 1/2 in. NPT for direct mounting in piping systems. The 3510 features both 1/4 in. NPT high-pressure and 1/4 in. NPT low-pressure ports. It features a brass body, bonnet, T-screw bar handle, 2.5 in. brass dual scale gauges and a neoprene diaphragm. Model 3510 is equipped with a tamper-proof, self-reseating, high-pressure internal safety relief valve. This model is not for use with high pressure cylinder gases, such as CGAs 996(RH) and 997(LH),

Features

• 2.5 in. Brass dual scale easy-to-read gauges
• Neoprene diaphragm for greater sensitivity and improved pressure control
• Features 1/4 in. NPT high-pressure and 1/4 in. NPT low-pressure ports
• The body ports are 1/2 in. NPT for direct mounting in piping systems
• High flow manifold regulator
• Equipped with inlet and outlet connections
• Easy-to-operate brass T-screw bar adjusting handle
• Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
• One-piece encapsulated seat design with internal filter to protect the neoprene seat from particulate contamination
• Brass body and bonnet for longer service life

• Weight: 7 lbs
• Gauge Size: 2.5 in
• High-Pressure Port Size: 1/4 in. NPT
• Low-Pressure Port Size: 1/4 in. NPT
• Body Port Size: 1/2 in. NPT
• Gauge Type: Dual scale
• Regulator Type: Single-stage high flow
• Gauge Material: Brass
• Diaphragm Material: Neoprene
• Body Material: Brass
• Bonnet Material: Brass
• Handle Type: Brass T-screw bar
• Seat Design: One-piece encapsulated with internal filter
• Safety Valve: Tamper-proof, self-reseating, high-pressure internal relief
• Country of Origin: United States
