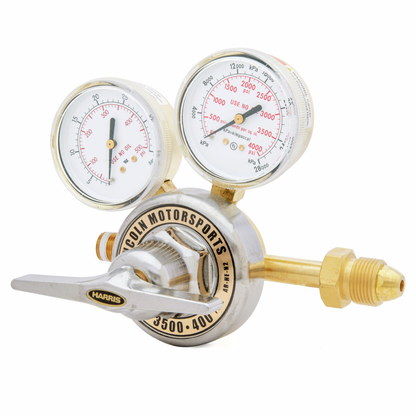

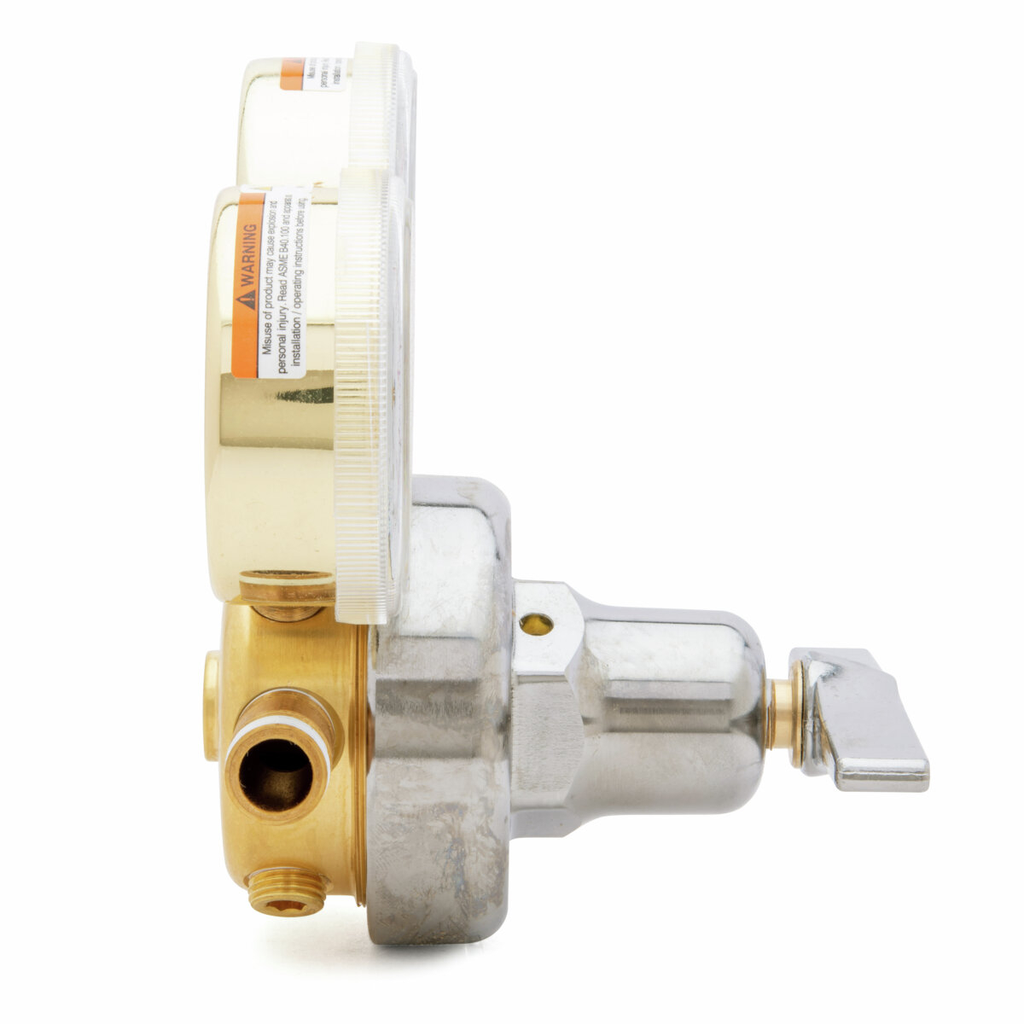

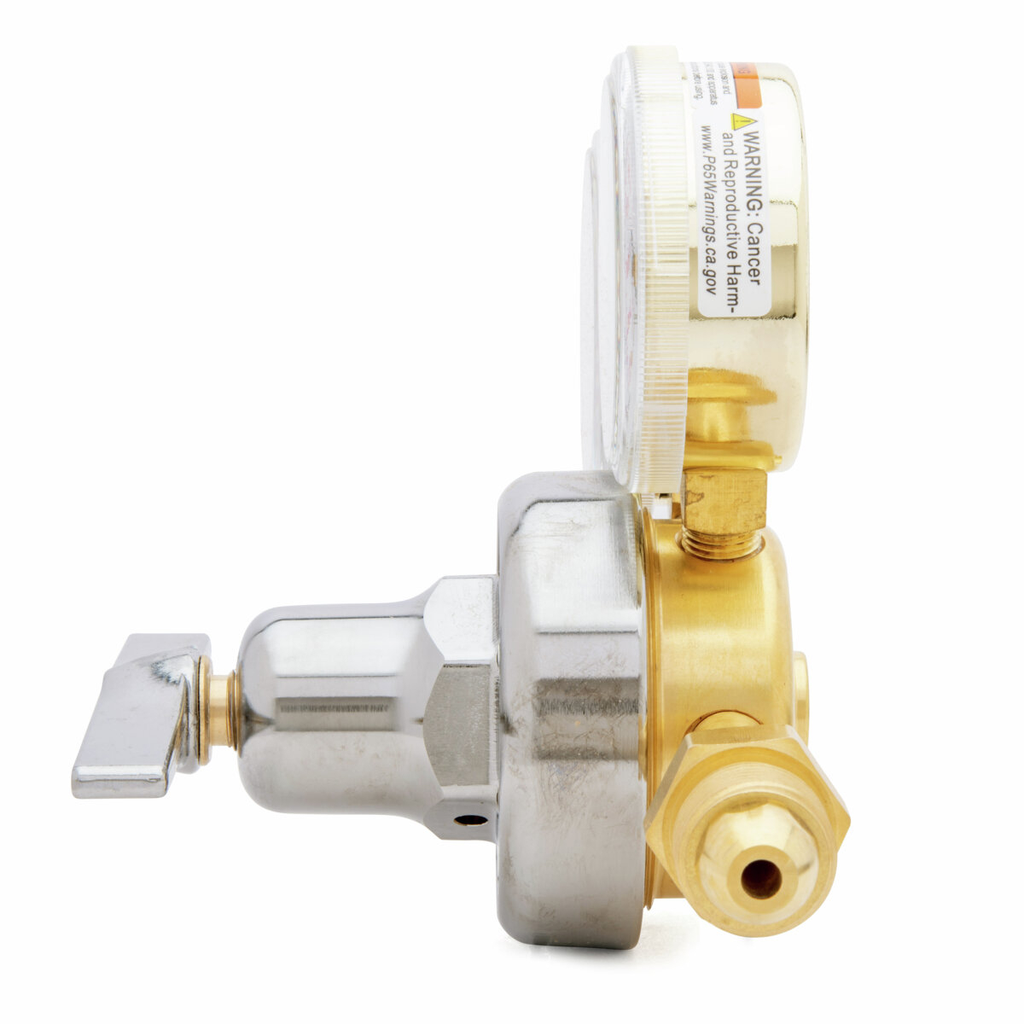

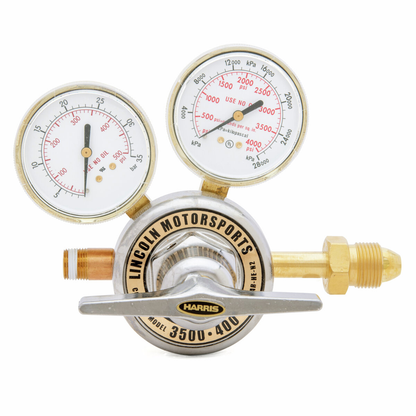

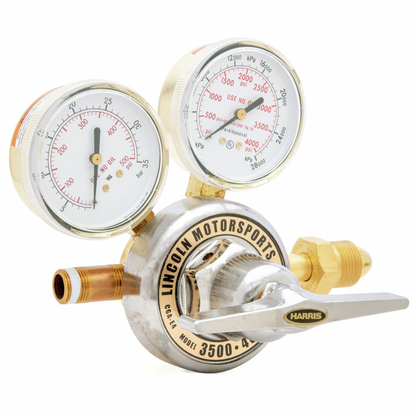

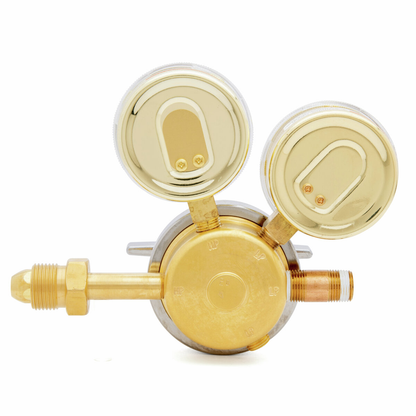

Harris Products Group, 3003538, Manifold Regulator, High Pressure, 3000 PSIG, Dual Outlet Ports, 1/4 in. NPT (F)

Model 3500 high-pressure, high-flow regulator is ideal for wheel guns used in NASCAR®, IRL® and CART® racing. It is specifically designed to provide high gas flows from cylinders and to supply manifold gas systems. It features a 1/4 in. NPT(F) auxiliary delivery port.

Features

• One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F® seat from particulate contamination
• Large 2.75 in. Neoprene diaphragm for greater sensitivity and improved pressure control
• Features 1/4 in. NPT (F) auxiliary delivery port
• Easy-to-operate electroless nickel-plated brass T-screw bar adjusting handle
• Designed for integral pit jack systems common in IRL® and CART® vehicles and ideal for wheel guns used in NASCAR®, IRL® and CART® racing.
• Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
• Operates on high pressure cylinders up to 3000 PSIG
• Electroless nickel-plated brass bonnet and brass body for longer service life
• Equipped with dual outlet ports
• 2.5 in. Brass dual scale easy-to-read gauges

• Pressure Rating: 3000 PSIG
• Auxiliary Port Size: 1/4 in NPT (F)
• Diaphragm Size: 2.75 in
• Gauge Size: 2.5 in
• Weight: 5.3 lbs
• Material: Electroless nickel-plated brass, Brass, Neoprene, CTFE Kel-F
