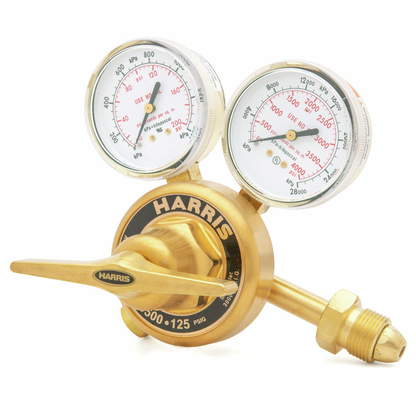

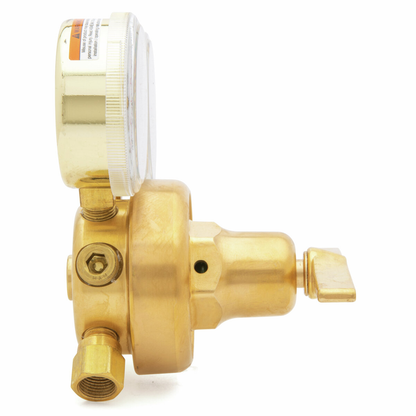

Harris Products Group, 3003516, Pressure Regulator, High-Pressure, Brass, 5500 PSIG, Dual Outlet, 3/8 in. NPT

Model 3500 high-pressure, high-flow regulator is specifically designed to provide high gas flows from cylinders and to supply manifold gas systems. It is also ideal for special high-flow cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

• Brass body and bonnet for longer service life
• Easy-to-operate brass T-screw bar adjusting handle
• One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F® seat from particulate contamination
• Ideal for special high flow cylinder applications
• Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
• 2.5 in. Brass dual scale easy-to-read gauges
• Equipped with dual outlet ports
• Operates on high pressure cylinders up to 5500 PSIG
• Large 2.75 in. Neoprene diaphragm for greater sensitivity and improved pressure control
• Features 3/8 in. NPT outlet connection auxiliary port

• Pressure Rating: 5500 PSIG
• Gauge Size: 2.5 in
• Diaphragm Size: 2.75 in
• Outlet Connection: 3/8 in NPT
• Stage: Single-Stage
• Ports: Dual outlet
• Weight: 5.3 lbs
• Material: Brass, Neoprene
