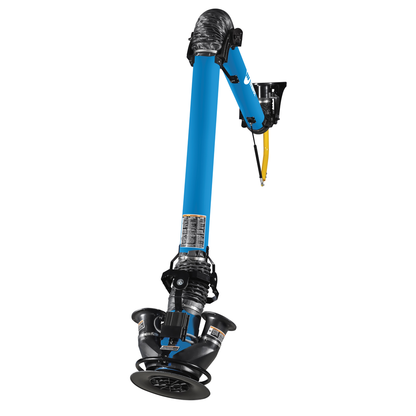

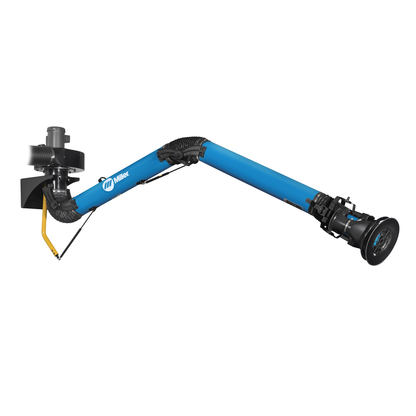

Miller Electric FILTAIR 6 in. x 12 ft. ZoneFlowTM Fume Extraction Arm - 951811

Pre-assembled, easy to operate fume extraction arm featuring ZoneFlow™ technology, which creates a 5 ft. capture zone which is 3x larger than existing source-capture products minimizing arm interactions. This arm is designed to be mounted to a wall, pedestal or column. For a complete weld fume capturing solution, connect to the FILTAIR® SWX or Centralized system or competitive equipment.

Features

• Arm with external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Extraction arms are available in 10- or 12-foot lengths.

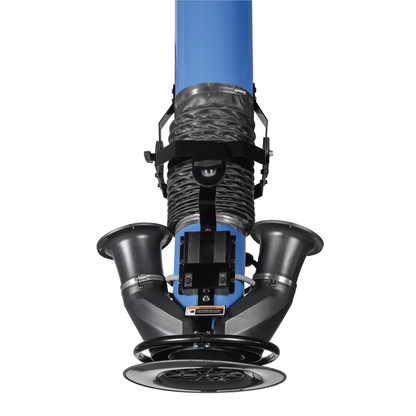

• Creates a negative pressure zone that funnels air to the center of the arm from greater distances, up to 5 feet away. Both the Capture 5 extraction arm and machine are needed for these results (arm sold separately).
• High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.
• With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.
• Keep both sides of the fans turned on for a 360 degree capture zone or turn one side off to position next to a wall or curtain for a 180 degree capture zone.

Includes

• 6 in. diam. x 10 ft. ZoneFlow fume extraction arm

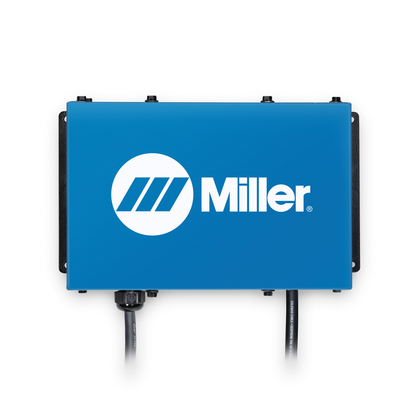

• ZoneFlow motor control box

• Airflow: 1200 cfm
• Minimum Extraction: 875 cfm
• Diameter: 6 in
• Length: 12 ft
• Capture Zone Distance: 5 ft
• Capture Zone Size: 3x larger than traditional
• Country of Origin: United States
