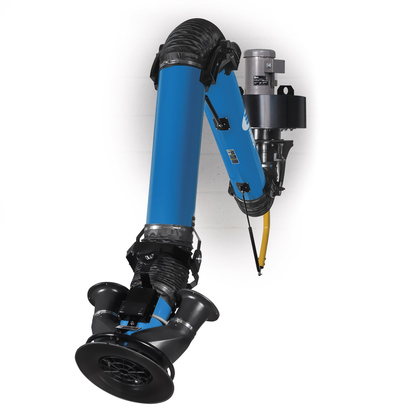

Miller Electric FILTAIR SWX Dual-Arm Add-On Package, 10 ft. ZoneFlowTM Fume Extraction Arm - 951762

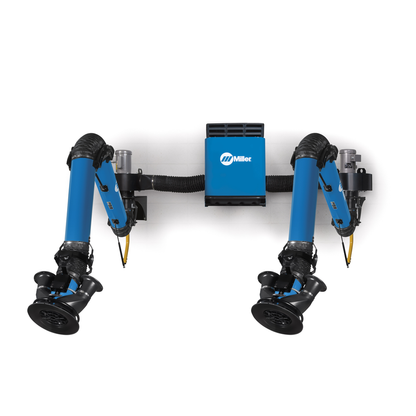

8 inch diameter x 10 ft. ZoneFlow™ arm add-on for single-arm SWX system packages. Creates a dual arm solution to solve various workstation and training booth fume extraction challenges.

Does Not Include

• 115 V wiring not included

Includes

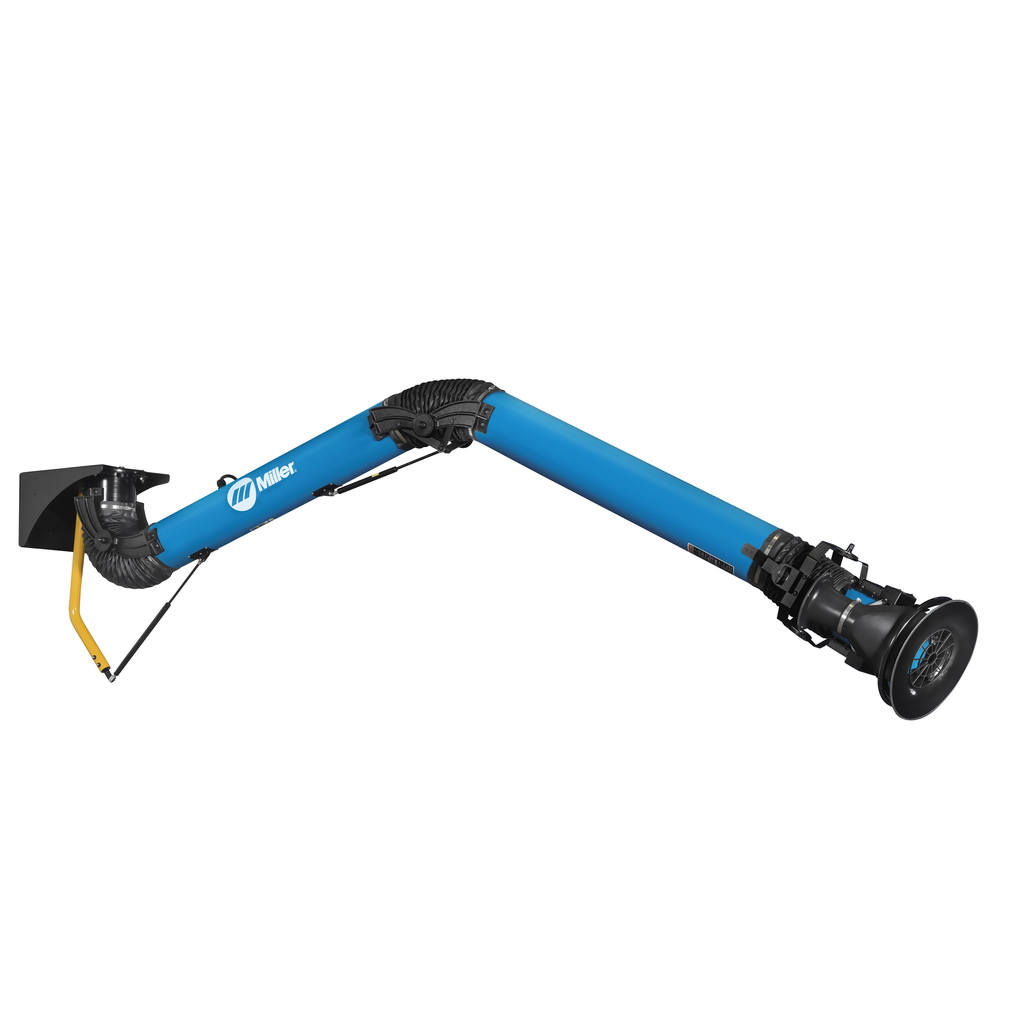

• 8 in. diam. x 10 ft. ZoneFlow fume extraction arm
• Backdraft dampers
• 115 V blower
• 115 V on/off control box

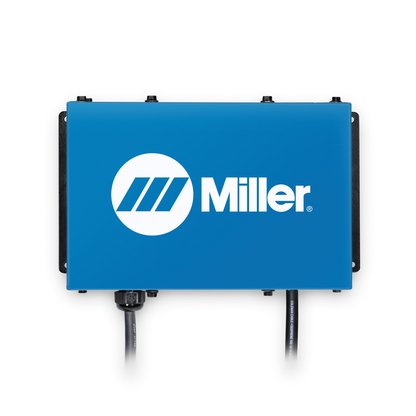

• ZoneFlow motor control box
• Flexible duct (7 x 37 in.)
• Mounting bracket for blower/arm

Features

• High-performance fan generates 1,200 cfm and creates an Accu-Rated minimum of 875 cfm extraction at the hood to better capture weld fumes and provide a cleaner environment.
• With a capture zone that is 3 times larger than traditional systems, users have less interaction with the arm, increasing arc-on time and productivity.
• Arm with external adjustments so air can pass through with less airflow resistance, giving you stronger CFM (airflow). It offers reliable and accurate positioning across the full range of motion of the arm, as well as easy adjustment and maintenance to ensure long-lasting operation. Extraction arms are available in 10- or 12-foot lengths.

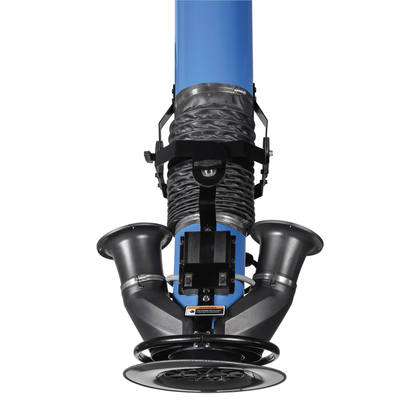

• Keep both sides of the fans turned on for a 360 degree capture zone or turn one side off to position next to a wall or curtain for a 180 degree capture zone.
• Creates a negative pressure zone that funnels air to the center of the arm from greater distances, up to 5 feet away. Both the Capture 5 extraction arm and machine are needed for these results (arm sold separately).

• Nominal Air Flow: 875 cfm
• Extraction Arm Length: 10 ft
• Diameter: 8 in
• Fan Airflow: 1,200 cfm
• Minimum Extraction Airflow: 875 cfm
• Capture Zone: 360 degree or 180 degree adjustable
• Duct Size: 7 x 37 in
• Filter Media: 490 ft2
• Filter Media Secondary: 45.52 ft2
• Country of Origin: United States
