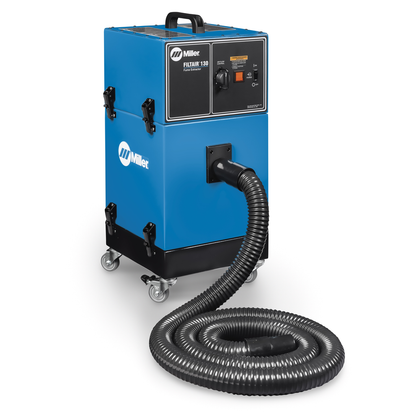

Miller Electric FILTAIR 130 Portable Fume Extractor - 300595

Portable fume extraction system designed specifically for welding. This system is ideal for contractors, maintenance and repair, and light fabrication.

Includes

• FilTek XL Filter
• 20-ft. Power Cord
• 8-ft. Extraction Hose
• Portable Fume Extractor

Features

• Particulate bin provides easy and convenient access to empty the collected weld fume particulate.
• Filters are rated on a MERV scale, which measures filter efficiency based on particle count. MERV ratings range from 1-16, with 16 being the best at filtering small particles-such as those found in weld fumes.

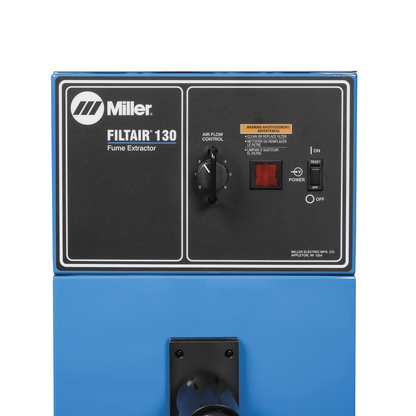

• Front-panel-mounted air flow adjustment makes it easy to set the proper amount of extraction when using a funnel nozzle, slotted nozzle, or Bernard™ fume extraction gun.
• At only 46 pounds (21 kg), the vertical-shaped extraction machine is easy to move around, or be at your side in a workbasket.
• The FILTAIR® 130 is quiet to provide a safer and more productive work area. At up to 70 percent quieter than some other extractors, the FILTAIR® 130 is only 68.5 dB at 5 feet (1.5m).
• FilTek XL surface-loading filter is manually cleanable with dry compressed air, extending its life up to eight times that of conventional filters. Benefits include lower cost of operation and eliminates the need to send extra filters to most jobsites.
• Filter service indicator alerts the operator when the filter needs to be cleaned to maintain extraction performance and increase filter life.
• FilTek XL Filter Technology is specifically designed for welding fumes. This technology offers a longer filter life - up to 2 times that of treated cellulous filters and superior filtering of up to 95% of weld fume particulate.

Does Not Include

• Capture Nozzel Attachment

• Voltage: 110/115/120 V
• Motor HP: 1
• Input Phase: 1-Phase
• Frequency: 60 Hz
• Input Amperage: 11 A
• Nominal Air Flow: 132 CFM
• Sound Level: 68.5 dB at 5 ft
• Number of Arcs: 1
• Length: 12 in.
• Width: 12 in.
• Height: 23 in.
• Weight: 46 lb (21 kg)
• Power Cord Length: 20 ft
• Extraction Hose Length: 8 ft
• Filter Technology: FilTek XL
• Filter Efficiency: Up to 95% weld fume particulate
• Filter Life: Up to 8 times conventional filters
• MERV Rating: 16
• Country of Origin: United States
