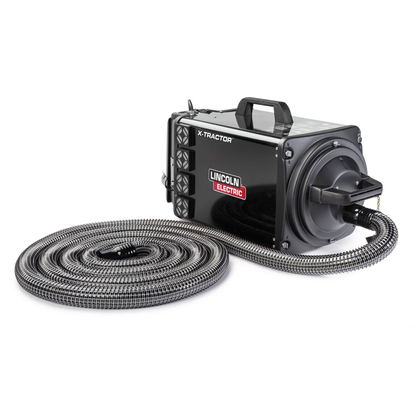

Lincoln Electric, K652-2, Fume Extractor, 9A, 120V, 1 Phase, 1 Gun Control, 16 ft Hose

PORTABLE WELDING FUME EXTRACTOR Lincoln Electric’s X-Tractor® 1 Fume gun is a high vacuum extraction system designed for the removal and filtration of welding fume. The 1GC is a great choice for fume removal on the light duty welding applications typically found in shops or companies with a small number of welding stations. The compact size and light weight of the X-Tractor® 1GC make the unit easy to move to where it’s needed. Economical fume movement and ventilation option. Easily disassemble the unit for cleaning and maintenance. Maximum extraction distance up to 33 ft. (10 m). Quiet operation.

Features

• Two fan speeds
• Automatic Start/Stop Sensor
• Quiet Operation
• Manually-operated Filter Cleaning System
• Simple to Configure

What's Included?

• Filter cartridge (KP2069-1), . Flexible Hose - 16 ft. (5.0m) long x 1-3/4 in. (45mm) I.D. . Two Hose-to-Tube Adapters:, 1-3/4 in. (45 mm) to 2 in. (50 mm) , . 1-3/4 in. (45 mm) to 1-1/2 in. (38 mm), . . Two spare sets of motor brushes, . 12 ft. (3.6m) power cord.

• Input Current: 9A
• Input Voltage: 120V Single Phase 50/60 Hz
• Dimensions: 13.4 x 26.8 x 15.8 in (340 x 680 x 400 mm)
• Weight: 37 lbs (17 kg)
• Hose Length: 16 ft (5 m)
• Hose Diameter: 1-3/4 in (45 mm)
• Maximum Extraction Distance: 33 ft (10 m)
• Power Cord Length: 12 ft (3.6 m)
• Noise Level: 74 dBA @ 1 m
• Filter Type: Cartridge (KP2069-1)
• Filter Cleaning System: Manually-operated rotary air jet
• Fan Speeds: Two
• Sensor Type: Automatic Start/Stop
• Material of Hose: Flexible, spring steel reinforced
• Country of Origin: Multi Country
• Warranty Length: 3 Years
• Product Type: X-Tractor
• Style: 1 Gun Control
• Base Number: K652
