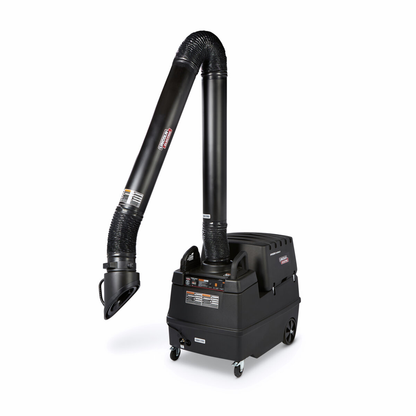

Lincoln Electric, K4384-7, Fume Extractor, Portable, MERV 16; 750 CFM, 13 ft Arm, Low Vac

FUMES DON’ T STAND A CHANCE The Prism Mobile with Mechanized Cleaning is a low vacuum systems for welding fume extraction and filtration. Their size and mobility make them ideal for smaller manufacturing facilities that require light to medium duty welding fume extraction in variable locations. Not suitable for use with cutting or arc gouging operations. FEATURES Generous Airflow: 735 CFM with flexible 10 & 13 Ft. extraction arm. CFM level is dependent upon arm length; fan type and system maintenance. Internal spark arrestor: Functions as a pre-filter for larger sized particulate. Prevents sparks from reaching the filter. Optimal motion and reach for work area: Choose from a variety of extraction arm models or select a hose/hood set. RotaPulse® automatic filter cleaning system reduces maintenance. BENEFITS Cleaner work environment: Reduce dust and dirt in operator and surrounding work areas. Filter size: Larger surface area requires fewer changes; helping to lower operational costs. Extraction Arms: Allow for optimal motion and reach for multiple work areas. Front casters and rear wheels: Provide ideal mobility and positioning. IDEALLY USED FOR : Small Manufacturing Facilities. Schools/Training. Fabrication. Plant Maintenance and Repair.

Features

• Filter Cleaning - RotaPulse automatic filter cleaning system
• Made in U.S.A. of U.S. and foreign content
• Internal Spark Arrestor - Functions as a pre-filter for larger sized particulate, which prevents sparks from reaching the filter.
• Extended Filter Life - Main filter lasts up to 4 times as long as Prism Mobile w/o cleaning
• Generous Airflow - 750 CFM with a flexibile extraction arm. CFM level is dependent upon arm length; fan type and system maintenance.

What's Included?

• (1) Prism Mobile, (1) KP1653-5 MERV 16 Filter, (1) Plastic Housing, (1) Flexible Hose 2 ft (0.6 m), (1) K2633-7 Fume Extraction Arm 13 ft (4 m)

• Airflow: 750 CFM
• Input Voltage: 120 V
• Input Current: 7.6 A
• Input Phase: 1
• Input Hertz: 60 Hz
• Extraction Arm Length: 13 ft (4 m)
• Dimensions: 40 x 32 x 48 in (1020 x 810 x 1210 mm)
• Net Weight: 220 lbs (99.7 kg)
• Filter Type: MERV 16 High-Efficiency with Nano Fibers
• Filter Cleaning System: RotaPulse automatic filter cleaning
• Spark Arrestor: Internal pre-filter
• Hose Length: 2 ft (0.6 m)
• High Vac or Low Vac: Low Vac
• Product Type: Mobiflex
• Style: Portable
• Warranty Length: 3 Years
• Country of Origin: Multi Country
