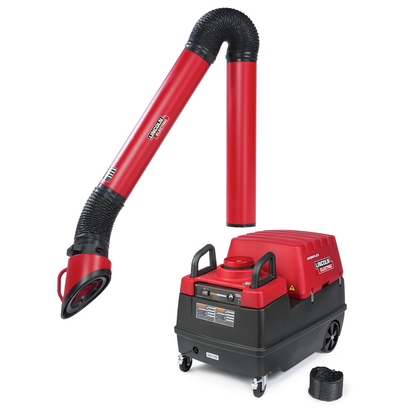

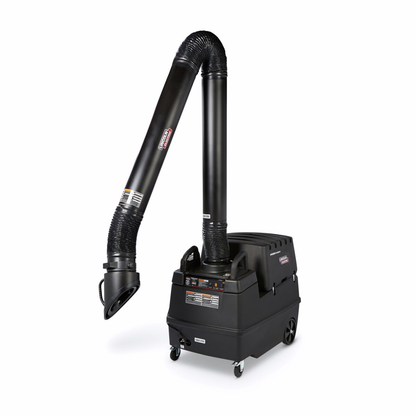

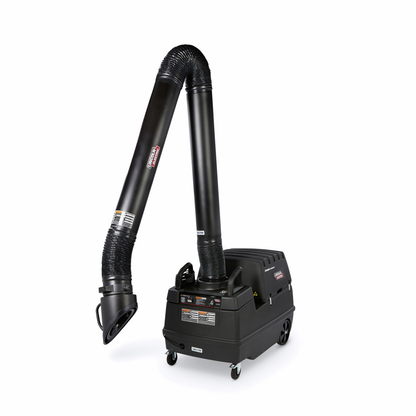

Lincoln Electric, K4259-4, Mobile Fume Extractor, 750 CFM, MERV 14, 13 ft Arm, Portable

FUMES DON’T STAND A CHANCE. The Prism Mobile product family are low vacuum systems for welding fume extraction and filtration. The Prism Mobile helps reduce dust and dirt in operator and surrounding work areas for a cleaner work environment. Their size and mobility make them ideal for smaller manufacturing facilities that require light to medium duty welding fume extraction in variable locations such as small manufacturing facilities, maintenance and repair, and training schools. Not suitable for use with cutting or arc gouging operations.

Features

• Generous Airflow - 750 CFM with a flexibile extraction arm. CFM level is dependent upon arm length; fan type and system maintenance.
• Internal Spark Arrestor - Functions as a pre-filter for larger sized particulate, which prevents sparks from reaching the filter.
• Filter Status Indicator - Visual guide to remaining filter life.
• Optimal Motion and Reach for Work Area - Choose from a variety of extraction arm models or select a hose/hood set.
• Large Surface Area Filter - Minimizes changeovers and lower operational costs.
• Front Casters and Rear Wheels - Provide ideal mobility and positioning.

What's Included?

• (1) Prism Mobile, (1) KP1653-4 MERV 14 Filter, (1) Plastic Housing, (1) Flexible Hose 2 ft (0.6 m), (1) K2633-7 Fume Extraction Arm 13 ft (4 m)

• Input Voltage: 120 V
• Input Frequency: 60 Hz
• Input Current: 6.1 A
• Input Phase: Single Phase
• Airflow: 750 CFM
• Filter Type: MERV 14
• Filter Area: 538 ft2 (50 m2)
• Arm Length: 13 ft (4 m)
• Height: 36 in (900 mm)
• Width: 32 in (810 mm)
• Depth: 48 in (1210 mm)
• Input Voltage Type: Single
• Vacuum Type: Low Vacuum
• Weight: 200 lbs (90.7 kg)
• Mobility: Front casters and rear wheels
• Pre-Filter: Internal Spark Arrestor
• Country of Origin: United States
• Style: Portable
• Warranty Length: 3 Years
