Lincoln Electric, K3681-2, Weld Fume Extractor, Wall Mount, Dual Arm, MERV 16, Max Reach 27 ft, 910 mm Depth, 860 mm Width

FUMES DON’T STAND A CHANCE The Prism Wall Mount with mechanized cleaning units are stationary; wall-mounted low vacuum systems intended for heavy duty extraction and filtration of welding fume. Ideal for job shops; welding schools and maintenance departments; the Prism Wall Mount with mechanized cleaning is designed for facilities with fixed work stations and limited floor space. Reduction of dust and dirt in operator work environment. Generously sized filters allow for lower operational costs. FEATURES Generous Airflow: Dual Arm: 1200 CFM with flexible 10 Ft. or 13 Ft. extraction arms and Prism 2400 1 HP fan. . Spark Arrestor: Functions as a pre-filter for larger-sized particulate and also deadens sparks. Pleated filter structure. Filter capacity: 568 ft² (52 m² ).

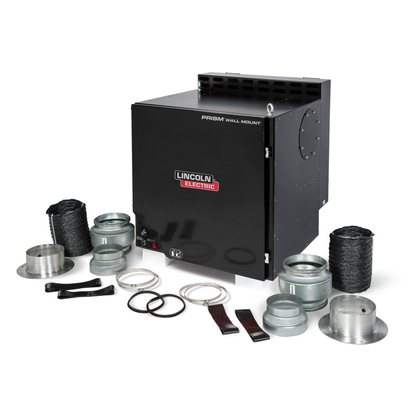

What's Included?

• 59 in. long) (Qty 2) . Hose clamps (Qty 4) . Non-return valves (Qty 2) . Reducers (Qty 2) . Inlet flanges (Qty 2) . Sealing rings (Qty 2) . Rubber sealing bands (Qty 4) .

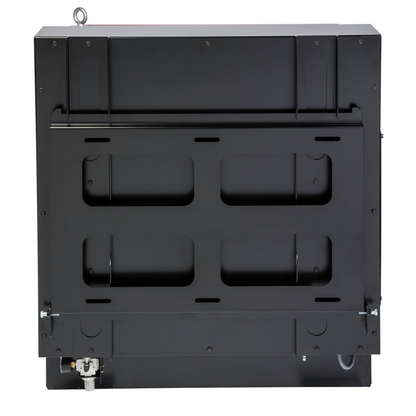

• Base unit w/MERV 16 filter. Wall mounting bracket. Hoses (8 in. diameter

Features

• Front loading filters for ease of access
• Dual arm capacity with optional extended reach up to 27 ft.

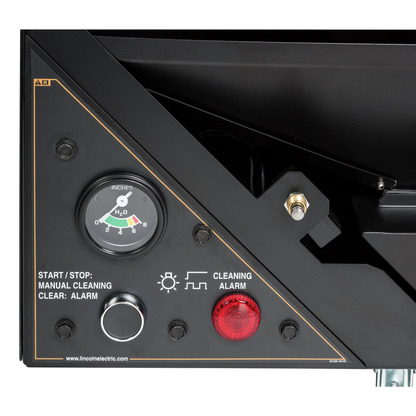

• Air pressure gauge indicates when filters need replaced
• Self-cleaning filters cut down on filter replacement costs
• Integrated Spark Arrestor

• Airflow: 1200 CFM
• Fan Power: 1 HP
• Input Voltage Type: Multiple
• Input Hertz: 60 Hz
• Input Phase: 1Ph; 3Ph; 1Ph/3Ph
• High Vac or Low Vac: Low Vac
• Extraction Arm Length: 10 ft, 13 ft
• Extended Reach: Up to 27 ft
• Arm Configuration: Dual Arm
• Style: Wall Mount
• Mounting Type: Wall Mount
• Base Unit Dimensions: 38 x 34 x 36 in (970 x 860 x 910 mm)
• Height: 38 in (970 mm)
• Width: 34 in (860 mm)
• Depth: 36 in (910 mm)
• Base Unit Weight: 290 lb (131 kg)
• Filter Type: MERV 16 NANO Coated Cellulose
• Filter Access: Front Loading
• Country of Origin: United States
• Warranty Length: 3 Years
