Lincoln Electric, K3681-1, Wall Mount Fume Extractor, MERV 16; 1 Ph/3 Ph; Low Vac; 34 in x 38 in x 36 in

FUMES DON’T STAND A CHANCE The Prism Wall Mount with Mechanized cleaning units are stationary; wall-mounted low vacuum systems intended for heavy duty extraction and filtration of welding fume. Ideal for job shops; welding schools and maintenance departments; the Prism Wall Mount with Mechanized cleaning is designed for facilities with fixed work stations and limited floor space. Flexible single arm configuration to meet application requirements. Reduction of dust and dirt in operator work environment. Generously sized filters allow for lower operational costs. FEATURES Generous Airflow: Single Arm: 735 CFM for flexible 10 Ft. or 13 Ft. extraction arms and Prism 2400 1 HP fan. . Spark Arrestor: Functions as a pre-filter for larger-sized particulate and also deadens sparks. Pleated filter structure. Filter capacity: 568 ft² (52 m² ).

Features

• Air pressure gauge indicates when filters need replaced
• Integrated Spark Arrestor
• Front loading filters for ease of access
• Self-cleaning filters cut down on filter replacement costs

What's Included?

• 59 in. long) . Hose clamps (Qty 2) . Reducer. Inlet flange. Sealing ring. Rubber sealing bands (Qty 2) .

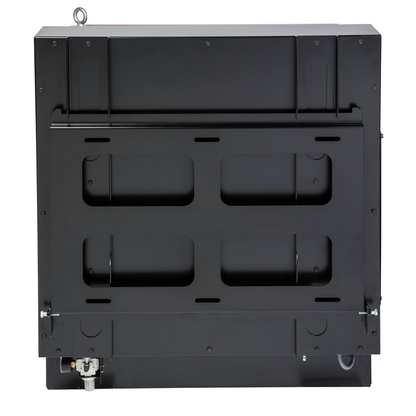

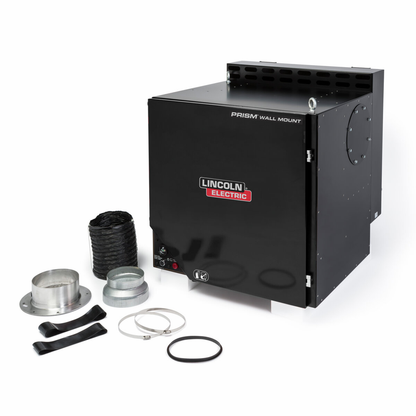

• Base unit w/MERV 16 filter. Wall mounting bracket. Hose (8 in. diameter

• Filter Type: MERV 16 NANO Coated Cellulose
• Airflow: 735 CFM
• Fan Power: 1 HP
• Extraction Arm Length: 10 ft or 13 ft (Flexible)
• Dimensions: 38 x 34 x 36 in (970 x 860 x 910 mm)
• Weight: 270 lb (122 kg)
• Input Voltage: Multiple; 1Ph; 3Ph; 1Ph/3Ph; 60 Hz
• Input Hertz: 60 Hz
• Arm Type: Base Unit Single Arm
• Style: Wall Mount
• High Vac or Low Vac: Low Vac
• Warranty Length: 3 Years
• Country of Origin: United States
• Filter Capacity: 568 ft2 (52 m2)
• Integrated Spark Arrestor: Yes
• Filter Access: Front loading

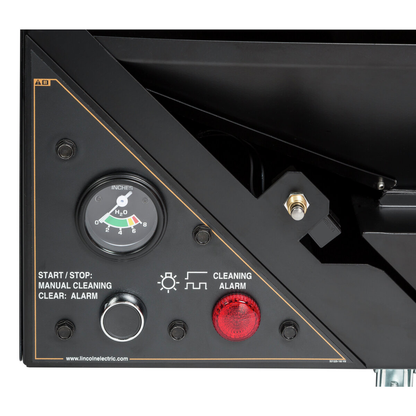

• Pressure Gauge: Differential Pressure Gauge
