Lincoln Electric, K1666-3, Fume Extractor, 1 HP, 765 CFM, Portable, Quiet Operation, 32 ft Reach

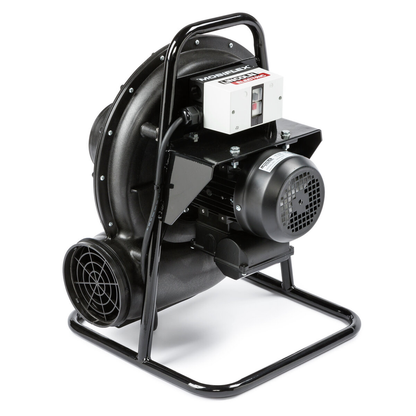

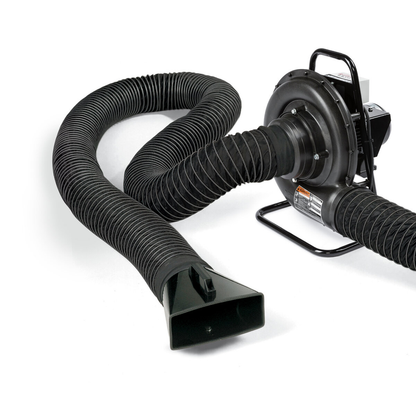

FUMES DON’T STAND A CHANCE The Prism Direct Exhaust Fan is a light weight; welding fume exhaust unit designed to remove welding fumes from air restricted locations. The sturdy handle and base makes the it easy to move and place anywhere on a job site. Extraction Reach - Select hose extensions for a maximum reach up to 32 ft. (9.7 m). Airflow - Additional hose extensions facilitate airflow conditions up to 765 CFM. Quiet Operation - Operates at a sound level of 69dB(A).

Features

• Quiet Operation - Operates at a sound level of 69dB(A)
• Extraction for a maximum reach up to 32 ft. (9.7 m)
• Airflow conditions up to 765 CFM

• Input Voltage: 120V
• Input Current: 7.6A
• Input Phase: 1 Phase
• Motor Power: 1 HP
• Air Flow: 750 CFM
• Dimensions (HxWxD): 23.1 x 18.9 x 18.6 in (587 x 480.4 x 472 mm)
• Weight: 37.5 lb (17 kg)
• Sound Level: 69 dB(A)
• Maximum Extraction Reach: 32 ft (9.7 m)
• High Vac or Low Vac: Low Vac
• Style: Portable
• Product Type: Mobiflex
• Country of Origin: Multi Country
• Input Hertz: 60 Hz
• Warranty Length: 3 Years
