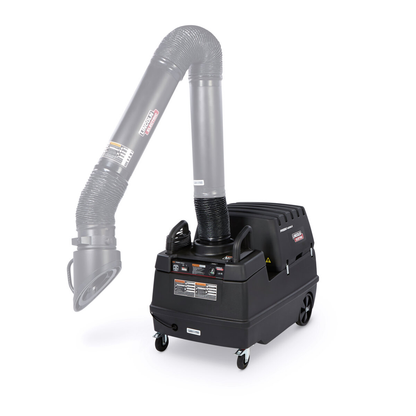

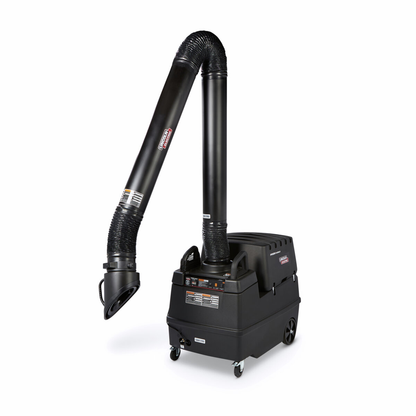

Lincoln Electric, K1653-5, Fume Extractor, MERV 16; 750 CFM, Portable, Low Vacuum

FUMES DON’T STAND A CHANCE. The Prism Mobile product family are low vacuum systems for welding fume extraction and filtration. The Prism Mobile helps reduce dust and dirt in operator and surrounding work areas for a cleaner work environment. Their size and mobility make them ideal for smaller manufacturing facilities that require light to medium duty welding fume extraction in variable locations such as small manufacturing facilities, maintenance and repair, and training schools. Not suitable for use with cutting or arc gouging operations.

Features

• Generous Airflow - 750 CFM with a flexibile extraction arm. CFM level is dependent upon arm length; fan type and system maintenance.
• Internal Spark Arrestor - Functions as a pre-filter for larger sized particulate, which prevents sparks from reaching the filter.
• Front Casters and Rear Wheels - Provide ideal mobility and positioning.
• Large Surface Area Filter - Minimizes changeovers and lower operational costs.
• Filter Status Indicator - Visual guide to remaining filter life.
• Optimal Motion and Reach for Work Area - Choose from a variety of extraction arm models or select a hose/hood set.

What's Included?

• (1) Prism Mobile, (1) KP1653-5 MERV 16 Filter, (1) Plastic Housing, (1) Flexible Hose 2 ft (0.6 m)

• Air Flow: 750 CFM
• Input Voltage: 120V
• Input Phase: 1 Phase
• Input Hertz: 60 Hz
• Input Current: 6.1 A
• Filter Type: MERV 16
• Filter Area: 538 ft2 (50 m2)
• Dimensions: 36 x 32 x 48 in (900 x 810 x 1210 mm)
• Weight: 200 lbs (90.7 kg)
• Vacuum Type: Low Vacuum
• Style: Portable
• Spark Arrestor: Internal, functions as pre-filter
• Country of Origin: United States
