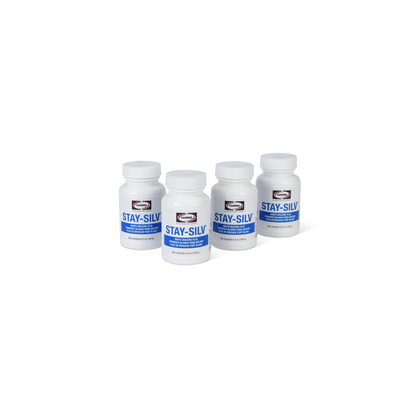

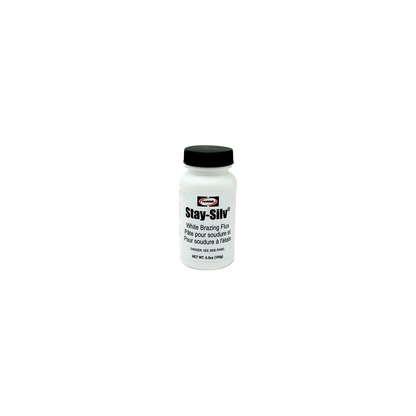

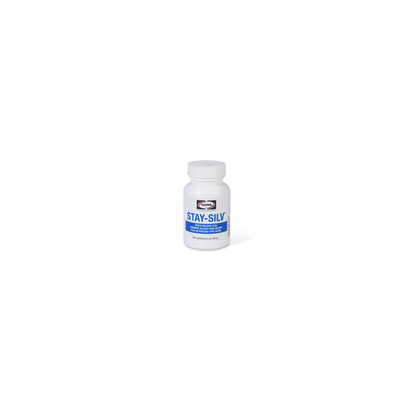

Harris Products Group, SSWF7POP, Brazing Flux, Low-Temperature, Activity 1050°F - 1600°F, Recommended for Copper Alloys, Smooth Application

Stay-Silv® white brazing flux is an all-purpose, low-temperature flux for use in silver brazing. It is formulated to provide smooth flux application, even coverage and excellent protection during braze heating cycles. It can be used with most ferrous and non-ferrous metals other than aluminum, magnesium or titanium. Ideal for silver brazing cast iron, copper, brass, bronze and steel. The flux turns clear (transparent) close the brazing application temperature, an indicator that it is ready to apply braze wire or rod. Post braze flux residue should be removed to avoid potential corrosion. Complies with the EU Reach & RoHS directive.

Features

• Recommended for brazing copper and copper alloys, except aluminum bronze
• Used with many silver brazing filler metals
• Formulated to provide smooth flux application, even coverage and excellent protection during braze heating cycles
• Used on applications requiring normal heat
• Activity range of 1050◦F - 1600◦F (565◦C - 870◦C)
• Used with silver brazing alloys on all metals except aluminum, magnesium, or titanium
• Used for brazing steel, stainless steel, nickel alloys and other ferrous base metals
• Homogeneous brazing flux ideally suited for use with a variety of base metals
• For use with many phosphorus-copper-silver alloys and brazing copper-to-brass
• Complies with AWS A5.31 Class FB3 A; AMS 3410; Federal Spec O-F-499, Type B; EN 1045 Type FH10

• Activity Range: 1050-1600°F (565-870°C)
• Applicable Metals: Copper, copper alloys except aluminum bronze, steel, stainless steel, nickel alloys, other ferrous metals, brass, bronze
• Flux Type: White paste brazing flux
• Suitable Brazing Alloys: High silver brazing filler metals (AWS A5.8 BAg), phosphorus-copper-silver alloys (AWS BCuP, ISO CuP)
• Flux Removal: Hot water wash, brushing, mechanical or chemical cleaning
• Flux Appearance at Brazing Temp: Turns clear (transparent)
• Weight: 0.49 lbs
