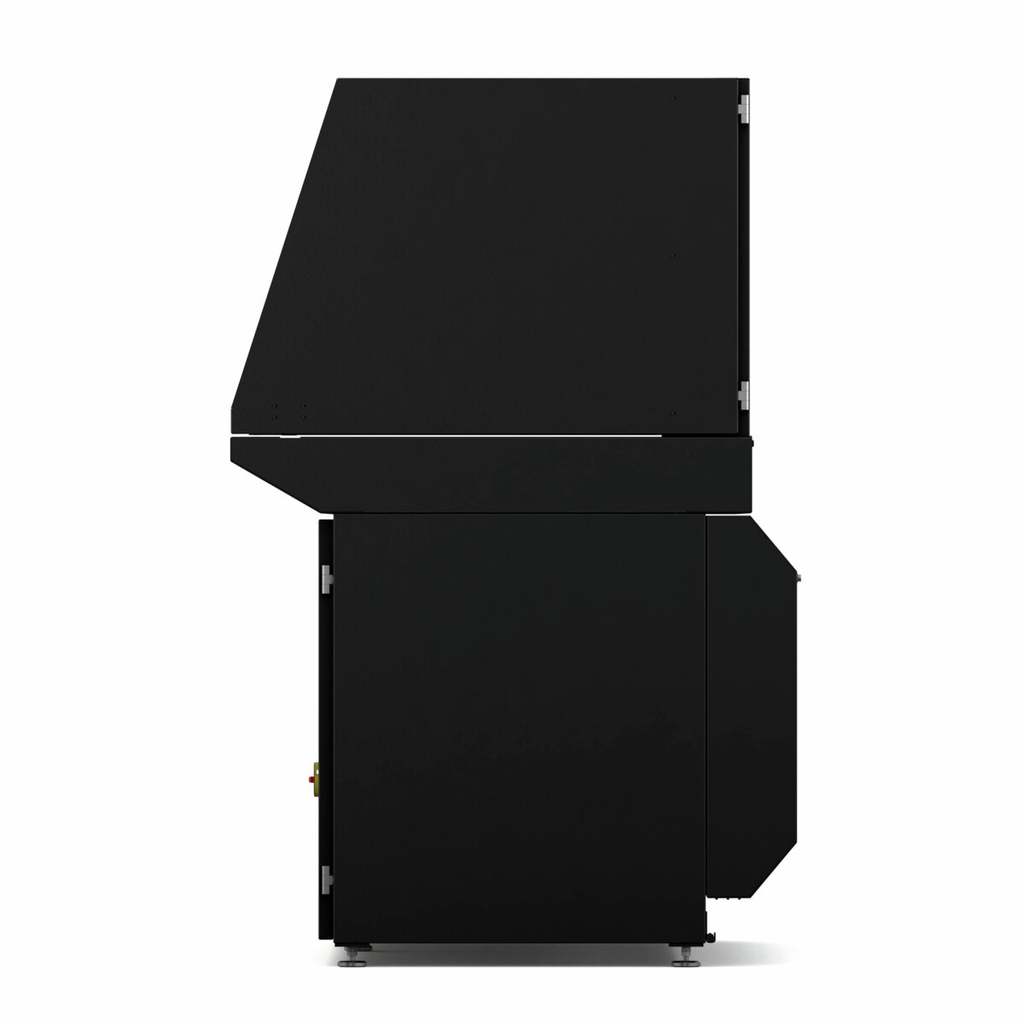

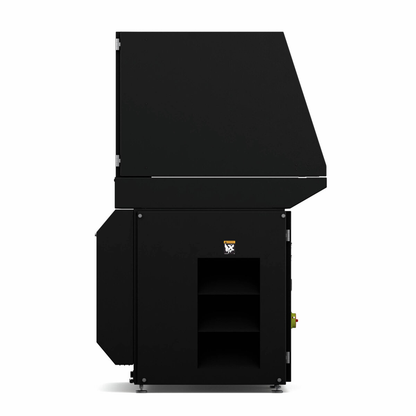

Lincoln Electric, K2751-14, Downdraft Table, 575 V; 3 Ph; MERV 16 Filter; 54.7 in W; 39.2 in D; 61.6 in H

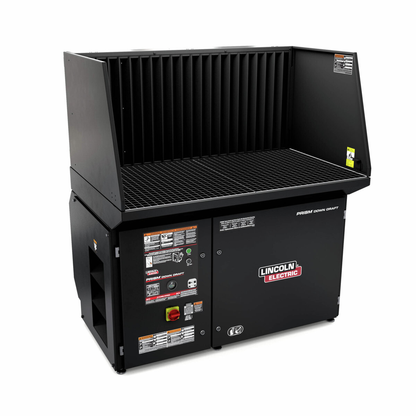

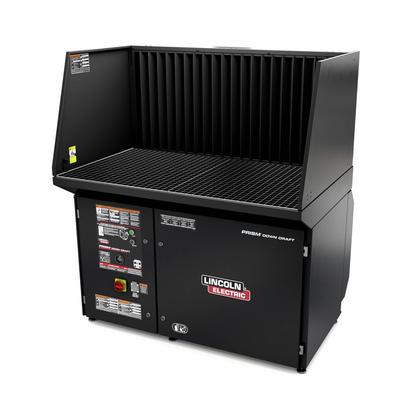

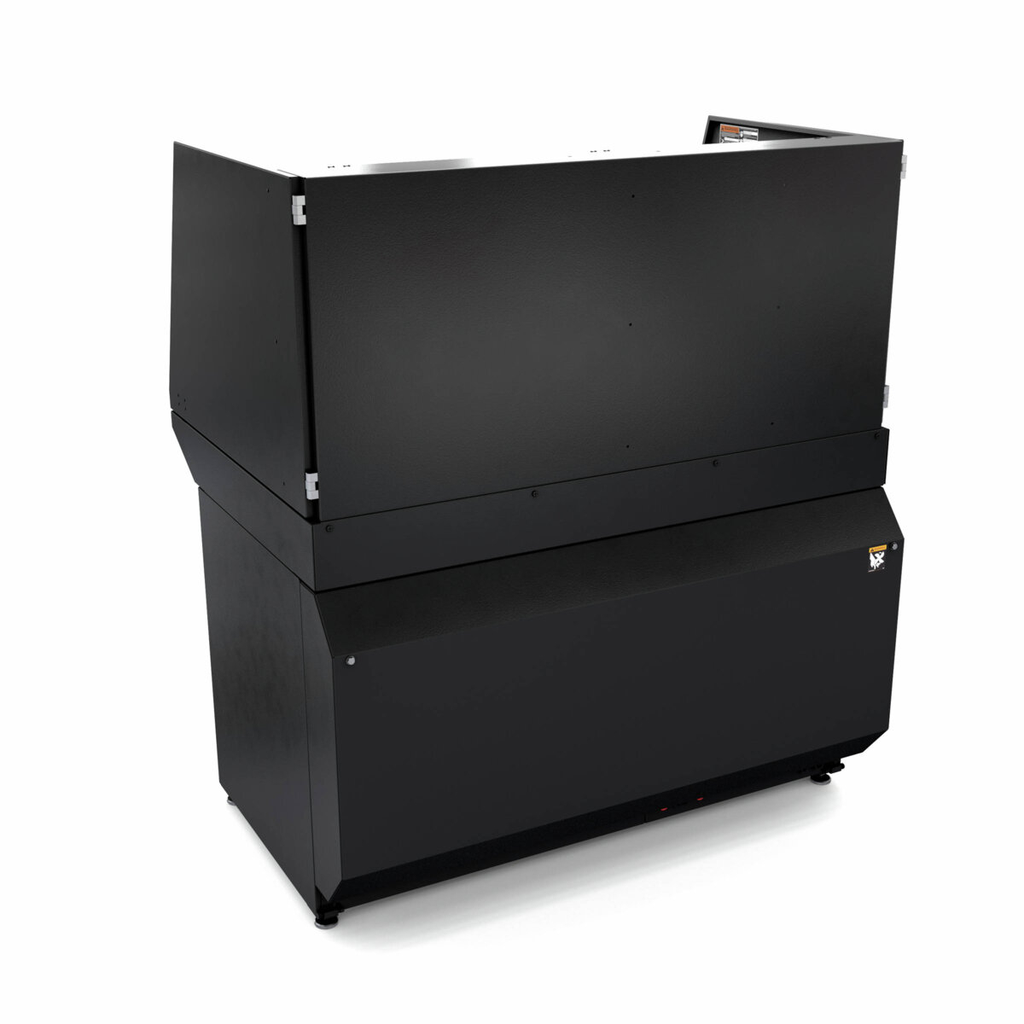

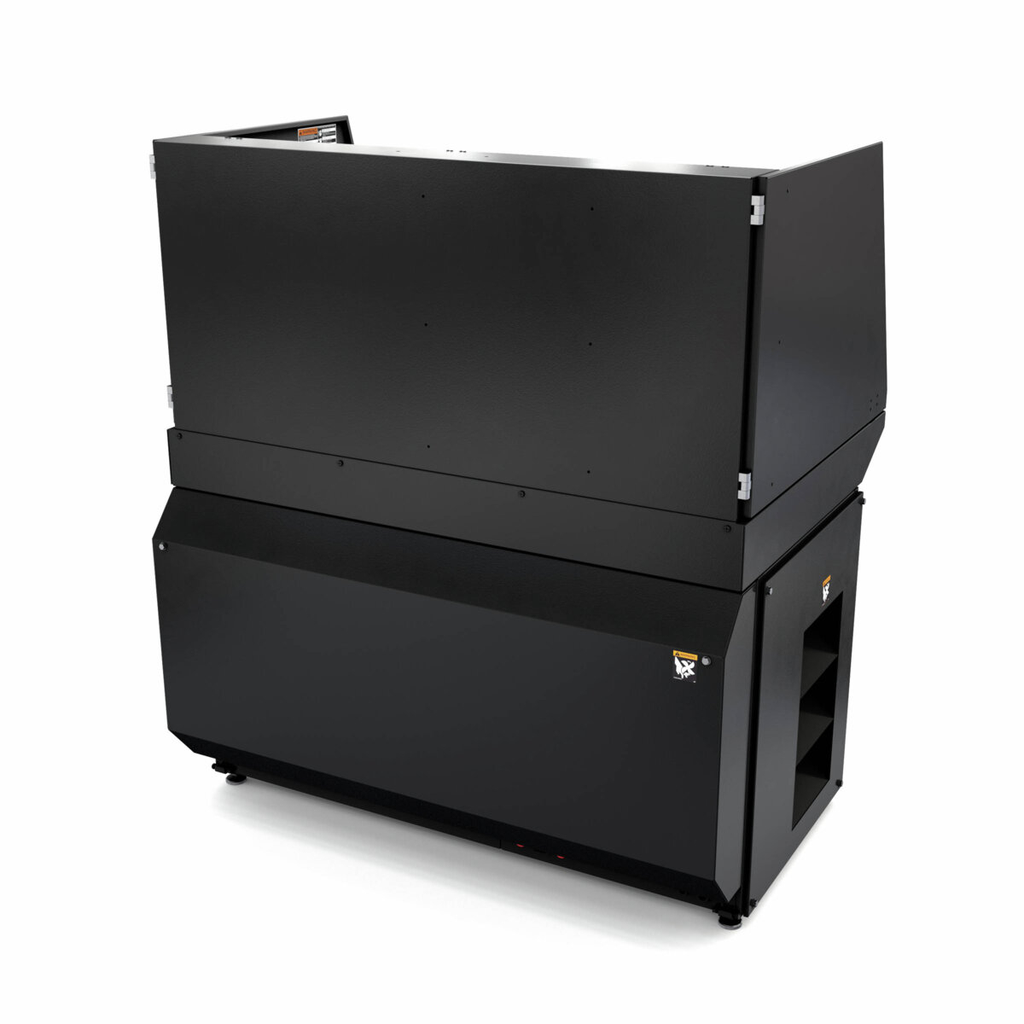

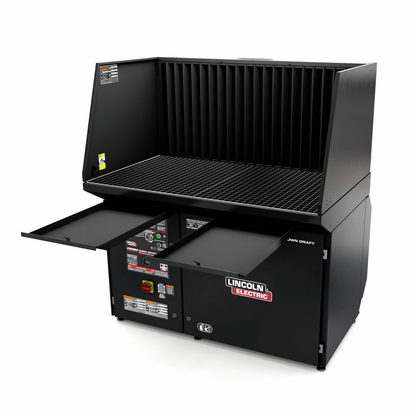

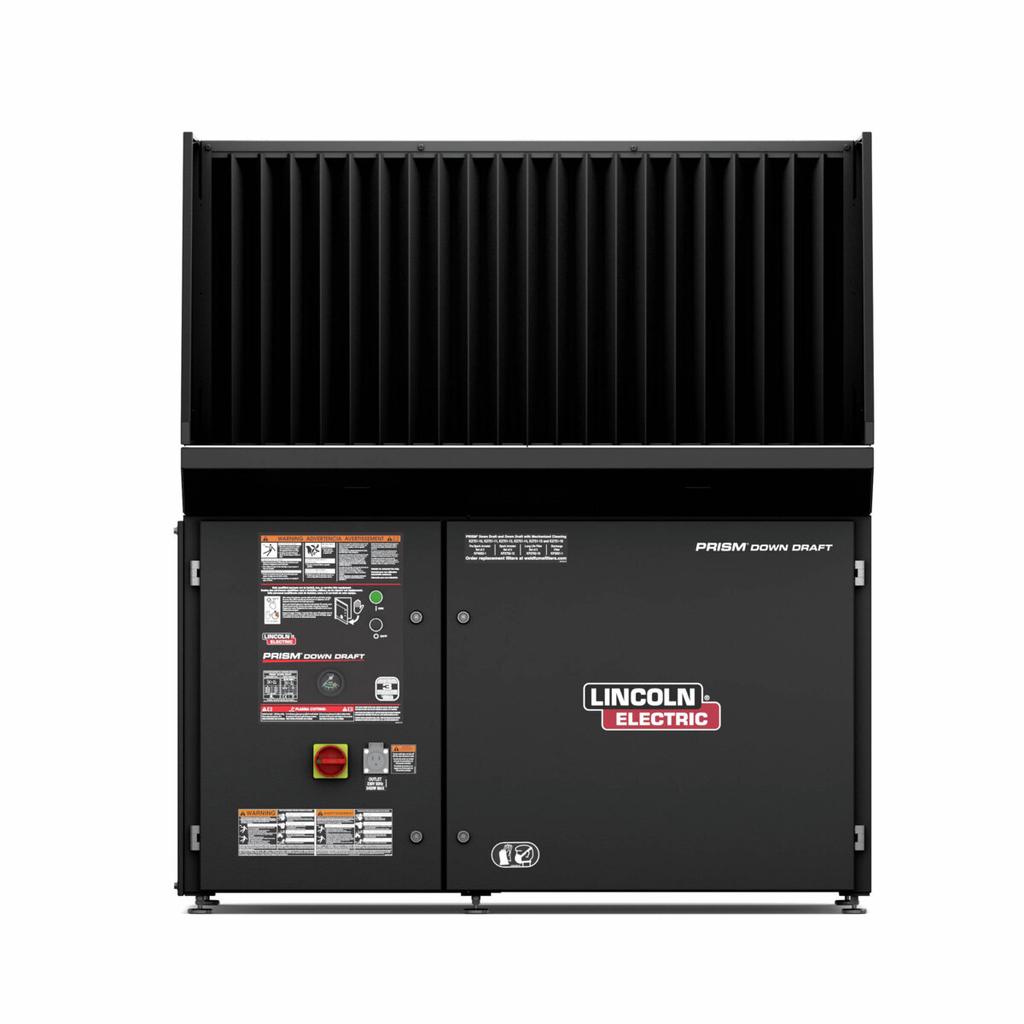

The Prism DownDraft® table is a compact table that can be placed in multiple locations around a welding shop. It combines a workbench and extraction unit specifically designed for the removal of welding fume. The table can be used to remove particulate and dust from metal grinding applications, as well as fume and particulate from light duty plasma arc cutting applications, making the table a safe and effective workplace.

What's Included?

• (1) Prism DownDraft Table

Features

• Cleaner work environment - Removes welding, cutting and grinding fume at the source.
• Strong Backdraft (80%) and Downdraft (20%) Extraction Capacity - Ideal for welding, grinding(2), and light duty plasma cutting. (max 50 amps)
• Low noise level: Without options: 78 dB(a). With Silencer: 78 dB(a). With Silencer & HEPA Kit: 71 dB(a).
• Three Stage Spark Arrestor System - Captures hot particulate before it can get into the filter chamber.
• Disposable (Non-cleaning) Filter - Large filter surface area results in longer filter life and reduced maintenance costs.
• Simple Operation and Easy Maintenance - All controls and particulate collection drawers are easily accessible from the front of the Down Draft table.

• Voltage: 575V
• Phase: 3
• Frequency: 60 Hz
• Max Amperage: 3.8A
• Extraction Capacity: 80% backdraft, 20% downdraft
• Dimensions (HxWxD): 61.6 x 54.7 x 39.2 in (1565 x 1389 x 996 mm)
• Weight: 683 lbs (311 kg)
• Work Table Size: 53.8 x 29.5 in (1366 x 750 mm)
• Work Surface Height: 37 - 38.5 in (940 - 978 mm)
• Work Load Capacity: 440 lbs (200 kg)
• Material: Downdraft Table
• Filter Type: MERV 16 (HE)
• Filter Surface Area: 560 ft2 (52 m2)
• Spark Arrestor System: Three Stage
• Filter Cleaning: Disposable (Non-cleaning)
• Country of Origin: United States
• Warranty Length: 3 Years
