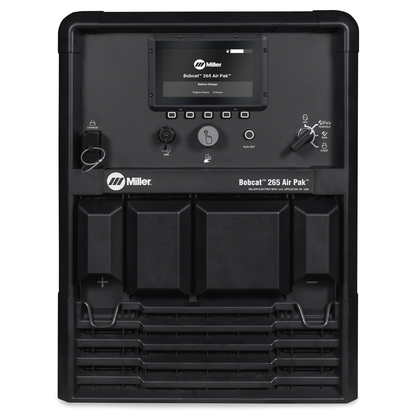

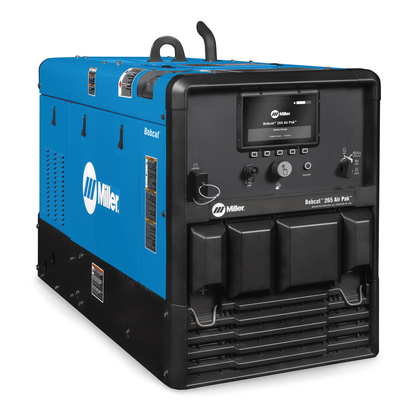

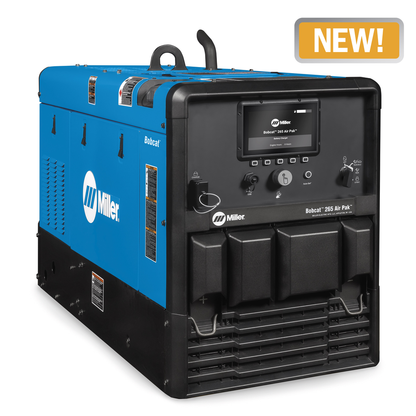

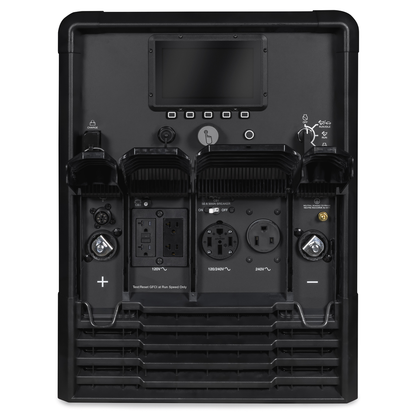

Miller Electric, 907876, Engine Driven Welder, 20 A - 265 A, 11 Gallon Fuel Tank, 300 A Crank Assist, 30 cfm Rotary-Screw Compressor

Powerful all-in-one tool designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist.

Does Not Include

• Weld leads

Features

• Easy arc starts and less spatter.
• Digital interface speeds machine setup and makes it less complicated.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Full auxiliary power at any setting.
• Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.
• Quiet and durable rotary-screw compressor delivers 30 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F. It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)

• Amperage Range: 20 A - 265 A
• Crank Assist Amperage and Voltage: 300 A, 12/24 V
• Compressor Airflow: 30 cfm (0.85 m3/min)
• Compressor Pressure Range: 80-160 psi (psig)
• Compressor Duty Cycle: 100%
• Voltage: 12- and 24-volt batteries
• Rated Output: CC/DC Stick/TIG 244 A at 29.8 V, 100% duty cycle; CV/DC MIG/FCAW 260 A at 27 V, 100% duty cycle
• Single-Phase Generator Continuous Power: 9500 W
• Single-Phase Generator Peak Power: 11000 W
• Fuel Tank Size: 11 gallon
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Battery Charge Amperage: 10-150 A
• Sound Rating: 69.5 dB @ 150 A, 75.3 dB @ max weld
• Current Type: DC
• Engine Idle Speed: 2400 RPM
• Horsepower: 27 hp
• Max Open Circuit Voltage: 107 VDC
• Engine Weld Speed: 3600 RPM
• Compressor Automatic Shutdown: High pressure (160 psi)
• Fuel Type: Gasoline
• Engine Brand: Kohler
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Weld Output: CC/CV
• Compressed Air: Yes
• Compressor Brand: Rotary-Screw Compressor
• Country of Origin: United States
