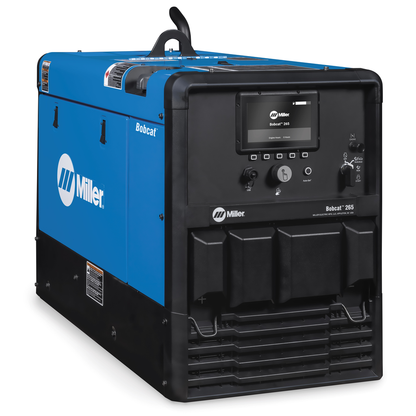

Miller Electric, 907848, Engine-Driven Welder, 23 hp; 11 gal, Gasoline, 265 A, 37.06 in; 20.13 in; 26.5 in

Reliable, easy to use and more capable engine-driven welder great for stick and flux-cored welding. Designed for maintenance/repair operations, construction, farm, ranch and auxiliary power use.

Features

• Digital interface speeds machine setup and makes it less complicated.
• Over 100 pounds lighter and 13 percent smaller than previous models.
• Kohler or Vanguard.

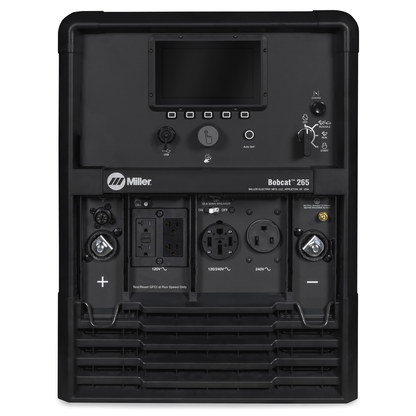

• Full auxiliary power at any setting.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Easy arc starts and less spatter.

Does Not Include

• Weld leads

• Rated Output: CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle, CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle
• Amperage Range: 20 A - 265 A
• Horsepower: 23 hp
• Single-Phase Generator Peak Power: 11000 W
• Single-Phase Generator Continuous Power: 9500 W
• Engine Idle Speed: 2400 RPM
• Engine Brand: Vanguard, Kohler
• Length: 37.06 in
• Width: 20.13 in
• Height: 26.5 in
• Weight: 382 lb
• Fuel Tank Size: 11 Gallon
• Fuel Type: Gasoline
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Engine Weld Speed: 3600 RPM
• Sound Rating: 64 dB @ idle, 73 dB @ weld
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Weld Output: CC / CV
• Current Type: DC
• Country of Origin: United States
