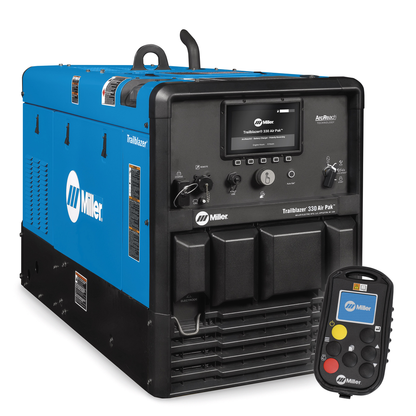

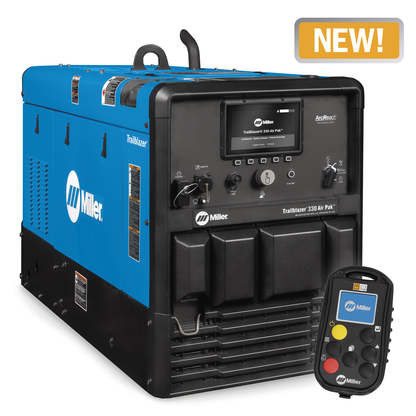

Miller Electric, 907836003, Engine Driven Welder, 330 A, 12 kW Peak Power, 30 cfm Air Delivery, Wireless Control

Powerful all-in-one tool designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist.

Features

• Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

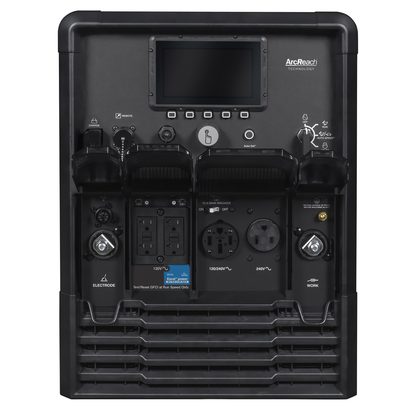

• Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.
• Over 180 pounds lighter and 13 percent smaller than previous models.

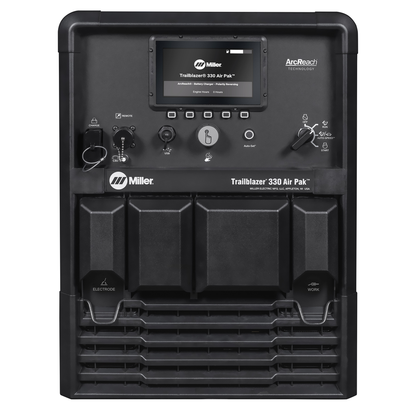

• Digital interface speeds machine setup and makes it less complicated.
• Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
• Quiet and durable rotary-screw compressor delivers 30 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F. It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)
• Get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free. With wireless interface control, you can: Change welding processes Adjust parameters Select and save preset programs Turn the machine on/off View service reminders And more! Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
• Full auxiliary power at any setting.
• Easy arc starts and less spatter.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.

Does Not Include

• Weld leads

• Amperage Range: 20 A - 330 A DC
• Crank Assist: 300 A, 12/24 V DC
• Compressor Free Air Delivery: 30 cfm (0.85 m3/min) at 3,600 rpm / 28 cfm (0.79 m3/min) at 3,000 rpm
• Compressor Working Pressure: 80-160 psi
• Compressor Duty Cycle: 100%
• Compressor Temperature Rating: 104 F
• Rated Output: CC/DC Stick/TIG 314 A at 32.5 V, 100% duty cycle; CV/DC MIG/FCAW 330 A at 30.5 V, 100% duty cycle
• Single-Phase Generator Peak Power: 12000 W
• Single-Phase Generator Continuous Power: 10500 W
• Current Type: DC
• Max Open Circuit Voltage: 107 VDC
• Min DC Welding Amperage: 20 A
• Compressor Brand: Rotary-Screw Compressor
• Fuel Type: Gasoline
• Engine Idle Speed: 2400 RPM
• Engine Weld Speed: 2,400-3,600 RPM with Advanced Auto-SpeedTM technology
• Horsepower: 27 hp
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Sound Rating: 69.5 dB @ 150 A; 75.3 dB @ max weld
• Fuel Tank Size: 11 Gallon
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Battery Charge: 10-150 A
• Battery Voltage: 12 V, 24 V
• Compressed Air: Yes
• Country of Origin: United States
