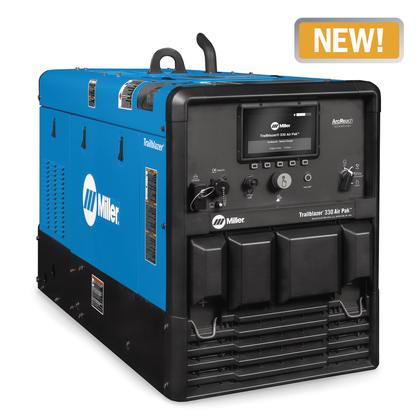

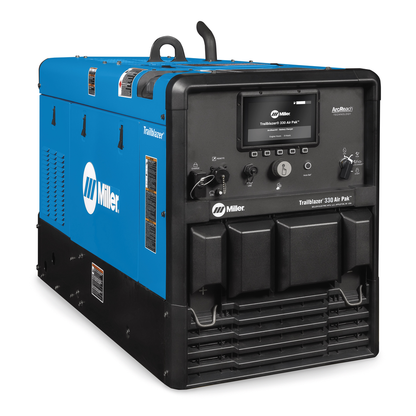

Miller Electric, 907836002, Engine Driven Welder, 330 A Max DC Welding, Rotary-Screw Compressor, 11 Gallon Fuel Tank

Powerful all-in-one tool designed for repair and construction with multiprocess weld quality, auxiliary power, air compressor and battery charge/crank assist.

Features

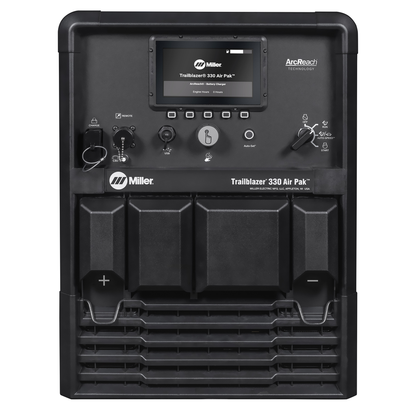

• Digital interface speeds machine setup and makes it less complicated.
• Over 180 pounds lighter and 13 percent smaller than previous models.
• Easy arc starts and less spatter.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
• Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power.
• Quiet and durable rotary-screw compressor delivers 30 CFM at 80-160 psi of air at 100% duty cycle while rated at 104° F. It offers an average of three times the service life of traditional reciprocating compressors. Produces air when you need it; no more down time waiting for an external tank to fill. Airflow can be selected depending on tool requirements. Front panel air pressure adjustment makes it simple to dial in the correct air pressure for specific applications (80-160 psi)
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
• Full auxiliary power at any setting.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

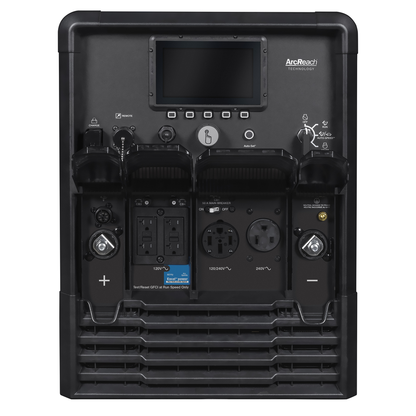

• Power at idle — a Miller exclusive. Unlike competitive machines that provide auxiliary power only at 3,600 rpm (max), Excel power delivers a full 2,400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle. With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability. Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller.

Does Not Include

• Weld leads

• Amperage Range: 20 A - 330 A
• Crank Assist Current: 300 A, 12/24 V
• Compressor Duty Cycle: 100%
• Compressor Type: Rotary-Screw Compressor
• Compressor Working Pressure: 80-160 psi
• Compressor Free Air Delivery: 30 cfm (0.85 m3/min) at 3,600 rpm
• Power Output: 10500 W Single-Phase Generator Continuous Power
• Rated Output: CC/DC Stick/TIG 314 A at 32.5 V, 100% duty cycle; CV/DC MIG/FCAW 330 A at 30.5 V, 100% duty cycle
• Engine Weld Speed: Varies 2,400-3,600 rpm with Advanced Auto-SpeedTM technology
• Engine Idle Speed: 2400 RPM
• Horsepower (hp): 27
• Fuel Tank Size: 11 Gallon
• Max Open Circuit Voltage: 107 VDC
• Weld Output: CC/CV
• Max DC Welding Amperage: 330
• Min DC Welding Amperage: 20
• Battery Charge: 10-150 A
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Fuel Type: Gasoline
• Current Type: DC
• Sound Rating: 69.5 dB @ 150 A; 75.3 dB @ max weld
• Rated Airflow: 30 cfm
• Operating Temperature Rating: 104 F
• Country of Origin: United States
