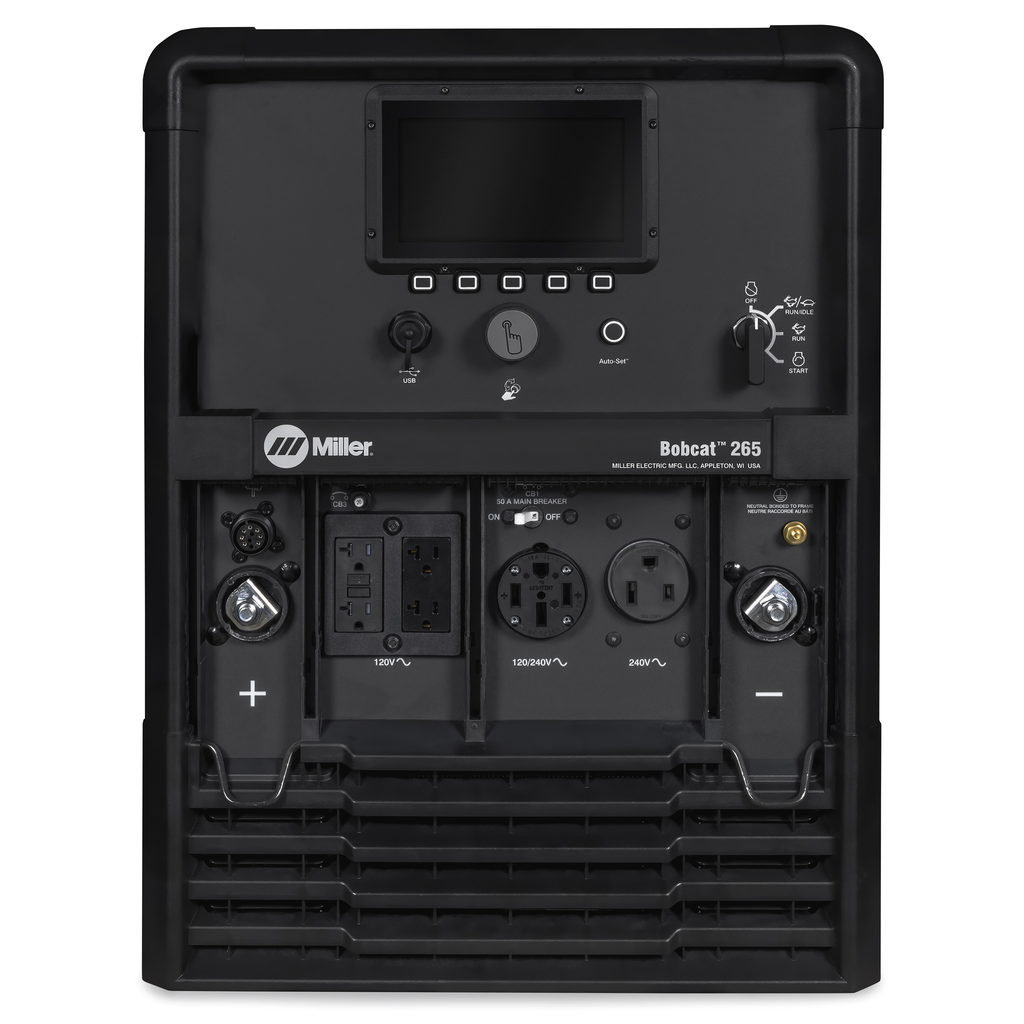

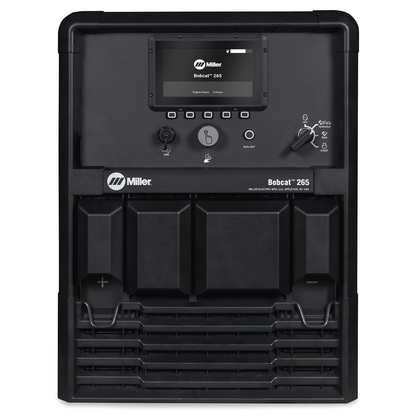

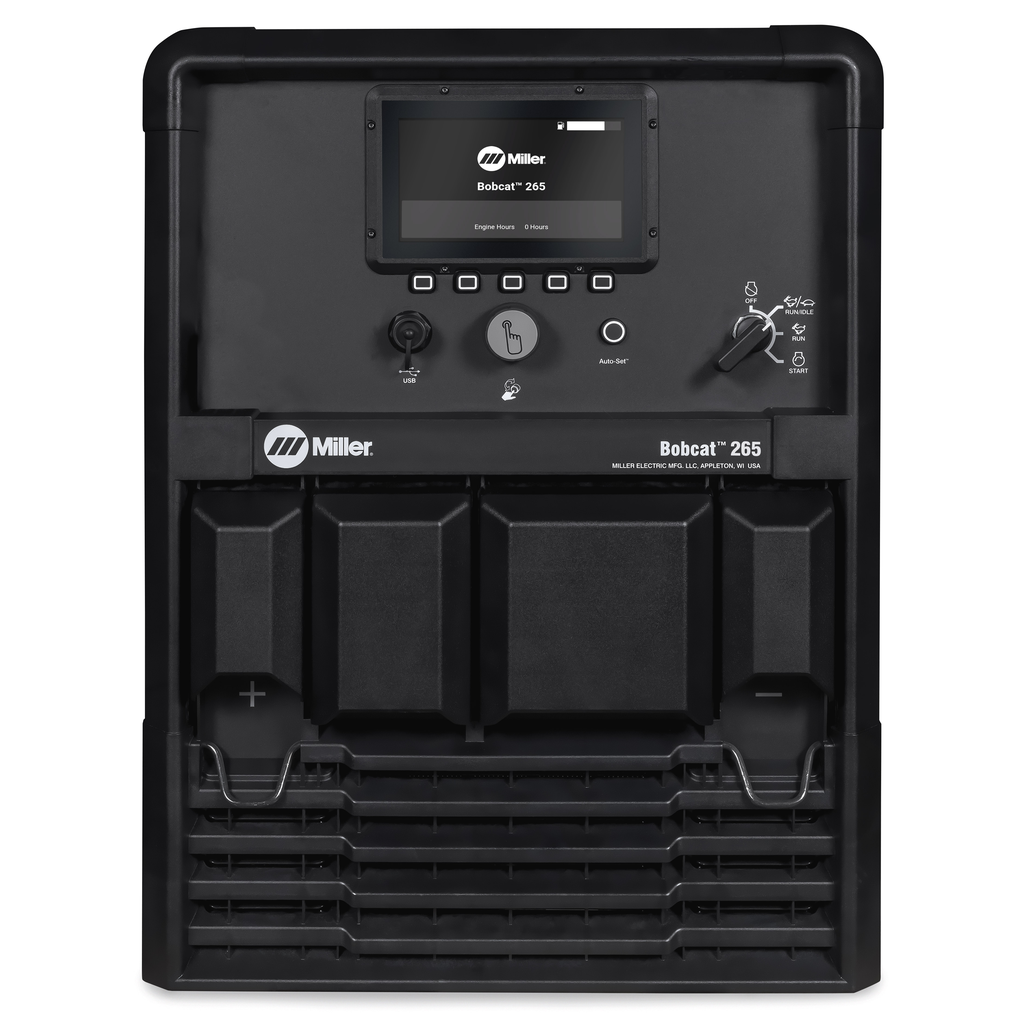

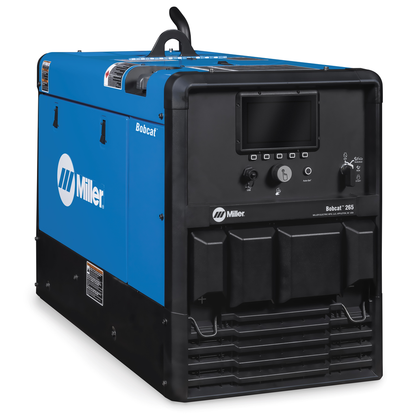

Miller Electric, 907826, Engine-Driven Welder, Max DC Amperage 265 A, Rated Output 265 A at 100% duty cycle, Kohler Engine, 11 Gallon Fuel Tank

Reliable, easy to use and more capable engine-driven welder great for stick and flux-cored welding. Designed for maintenance/repair operations, construction, farm, ranch and auxiliary power use.

Features

• Easily turn your Bobcat machine on and off remotely, so it only runs when you need it.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Full auxiliary power at any setting.

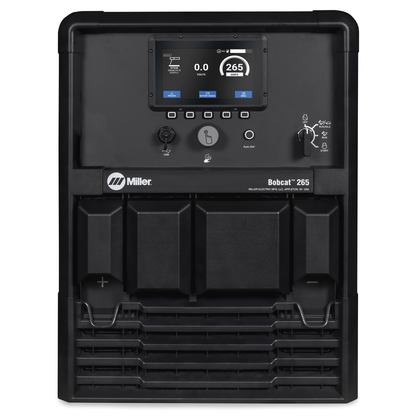

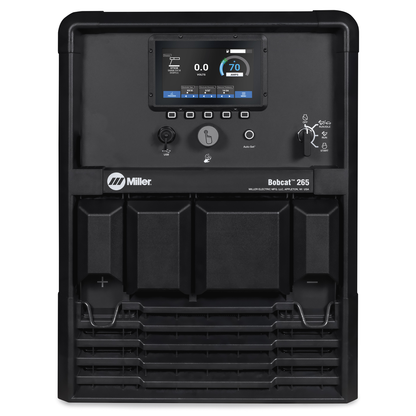

• Digital interface speeds machine setup and makes it less complicated.
• Easy arc starts and less spatter.
• Over 100 pounds lighter and 13 percent smaller than previous models.
• Kohler or Vanguard.

Does Not Include

• Weld leads

• Max DC Welding Amperage: 265 A
• Rated Output: CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle; CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle
• Amperage Range: 20 A - 265 A
• Weld Output: CC / CV
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Current Type: DC
• Horsepower: 23.5 hp
• Single-Phase Generator Peak Power: 11,000 W
• Single-Phase Generator Continuous Power: 9,500 W
• Engine Weld Speed: 3,600 RPM
• Engine Idle Speed: 2,400 RPM
• Fuel Type: Gasoline
• Fuel Tank Size: 11 Gallon
• Length: 37.06 in.
• Width: 20.13 in.
• Height: 26.5 in.
• Weight: 382 lbs
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Engine Brand: Kohler
• Sound Rating: 64 dB @ idle, 73 dB @ weld
• Country of Origin: United States
• Compressed Air: No
