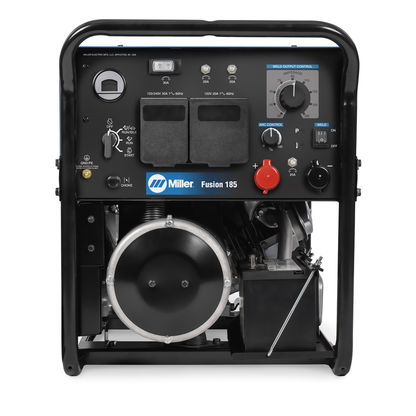

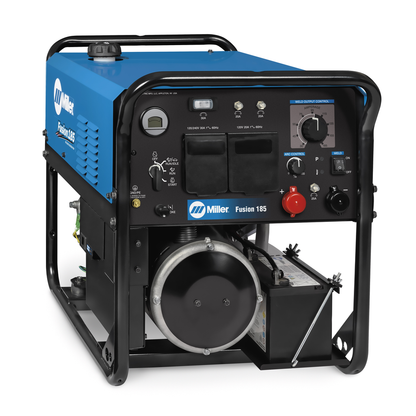

Miller Electric, 907781, Engine-Driven Welder, 185 A Max, 3,600 RPM, 6.25 gal Fuel Tank, Gasoline

The Fusion 185 delivers a smooth, stable arc with PowerShift technology utilizing either engine power or 120/240-volt utility power, providing a unique combination of versatility and productivity in a lightweight package.

Features

• The Fusion engine-driven welder weighs 242 pounds. That’s up to 50 pounds less than similar machines, so moving the Fusion is easier and faster. Less time is spent waiting and more work can get done.
• The multi-voltage plug (MVP) make it easy to connect the welder to either 120- or 240-volt power.
• Uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed, so it’s easier to produce clean welds that meet specifications and avoid the time and expense of rework.
• PowerShift technology provides weld capabilities using either the Fusion engine or 120/240-volt utility power. You’ll have the confidence of knowing that you can weld virtually anywhere - outdoors and indoors - with just one machine.

Does Not Include

• Weld leads

• Amperage Range: 30 A - 185 A
• Rated Output: 185 A at 26.4 V, 20% duty cycle; 110 A at 24.4 V, 100% duty cycle
• Engine Weld Speed: 3600 RPM
• Input Voltage: 110/115/120 V, 220/230/240 V
• Fuel Tank Capacity: 6.25 gal (23.7 L)
• Fuel Type: Gasoline
• Engine Idle Speed: 2500 RPM
• Single-Phase Generator Peak Power: 6500 W
• Single-Phase Generator Continuous Power: 6200 W
• Current Type: DC
• Horsepower: 13.4 hp
• Weld Output: CC
• Weldable Metals: Steel
• Weight: 242 lb
• Engine Brand: Kohler
• Country of Origin: United States
