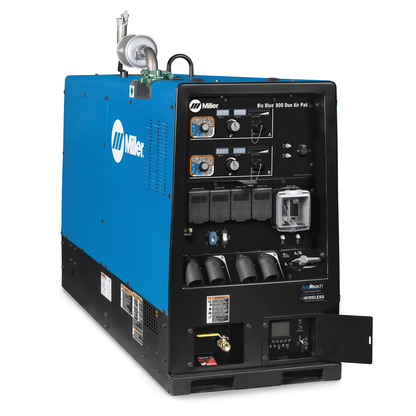

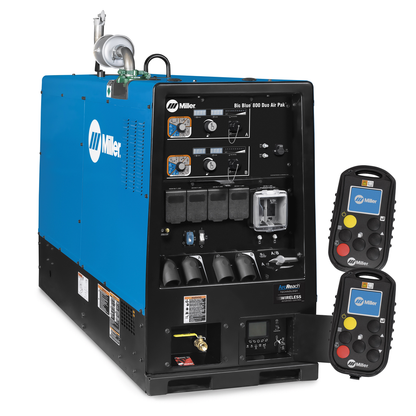

Miller Electric, 907752004, Diesel Engine Driven Welder, 800 A Max; 1/2 in Rated Carbon Diameter; 25 gal Fuel Tank; Wireless Control

Our most powerful Air Pak offers dual-operator productivity and multiprocess flexibility. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand. The clean running EPA T4i & T4F compliant engines reduce emissions.

Features

• Ultra-reliable industrial rotary screw air compressor. 30,000-hour life expectancy. Independent on/off control for applications not requiring compressed air — allows greater fuel savings and longer compressor service intervals.
• The cleanest, greenest diesel power available. Utilizes Diesel Oxidation Catalyst (DOC) technology to keep the air clean with NO exhaust aftertreatment maintenance.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

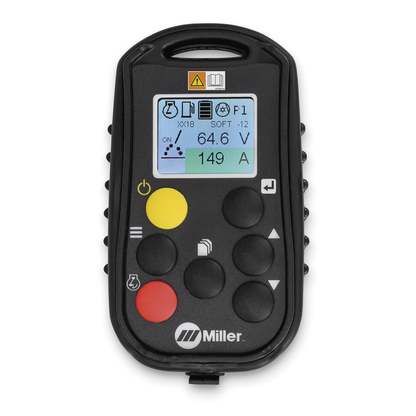

• Get full control of your machine in the palm of your hand, from wherever you are on the jobsite, so you can work hassle free. With wireless interface control, you can: Change welding processes Adjust parameters Select and save preset programs Turn the machine on/off View service reminders And more! Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
• Simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPM. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.
• One dependable engine—two independent arcs with up to 400 amps each. Or plug in additional inverters for a true multioperator work platform! Example: Two additional XMTs equals four operators, up to 200 amps each. Premium-quality arcs allow operators to work independently with no arc interaction. Multioperator welding has never been easier or more versatile.
• Reduces the open-circuit voltage to 15 volts when the welding power source is not in use, increasing operator safety without compromising arc starts.

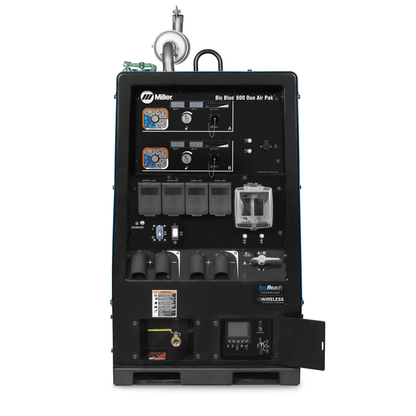

• Critical controls are located within easy reach for a ground-based operator when the machine is mounted on the bed of a large-body truck.
• Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

Does Not Include

• Weld leads

Includes

• 2 Wireless Interface Control remotes

• Amperage Range: 20 A - 800 A
• Max Open Circuit Voltage: 85 VDC
• Weld Output: CC/CV
• Compressor Free Air Delivery: 60 cfm (1.70 m3/min.)
• Compressor Working Pressure: 100 psig
• Compressor Duty Cycle: 100%
• Rated Carbon Diameter: 1/2 in (12.7 mm)
• Length: 69.5 in
• Width: 28.5 in
• Height: 46 in
• Weight: 2095 lb
• Engine Weld Speed: 1800 RPM
• Horsepower: 65.7 hp
• Fuel Tank Size: 25 gal
• Engine Brand: Deutz
• Compressor Brand: Ingersoll Rand Screw-Type
• Fuel Type: Diesel
• Current Type: DC
• Cold Weather Starting Aids: Engine Block Heater, Glow Plugs
• Compressor Automatic Shutdown: Oil temperature
• Weldable Metals: Stainless Steel, Steel
• Temperature Range: Up to 600 F (315 C)
• Engine Compliance: EPA T4i & T4F
• Country of Origin: United States
• Sound Rating: Idle: 71.3 dB / Weld: 78.9 dB
