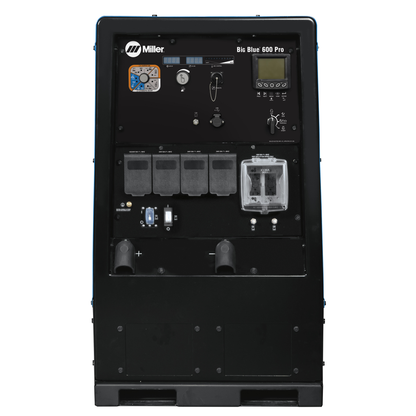

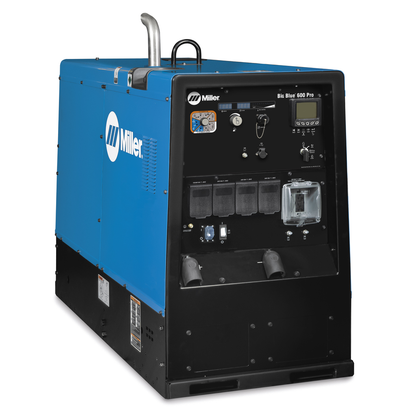

Miller Electric, 907737, Engine-Driven Welder, 600 A DC, Diesel, 20-600 A Amperage Range, 20000 W Continuous Power, Kubota Engine, 25 Gallon Fuel Tank

This EPA Tier 4 Final 600 amp engine-driven welder tackles tough jobs that require high-output for welding, gouging and auxiliary power.

Features

• All painted sheet metal is pretreated with a zinc-rich primer to provide extra protection against rust & corrosion (comparable to stainless steel).
• When activated, reduces the open-circuit voltage to 15 volts when the power source is not in use, increasing operator safety without compromising arc starts.
• Requires no elaborate procedure - just select process and weld!
• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
• Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.
• Enables welding parameters to be viewed with greater clarity at virtually any angle. Meters can be seen clearly even in direct sunlight.
• Improves work site safety and communication.
• Enables unit to automatically use remote control if connected to remote control receptacle.
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.
• The cleanest, greenest diesel power available. Kubota T4F models utilize diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.
• Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

Does Not Include

• Weld leads

• Max DC Welding Amperage: 600 A
• Amperage Range: 20 A - 600 A
• Rated Output: 500 A at 40 V (100% duty cycle), 550 A at 42 V (60% duty cycle), 600 A at 42 V (40% duty cycle)
• Three-Phase Generator Continuous Power: 20,000 W
• Three-Phase Generator Peak Power: 27,000 W
• Single-Phase Generator Continuous Power: 12,000 W
• Single-Phase Generator Peak Power: 15,000 W
• Max Open Circuit Voltage: 92 VDC
• Horsepower: 48.9 hp
• Engine Idle Speed: 1350 RPM
• Engine Weld Speed: 1800 RPM
• Height: 46 in
• Width: 28.5 in
• Length: 69.5 in
• Weight: 1750 lb
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Fuel Type: Diesel
• Fuel Tank Size: 25 Gallons
• Current Type: DC
• Weldable Metals: Stainless Steel, Steel
• Weld Output: CC / CV
• Cold Weather Starting Aids: Engine Block Heater, Glow Plugs
• Engine Brand: Kubota
• Engine Compliance: T4F (EPA Tier 4 Final)
• Sound Rating: Idle: 65.9 dB (90.7 Lwa), Weld: 74.3 dB (99.1 Lwa)
• Country of Origin: United States
