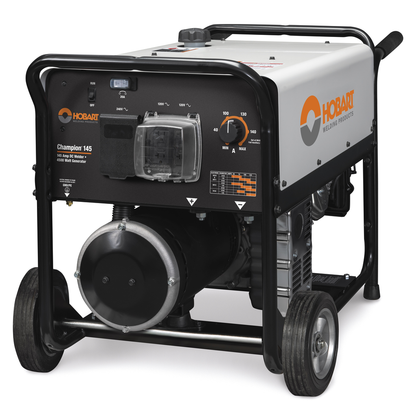

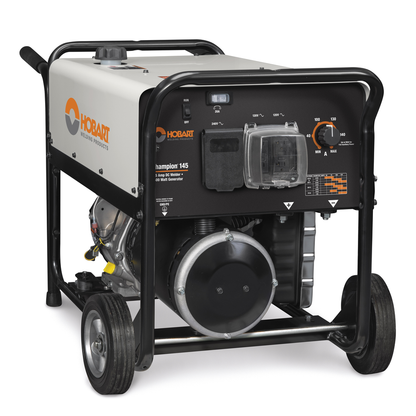

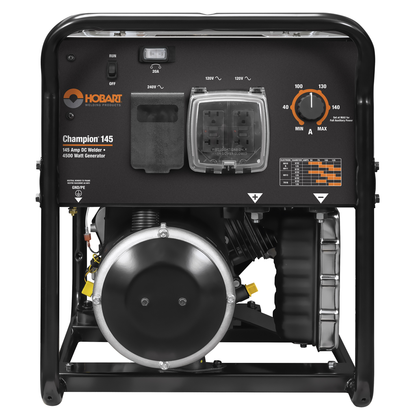

Hobart Welding Products, 500563, Engine Driven Welder, 40 A - 145 A, 4,500 W Surge Power, 6.25 gal Fuel Tank

This portable welder provides 145-amp stick welding with 4,500-watt auxiliary power. The DC stick welder is designed for quick and easy arc starts.

Features

• Quiet operation.
• With four 20A, 120 VAC GFCI receptacles and one 240 VAC (6-50R) receptacle with covers, allows you to obtain power for with 120 or 240 V tools.
• No need for you to take breaks to fill up the tank. Fuel-efficient engine with 6.25-gallon fuel tank for longer run times.
• Allows you to weld DC stick electrodes up to 5/32 in. diameter.
• 4,500 watts surge power and 4,000 watts continuous portable power available for tools for welding.
• Portable at 222 lb. (101 kg) with running gear and rollbar frame built for your added protection.

Includes

• Running Gear

Does Not Include

• Weld leads

• Amperage: 40 A - 145 A
• Continuous Power: 4,000 W
• Surge Power: 4,500 W
• Fuel Tank Capacity: 6.25 gal
• Weight: 222 lb
• Length: 31.25 in.
• Width: 20.625 in.
• Height: 24.75 in.
• Rated Output: 130 A @ 30% Duty Cycle
• Weldable Metals: Specialty Metals, Stainless Steel, Steel
• Max DC Welding Amperage: 145 A
• Min DC Welding Amperage: 40 A
• Weld Output: CC
• Current Type: DC
• Fuel Type: Gasoline
• Country of Origin: United States
