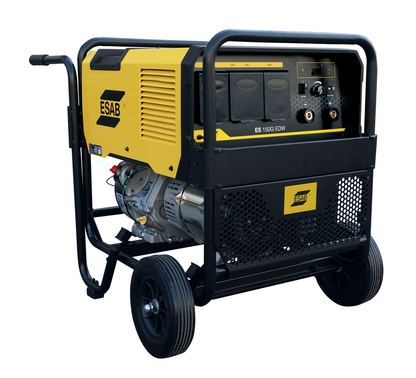

ESAB, 0707070150, Engine Driven Welder, 150 A; 60% Duty Cycle, 14 HP Kohler Engine, 4.5 kW Output

Ruffian ES 150G is a lightweight, powerful, all-in-one DC Stick welding machine and AC generator combined. As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler® engine to deliver up to 4.5Kw starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG/TIG welders – and to use as emergency backup.

Features

• Advanced control over arc parameters, including adjustable Arc Force, to optimize the arc - especially with 6010 electrodes
• Auxiliary generator output voltage is independent from the welding current, allowing simultaneous use of electrical tools without worrying about adjustments to the welder settings.
• Easy to maneuver through the job site with large industrial-grade wheels that provide high ground clearance; and ergonomic, removable handles that distribute weight evenly.
• Four 120 VAC, 20A GFCI receptacle, and (1) 240VAC receptacle all protected by a circuit breaker and covers
• IP23S
• Thermal protection for the welder and generator guaranteeing a long, useful life
• Impressive power output of 150A at 60% duty cycle
• Fuel-efficient 5-gallon gas tank and engine hour meter
• Latest inverter technology ensures a stable and smooth stick arc that produces the cleanest welds
• Trusted Kohler gas engine meets a high standard of power and reliability

Accessories

• Electrode Holder and Lead Assembly, 13 ft (4 m) WS200E13
• Tweco® - Style to OKC Adapter Connector 94251240
• Ground Clamp 200 A and Lead Assembly, 10 ft (3m) WS200G10
• Protective Cover, ES 150 G EDW 0707071002
• Lifting Eye 0707071001

Applications

• Agricultural Equipment
• Mobile Equipment
• Civil Construction
• Hobbyist
• Light Fabrication
• Repair and Maintenance

• Duty Cycle: 60% @ 150 A /26V | 100% @ 115 A/24.6V
• Voltage: 120/240 V AC
• Welding Current Range: 20 A to 150 A
• Open Circuit Voltage: 78 V
• Generator Peak Power: 4.5 kW
• Generator Continuous Power: 4 kW
• Frequency: 60 Hz
• Max Current Without Welding: 34 A (120 V AC), 17 A (240 V AC)
• Engine Power: 14 HP
• Engine RPM: 3600
• Engine Type: Kohler® Command PRO CH440
• Engine Cylinders: 1
• Cooling Method: Air Cooled
• Fuel Type: Gasoline
• Fuel Tank Capacity: 5.0 US gal (18.93 L)
• Phase: Single Phase
• Process: Stick (SMAW) | MMA
• Dimensions: 32.1 x 28.5 x 31.5 in
• Weight Without Wheels and Handles: 223.8 lb (101.5 kg)
• Weight With Wheels and Handles: 248 lb (112.5 kg)
• Enclosure Class: IP23S
• Country of Origin: China
• Trade Name: Ruffian™
