CK Worldwide, MT375-AC/DC, TIG Welding System, 208/230/460V; 5-275A, 5-375A, Water-Cooled

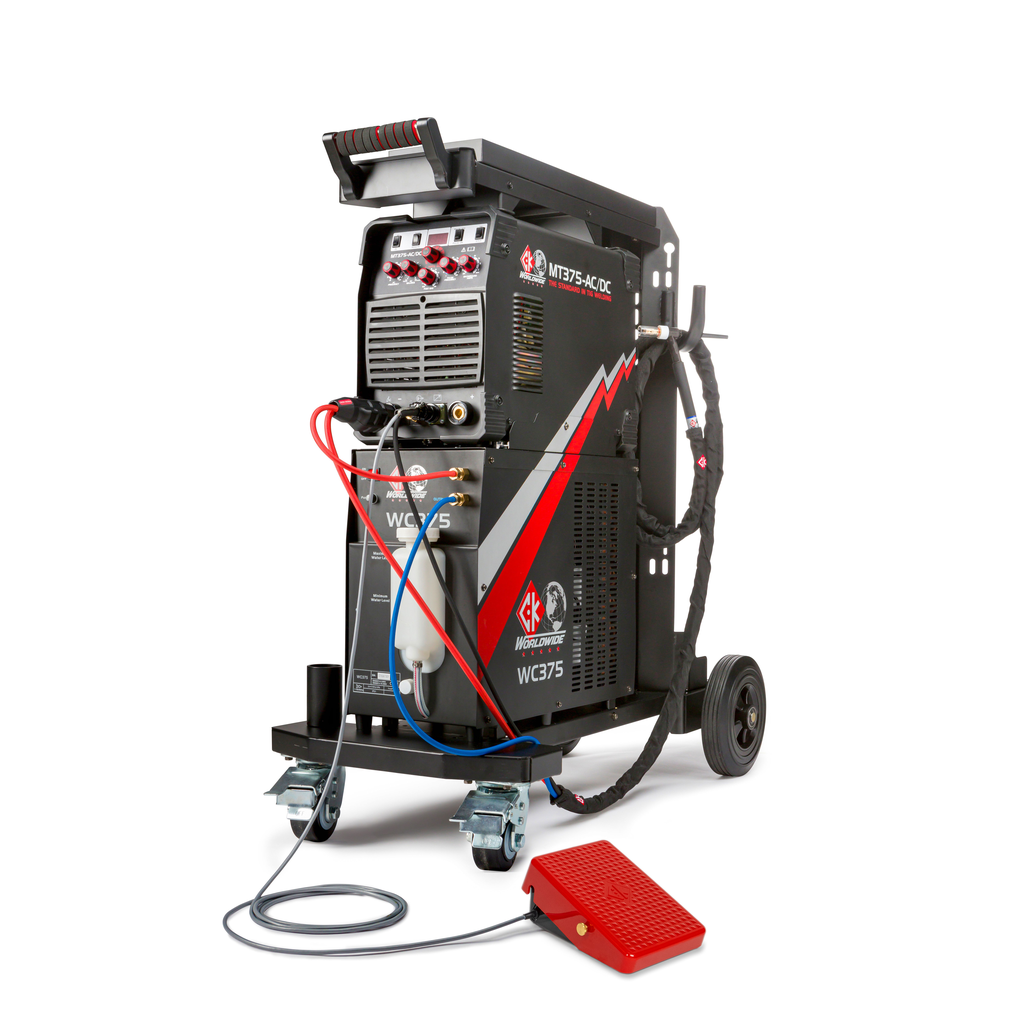

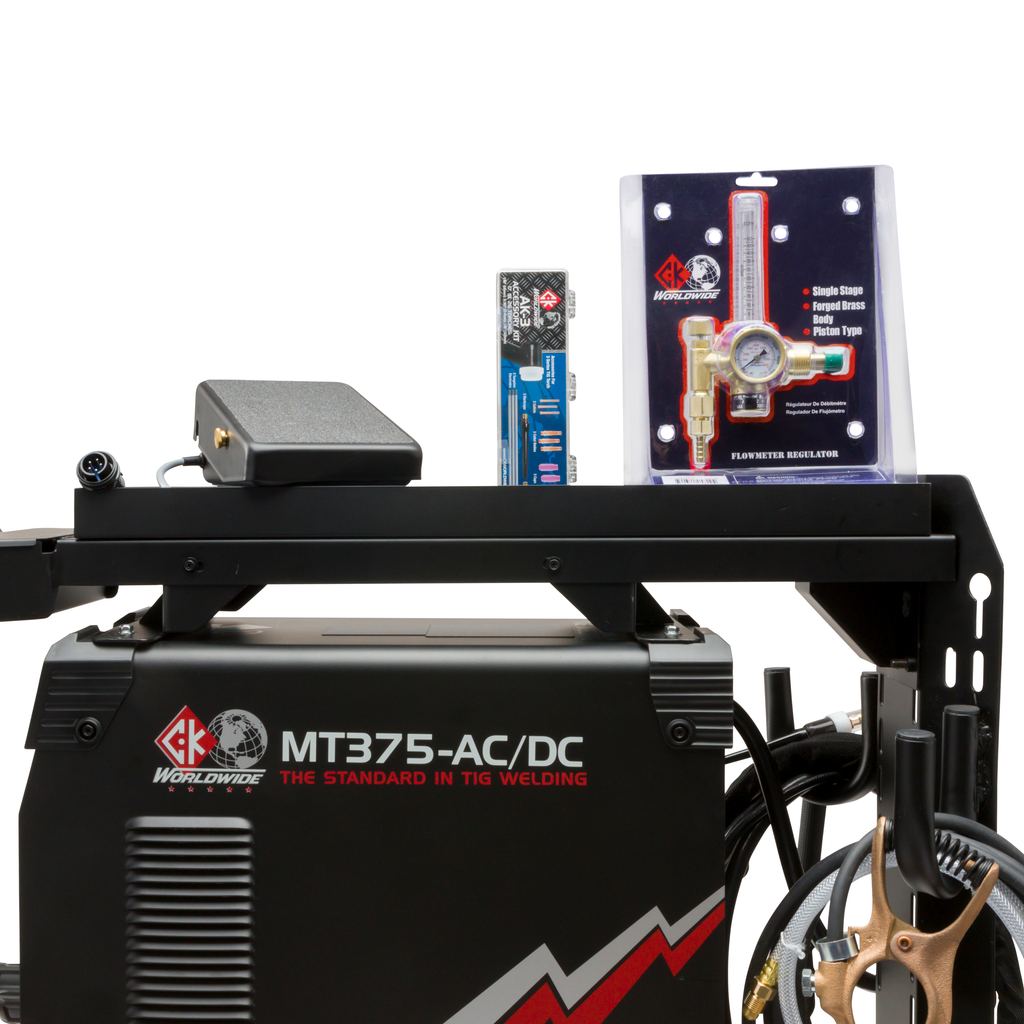

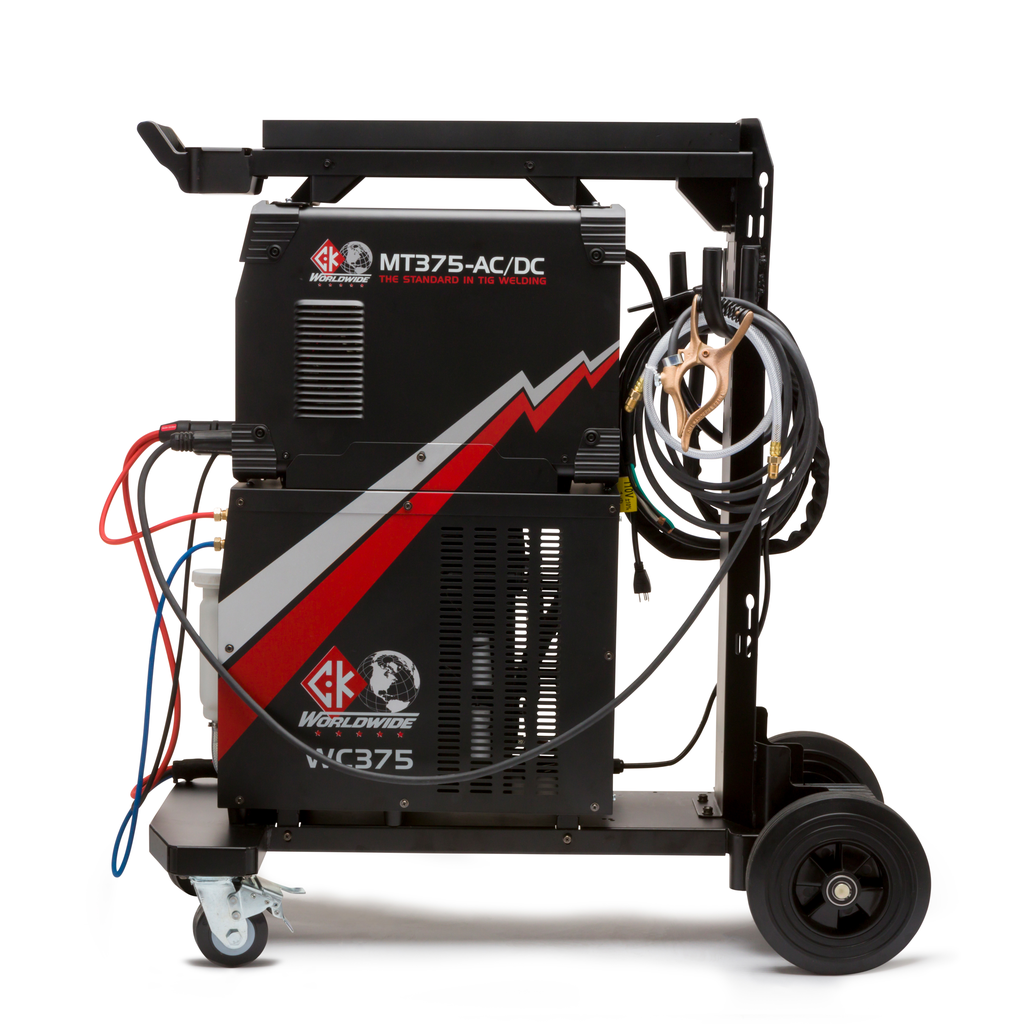

The CK Worldwide MT375-AC/DC is a top-notch TIG welding system, perfect for both creative and production-focused welders. This water-cooled machine adapts easily to different welding situations, ensuring consistent, high-quality results. It features a powerful 375 amp inverter with dual voltage (230V and 460V) and user-friendly controls for AC balance, frequency, post gas flow, and pulse settings. The innovative Steady-Grip™ Foot Pedal offers fingertip amperage control and traditional foot pedal operation for a custom welding experience. The WC375 Water Cooler’s dual-pump system delivers over a quart of coolant per minute, keeping the torch cool even at higher amperages, making welding sessions more efficient and less interrupted. The system includes the MT375 AC/DC Welding Machine, Steady Grip™ Foot Pedal, WC375 Dual-Pump Water Cooler, TL18 Flex-Head Trim-Line 350 amp TIG Torch, Super-Flex™ Cables with Dinse Connector, Utility Cart, and a full accessory kit. Available now from CK Worldwide's authorized distributors, the MT375 TIG Welding System is a significant advancement in performance and versatility. CK Worldwide, a leader in TIG welding for decades, continues to innovate and set quality standards with this new system.

Features

• Easy-to-Use Interface
• Dual Voltage (230V - 460V)
• Fully equipped with a dual pump water cooler and utility cart

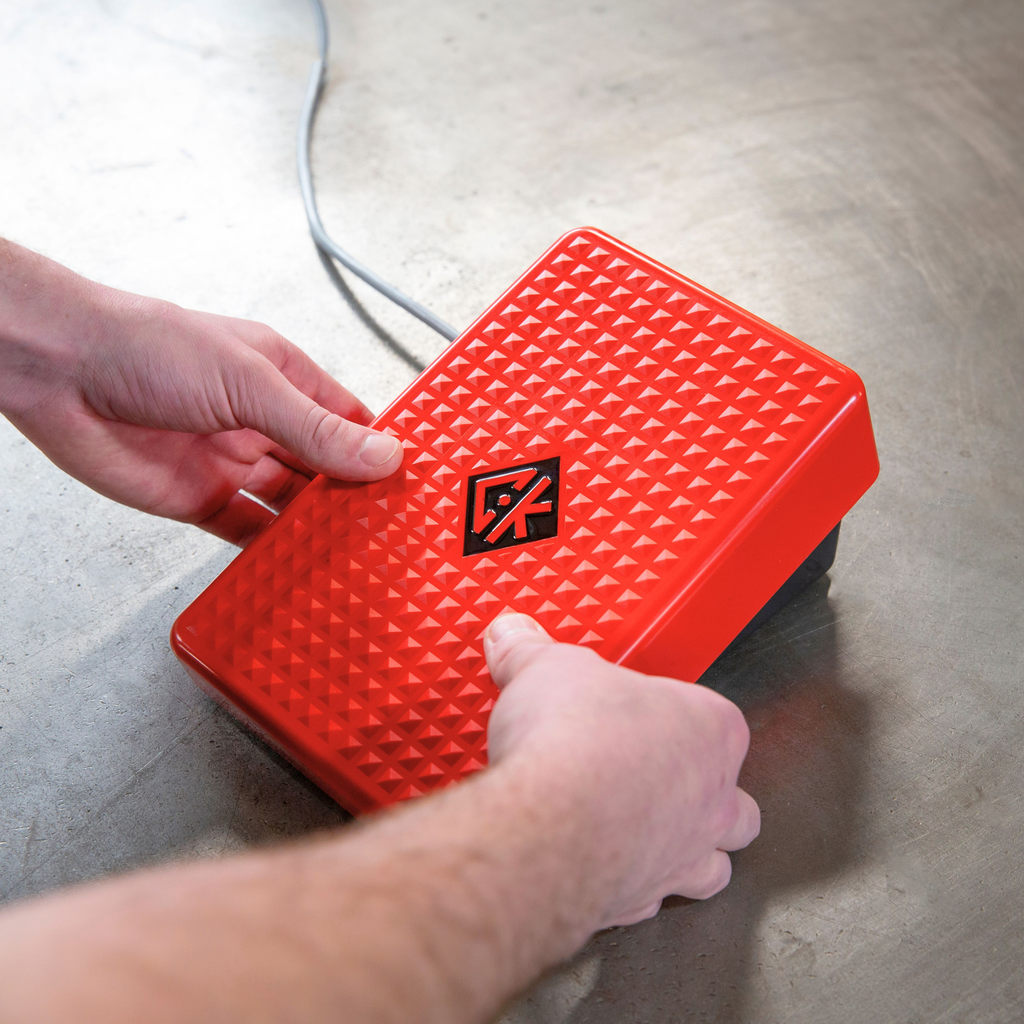

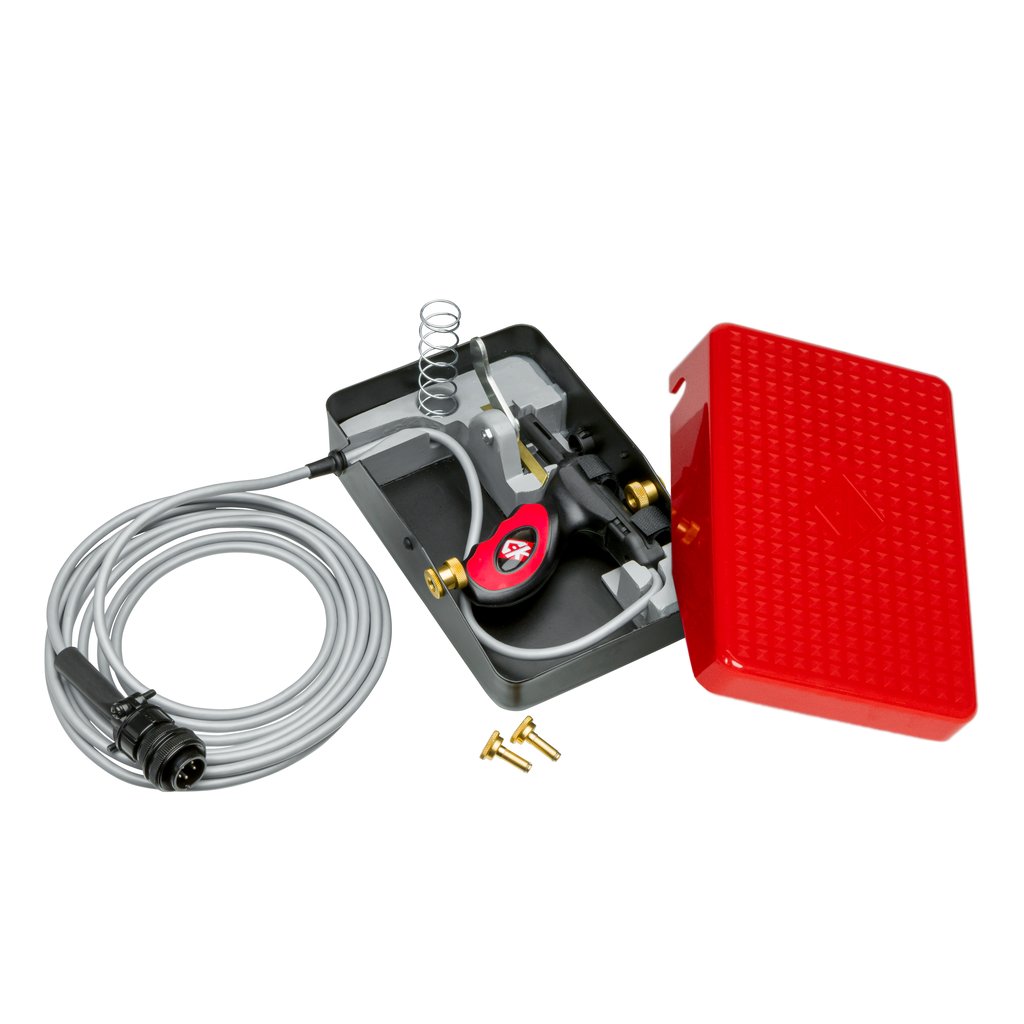

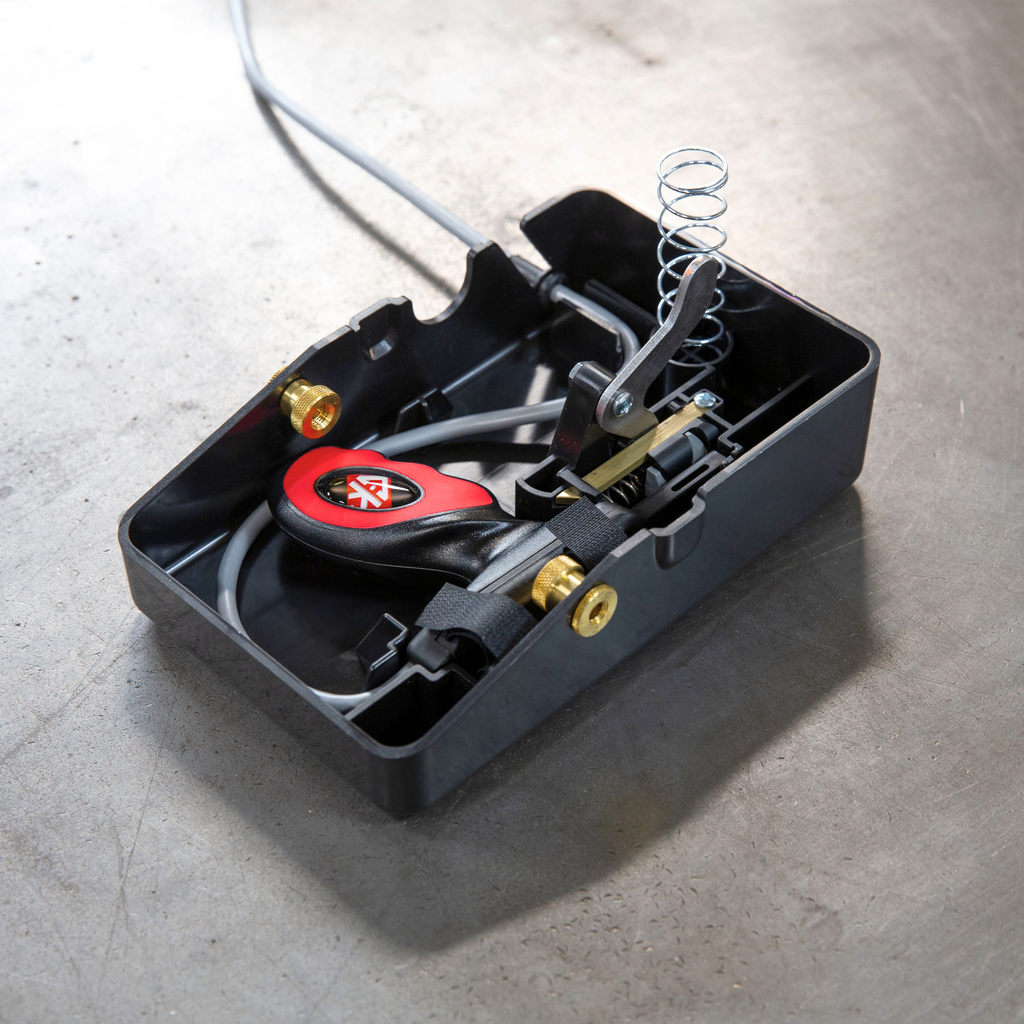

• Patented Steady-Grip™ foot pedal quickly converts to fingertip amperage control
• High Frequency Arc Start
• Water-Cooled TIG Welding System

• Input Voltage: 208/230/460 V Single Phase
• Output Current Range 230V: 5-275 A
• Output Current Range 460V: 5-375 A
• Duty Cycle: 375 A @ 35%
• Welding Processes: AC/DC TIG, Stick
• Maximum Material Thickness: Up to 3/8 in.
• Arc Starting: High Frequency, 5 Amp Arc Starts, Square Wave
• Dimensions Machine (H x W x L): 15 in x 10.5 in x 20.5 in (381 mm x 267 mm x 521 mm)
• Weight Machine: 82 lb (37.2 kg)
• Gas Post-flow: 0.5-20 seconds
• Pulse Frequency: 1-200 Hz
• Background Current: 10-100%
• AC Frequency: 20-200 Hz
• AC Balance: Max. Cleaning to Penetration adjustable
• Gas Pre-flow: 0.5 seconds
• Coolant Capacity: 2.5 gallons (9 liters)
• Coolant Type: 80% distilled water, 20% organic coolant
• BTU Max: 14,200 BTU
• Water Cooler Input Voltage: 110 VAC 10%, 50/60 Hz
• Torch Included: TL18 Flex-Head Trim-Line 350 amp TIG Torch
• Cables: Super-FlexTM 12.5 ft (3.8 m) with Dinse Connector
• Gas Hose Length: 6 ft (1.8 m)
• Compliance: CSA E60974-1
