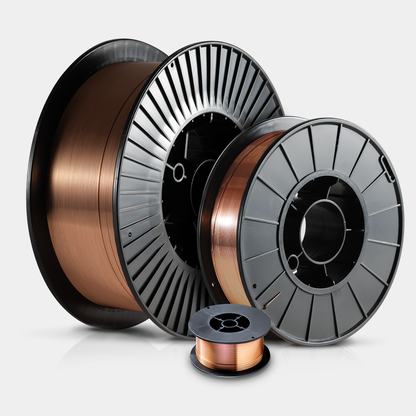

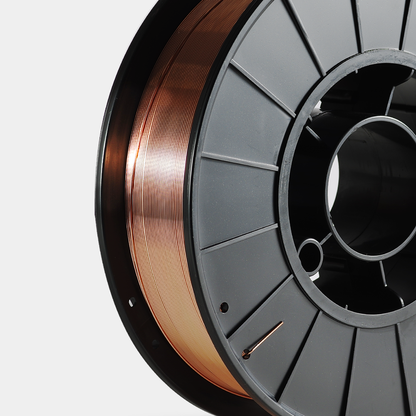

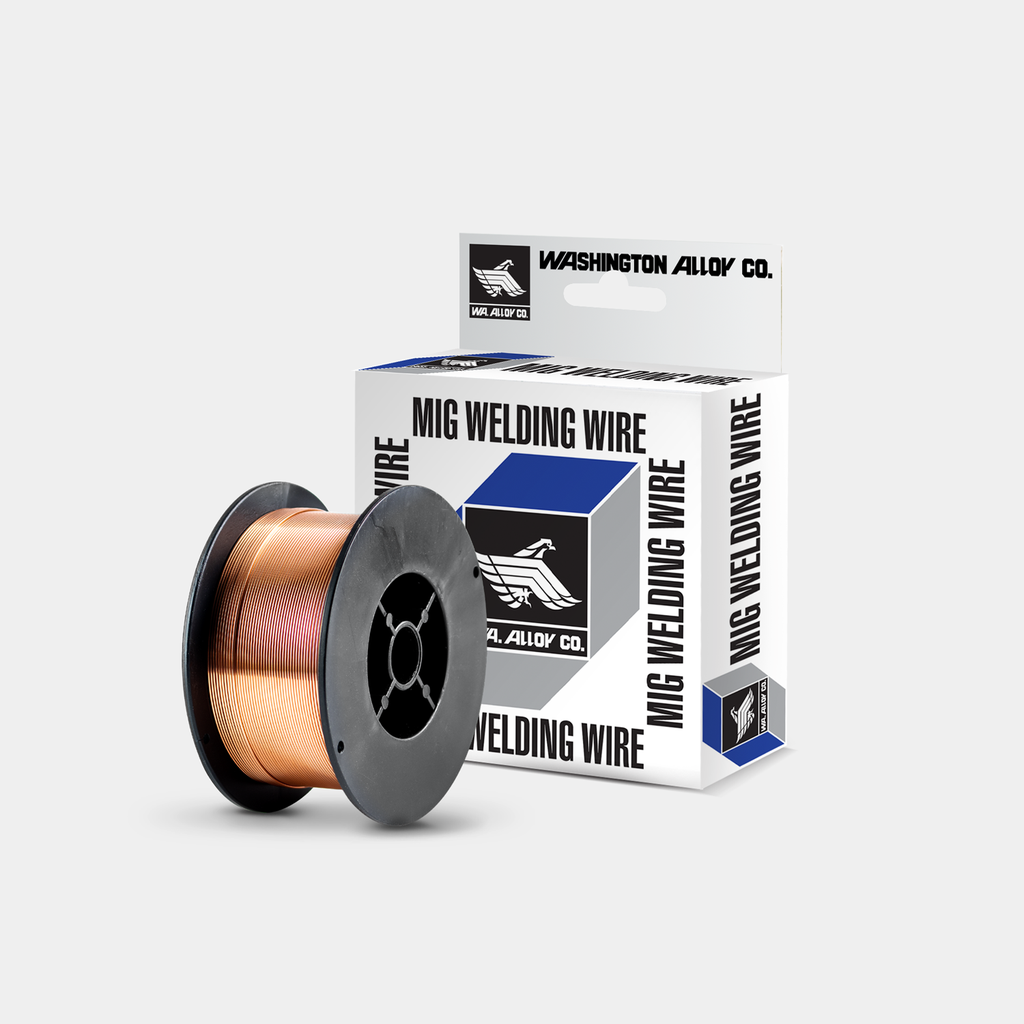

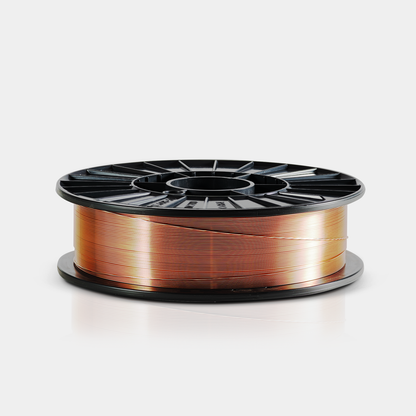

Washington Alloy, TC 70S-6 064, Welding Wire, 0.030 in, ER70S-6, Carbon Steel, 80,380 psi, Copper Coated

ER70S-6 contains high levels of manganese and silicon for stronger deoxidizing power where stringent cleaning procedures are not possible. This wire has been designed to provide X-ray quality porosity-free welds and the highest tensile strength (as welded) of the plain carbon steel wires. The high silicon content increases the fluidity of the weld pool, creating a smoother bead appearance and resulting in minimal post-weld grinding. ER70S-6 is excellent where poor fit-ups or rusty and oily plates may be used

• Size: 0.030 in.
• Weight: 550 lb
• Material: Carbon Steel
• Alloy: ER70S-6
• Manganese Content: 1.40-1.85%
• Silicon Content: 0.80-1.15%
• Carbon Content: 0.06-0.15%
• Typical Tensile Strength: 80,380 psi
• Typical Yield Strength: 66,587 psi
• Typical Elongation: 24.2%
• Typical Charpy V-Notch Impact: 28 ft lbs at -20 F
• Copper Coating: Premium Copper Coating
• AWS Specification: AWS A5.18 ER70S-6
• ASME Specification: ASME SFA 5.18 ER70S-6
