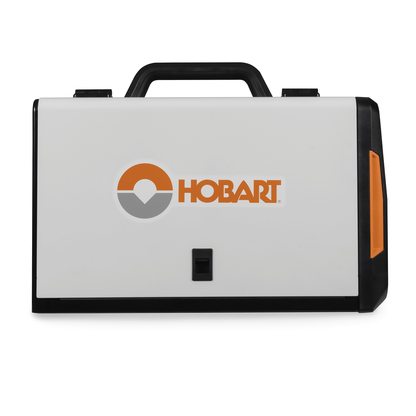

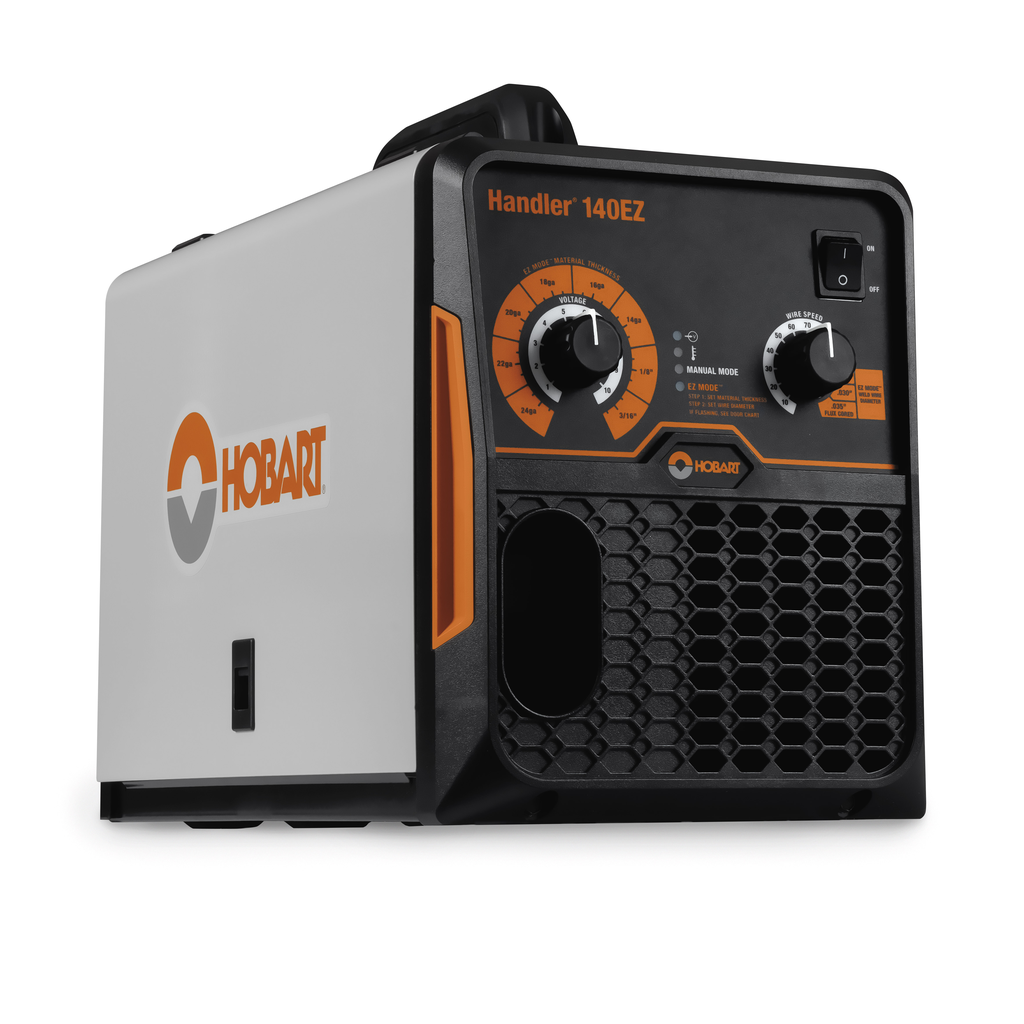

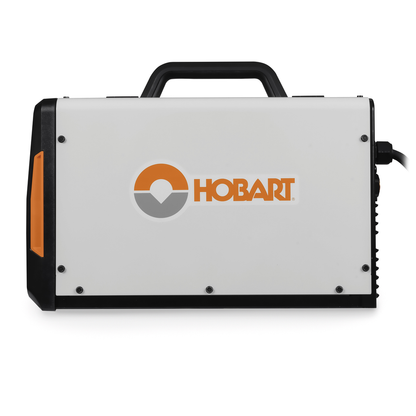

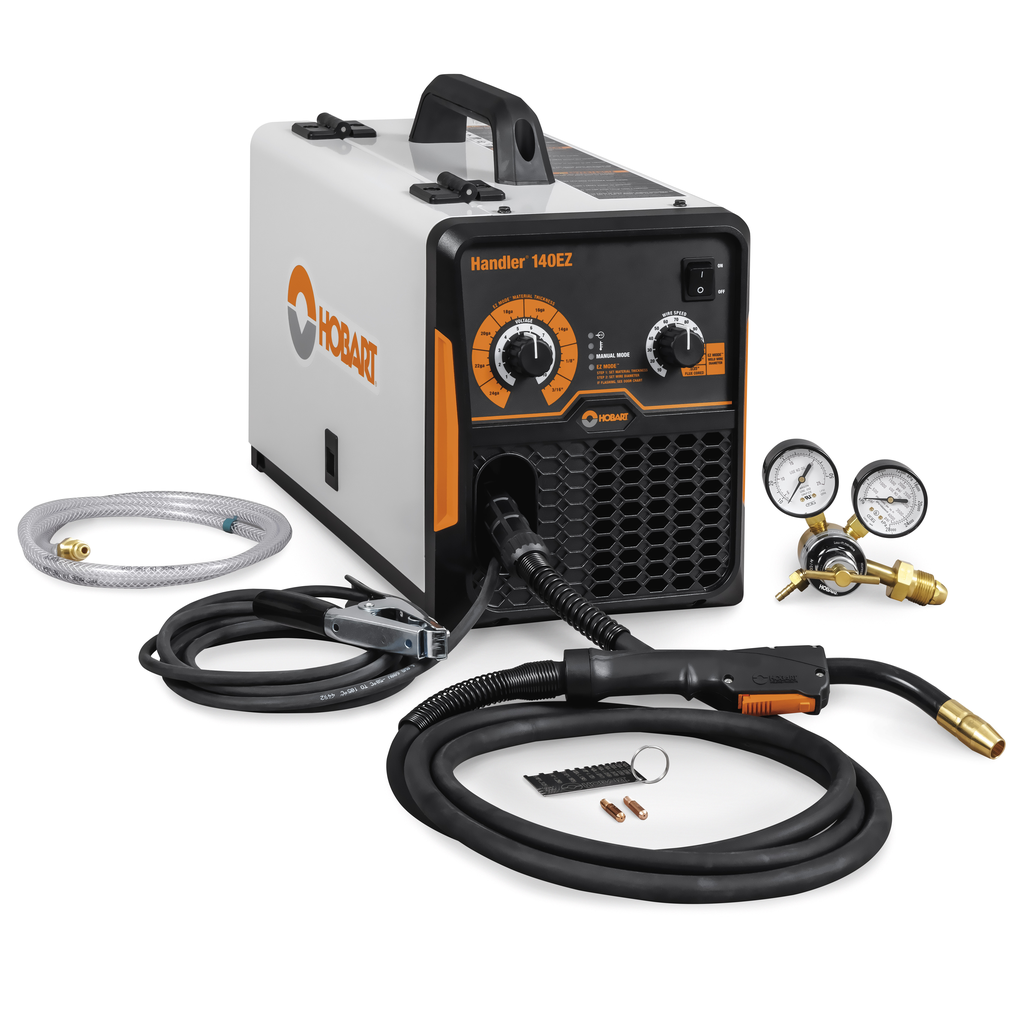

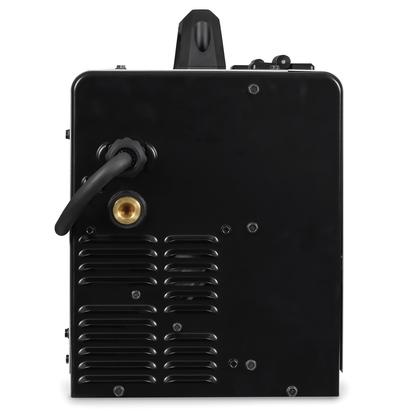

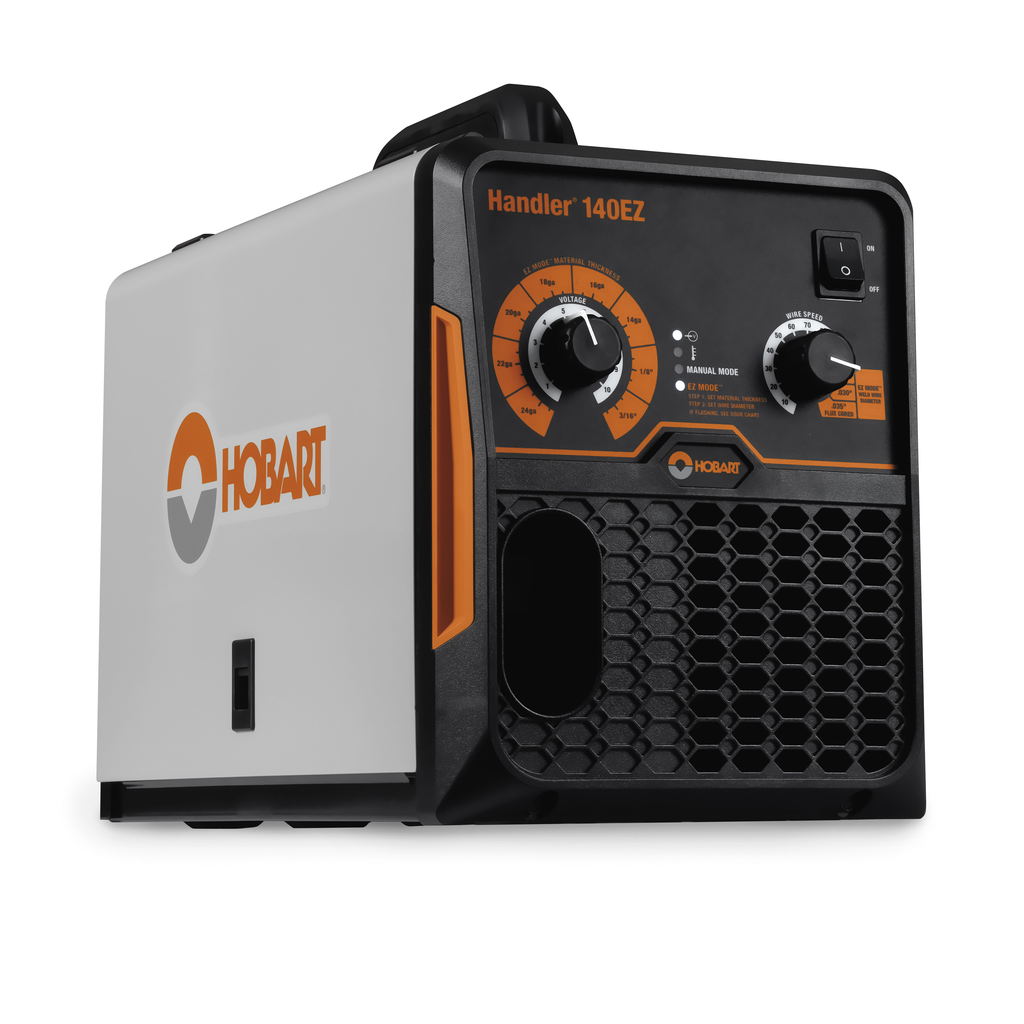

Hobart Welding Products, 500582, MIG Welder, 140 A Max, 3/16 in. Mild Steel, 19.6 in. Length, 1-Phase, 110/115/120 V

A durable, portable wire feed welder that’s great for auto repair, shop or farm projects. Runs on 120V input power, welds up to 3/16th in. mild steel and is flux-cored or MIG ready.

Features

• Arc Performance: Smooth, stable arc on all thicknesses allows you the best arc possible.
• Quick Select drive roll: Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire.

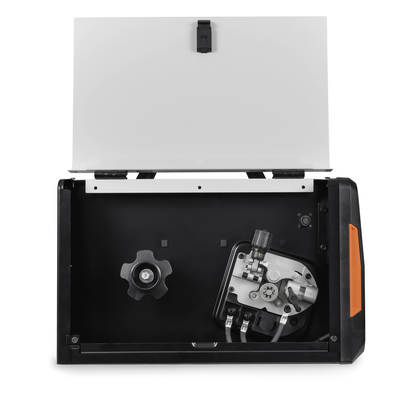

• Industrial cast aluminum wire drive system: Durable wire feed provides you professional performance

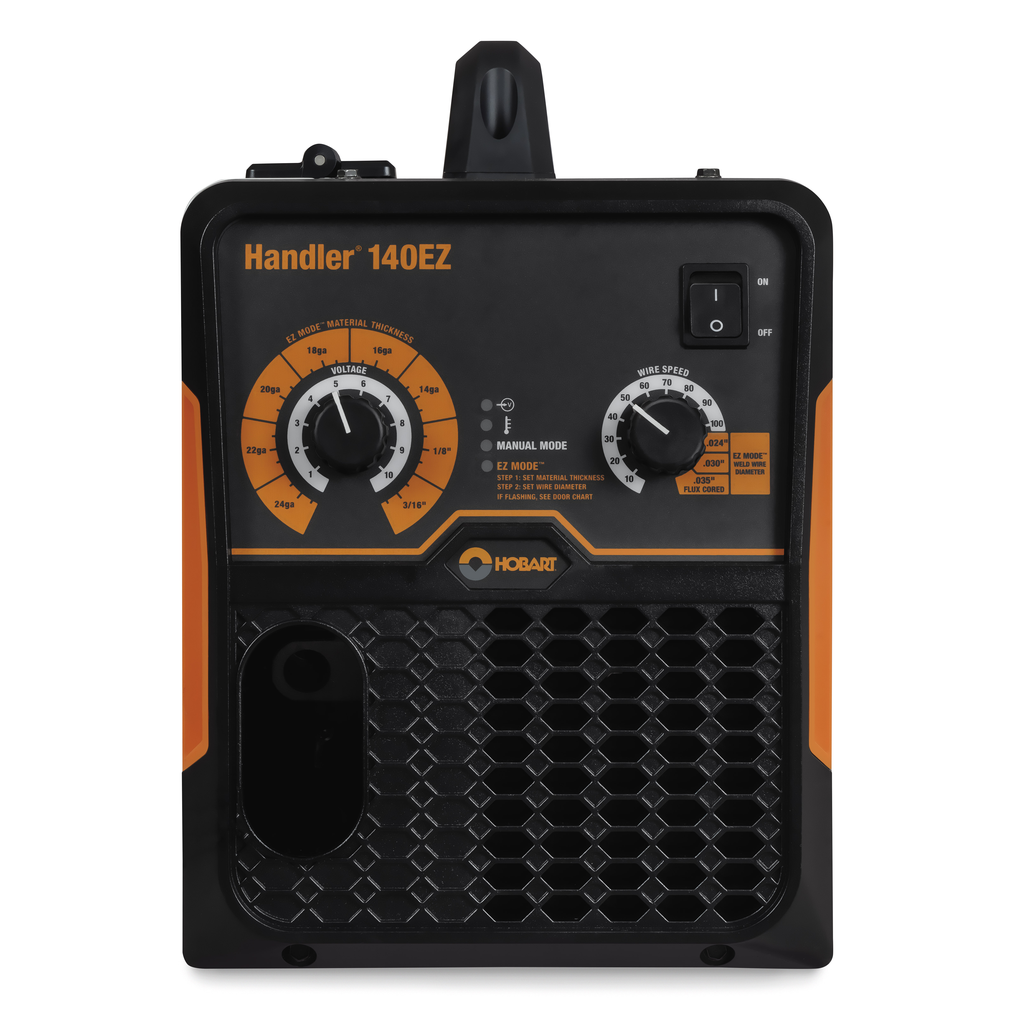

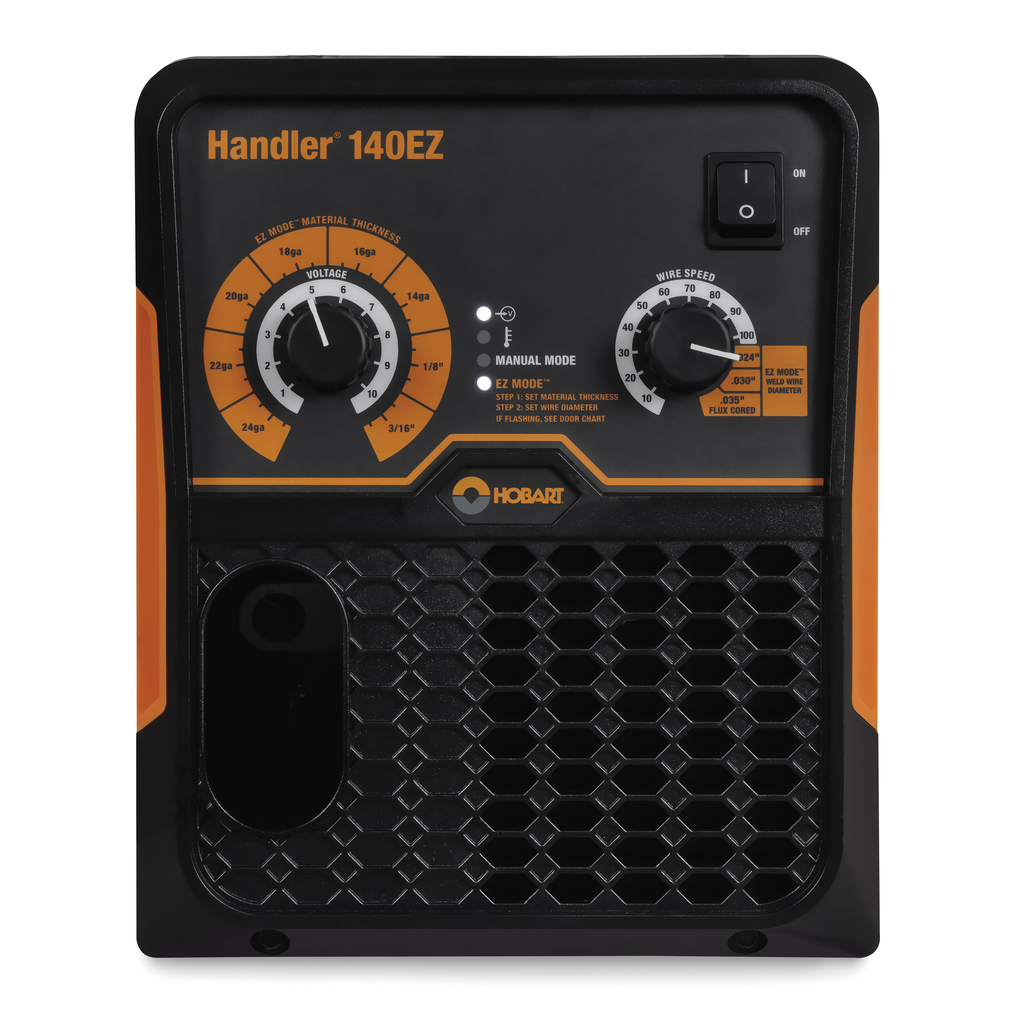

• EZ Mode™: Provides the right setting with a turn of each knob to take the guesswork out of setting parameters.
• Spool gun ready: Easy setup for welding aluminum with no additional interface.

• Amperage: 25 A - 140 A
• Voltage: 110/115/120 V
• Phase: 1-Phase
• Rated Output: 90 A @ 30% duty cycle
• Max Open Circuit Voltage: 30 VDC
• Wire Feed Speed Range: 15 IPM - 360 IPM
• Material Thickness - Mild Steel: 24 ga (0.5 mm) - 3/16 in.
• Length: 19.6 in.
• Width: 9.8 in.
• Height: 14.3 in.
• Weight: 53 lb (24 kg)
• Wire Diameter: 0.024 in. - 0.035 in.; 0.6 mm - 0.9 mm.
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Weld Output: CV
• Current Type: DC
• Input Frequency: 60 Hz
• Spool Size: 4 or 8 in.
• Material: Cast Aluminum (wire drive system)
• Country of Origin: United States
• Compliance: Certified to Canadian and U.S. standards
