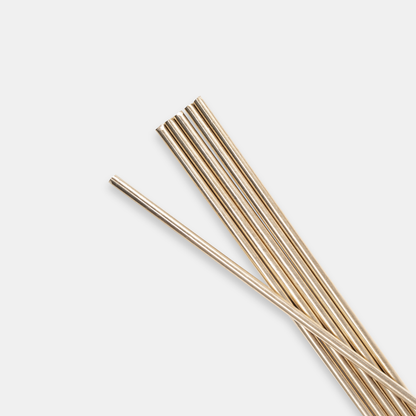

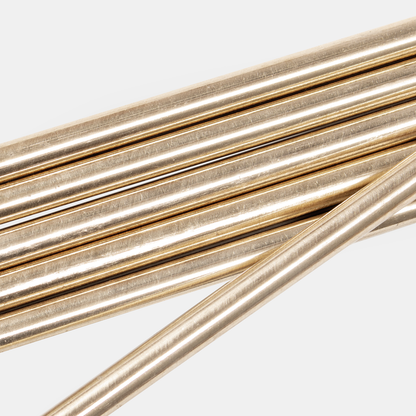

Washington Alloy, TM LFB/06, Brazing Rod, 1/8 in, RBCuZn-C, Yellow Brass, 1330-1550 F

Washington Alloy Low Fuming Bronze is a general-purpose oxyacetylene brazing rod used for steel, copper alloys, cast iron, nickel alloys, and stainless steel. A balanced chemical analysis of copper and zinc, as well as alloying elements of tin, iron, manganese, and silicon, produce weld deposits that are easily attained simply by applying a neutral or slightly oxidizing flame. The high silicon content of Washington Alloy Low Fuming Bronze keeps fumes to a minimum. Preheating is required for some applications and bronze brazing flux is required for the bare rods.

• Size: 1/8 in.
• Alloy Type: RBCuZn-C
• AWS A5.8 Class: RBCuZn-C
• Brazing Range: 1330-1550 F (721-843 C)
• Solidus Temperature: 1590 F (866 C)
• Liquidus Temperature: 1630 F (888 C)
• Hardness: 80-100 Brinell
• Tensile Strength: 60,000-68,000 psi
• Material Composition: Copper 56-60%, Zinc Balance, Tin 0.80-1.10%, Iron 0.25-1.20%, Manganese 0.01-0.50%, Silicon 0.04-0.15%
• Color: Yellow Brass
