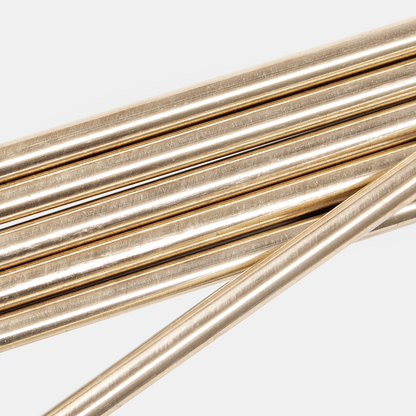

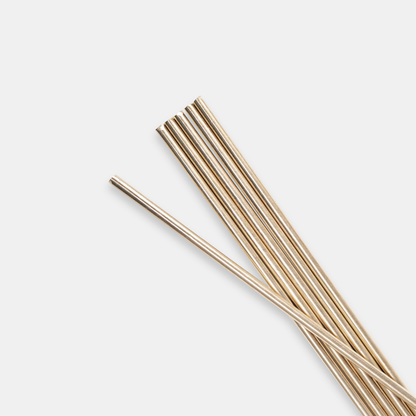

Washington Alloy, TM LFB 06, Brazing Rod, 1/8 in, Flux Coated, Low Fuming Bronze, RBCuZn-C

Washington Alloy Low Fuming Bronze is a general-purpose oxyacetylene brazing rod used for steel, copper alloys, cast iron, nickel alloys, and stainless steel. A balanced chemical analysis of copper and zinc, as well as alloying elements of tin, iron, manganese, and silicon, produce weld deposits that are easily attained simply by applying a neutral or slightly oxidizing flame. The high silicon content of Washington Alloy Low Fuming Bronze keeps fumes to a minimum. Preheating is required for some applications and bronze brazing flux is required for the bare rods.

• Size: 1/8 in.
• Rod Type: Flux Coated
• Alloy Standard: RBCuZn-C
• Material: Low Fuming Bronze (Copper, Zinc, Tin, Iron, Manganese, Silicon)
• Chemical Composition - Copper: 56.0-60.0%
• Chemical Composition - Zinc: Balance
• Chemical Composition - Tin: 0.80-1.10%
• Chemical Composition - Iron: 0.25-1.20%
• Chemical Composition - Manganese: 0.01-0.50%
• Chemical Composition - Silicon: 0.04-0.15%
• Chemical Composition - Other Elements: 0.50% max (including Pb 0.05%, Al 0.01%)
• Solidus Temperature: 1590 F (866 C)
• Liquidus Temperature: 1630 F (888 C)
• Brazing Range: 1330-1550 F (721-843 C)
• Hardness: 80-100 Brinell
• Tensile Strength: 60,000-68,000 psi
