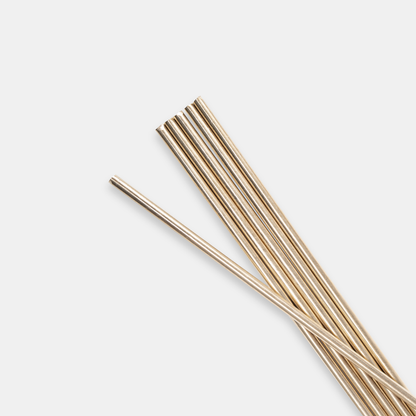

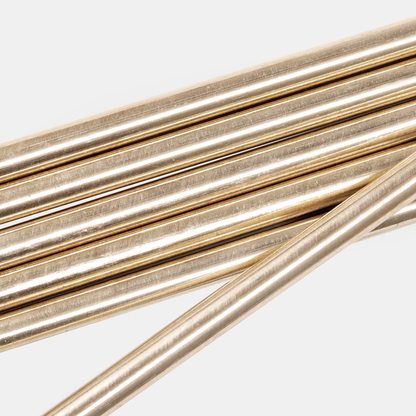

Washington Alloy, TCU LFB 09, Brazing Rod, 1/4 in, RBCuZn-C, Copper; Zinc; Tin; Iron; Manganese; Silicon

Washington Alloy Low Fuming Bronze is a general-purpose oxyacetylene brazing rod used for steel, copper alloys, cast iron, nickel alloys, and stainless steel. A balanced chemical analysis of copper and zinc, as well as alloying elements of tin, iron, manganese, and silicon, produce weld deposits that are easily attained simply by applying a neutral or slightly oxidizing flame. The high silicon content of Washington Alloy Low Fuming Bronze keeps fumes to a minimum. Preheating is required for some applications and bronze brazing flux is required for the bare rods

• Size: 1/4 in.
• Alloy: RBCuZn-C
• Material: Copper, Zinc, Tin, Iron, Manganese, Silicon
• Copper Content: 56.0-60.0%
• Zinc Content: Balance
• Tin Content: 0.80-1.10%
• Iron Content: 0.25-1.20%
• Manganese Content: 0.01-0.50%
• Silicon Content: 0.04-0.15%
• Total Other Elements: 0.50% max including Pb 0.05%, Al 0.01%
• Compliance: AWS A5.8/A5.8M, ASME SFA5.8
