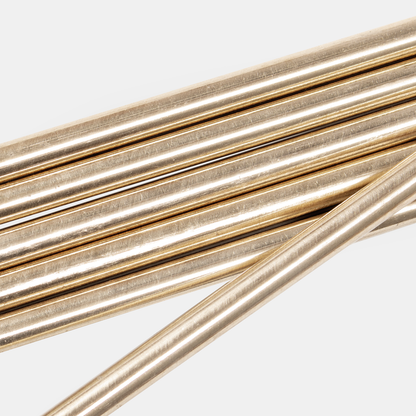

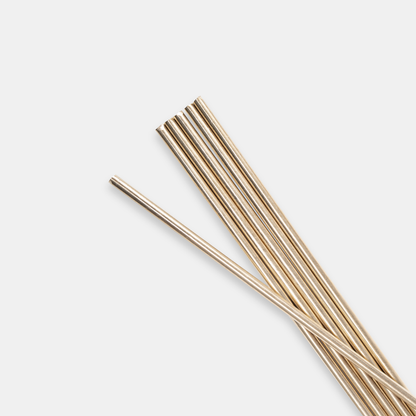

Washington Alloy, TCU LFB 06, Brazing Rod, 1/8 in; 36 in; Flux Coated; RBCuZn-C; Tensile Strength 60,000-68,000 psi

Washington Alloy Low Fuming Bronze is a general-purpose oxyacetylene brazing rod used for steel, copper alloys, cast iron, nickel alloys, and stainless steel. A balanced chemical analysis of copper and zinc, as well as alloying elements of tin, iron, manganese, and silicon, produce weld deposits that are easily attained simply by applying a neutral or slightly oxidizing flame. The high silicon content of Washington Alloy Low Fuming Bronze keeps fumes to a minimum. Preheating is required for some applications and bronze brazing flux is required for the bare rods

• Size: 1/8 in.
• Length: 36 in.
• Alloy Type: RBCuZn-C
• Rod Type: Flux Coated
• Tensile Strength: 60,000-68,000 psi
• Hardness: 80-100 Brinell
• Solidus Temperature: 1590 F (866 C)
• Liquidus Temperature: 1630 F (888 C)
• Brazing Range: 1330-1550 F (721-843 C)
• Weight: 10 lb
• Material: Copper, Zinc, Tin, Iron, Manganese, Silicon
• AWS A5.8 Class: RBCuZn-C
