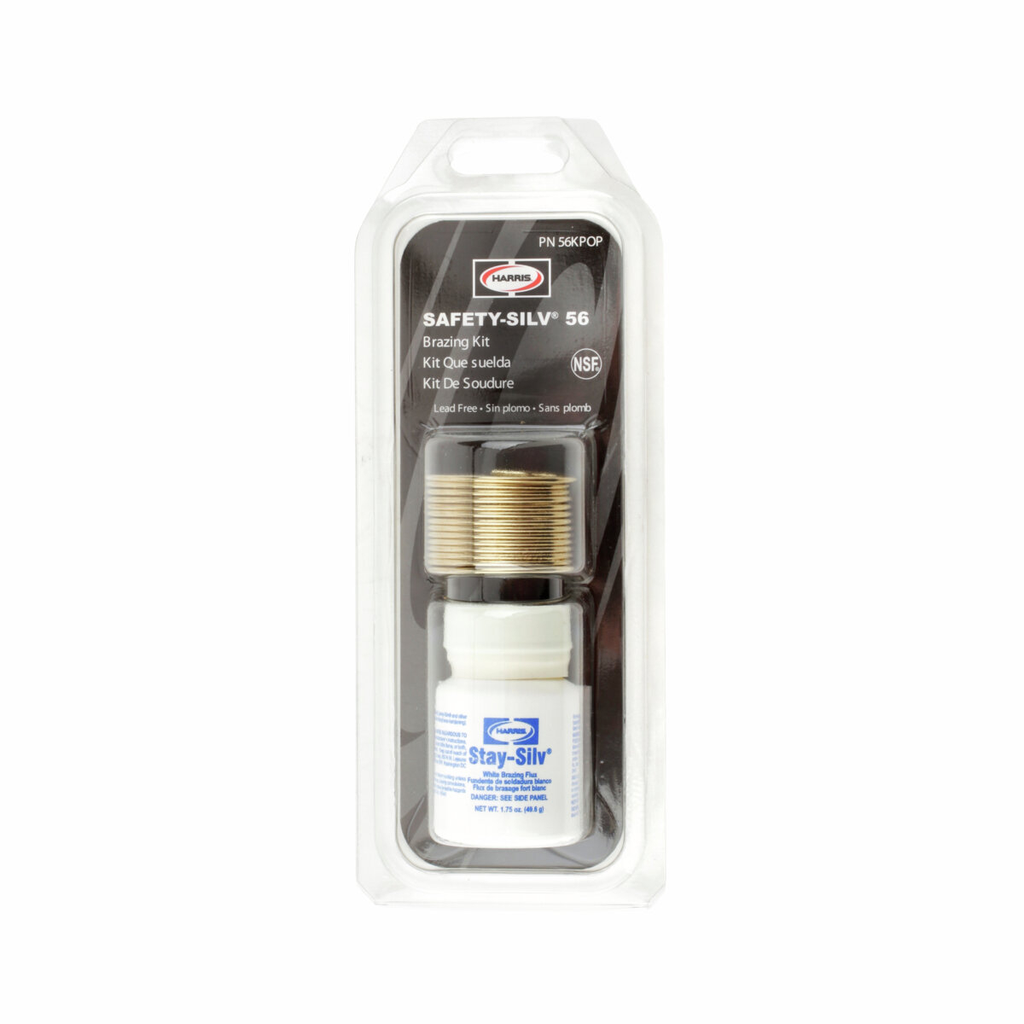

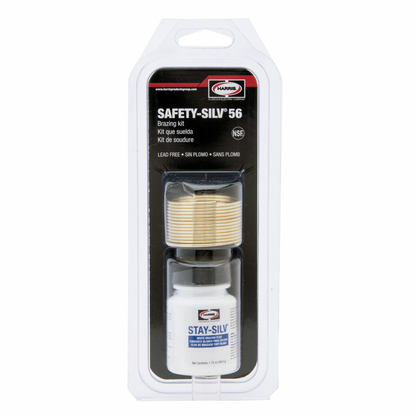

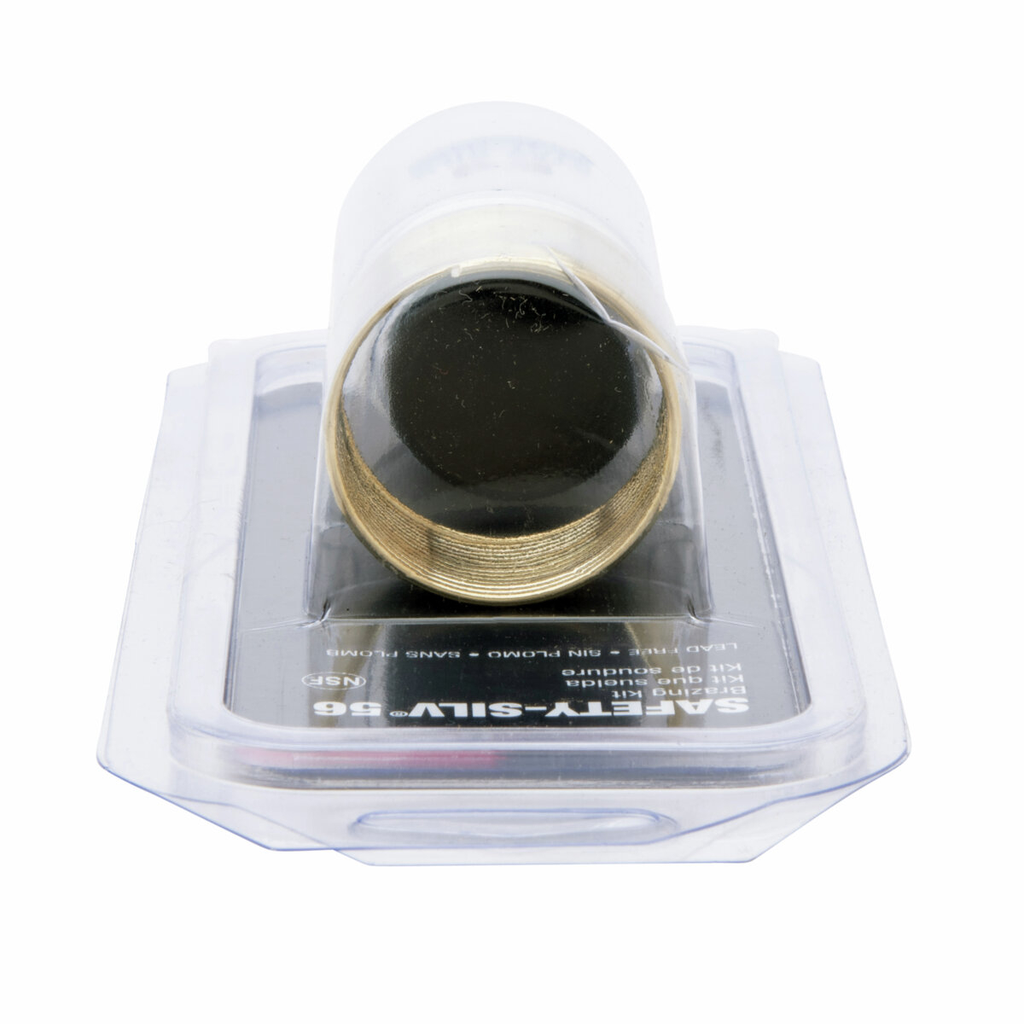

Harris Products Group, 56KPOP, Brazing Alloy Kit, High Silver; 1/16 in. Wire, 1.75 oz. Flux, NSF Compliant

Safety-Silv® 56 is a cadmium-free silver filler metal that produces premium-quality brazes. It is free flowing with unsurpassed capillary attraction and deep penetration with high ductility. Its excellent fluidity promotes braze penetration. Safety-Silv® 56 has a narrow melting range and the lowest melting temperature of all the silver brazing filler metals. This filler metal offers good fluidity and joint strength. Used to braze copper, brass, steel, stainless steel and some nickel filler metals. The silver deposit color is a good match for stainless steel and silverware applications and is suitable for use in the food processing industry. Close tolerances of 0.002 in. - 0.005 in. are recommended for best performance. Certified to NSF Standard 51 for food service equipment. Complies with the EU Reach & RoHS directive. Conveniently packaged for point-of-purchase display.The kit includes 1/16 in. (1.6 mm) wire and 2oz. (56.7g) Stay-Silv® white brazing flux.

Features

• Excellent fluidity promotes penetration
• Ideal for brazing stainless steel for food service industry
• Meets NSF/ANSI Standard 51 for food equipment materials
• Complies with the EU Reach & RoHS directive
• Produces premium quality brazes
• Free-flowing with unsurpassed capillary attraction
• Deep penetration with high ductility
• Silver cadmium-free brazing alloy kit
• Silver color is excellent match for stainless steel and silverware applications

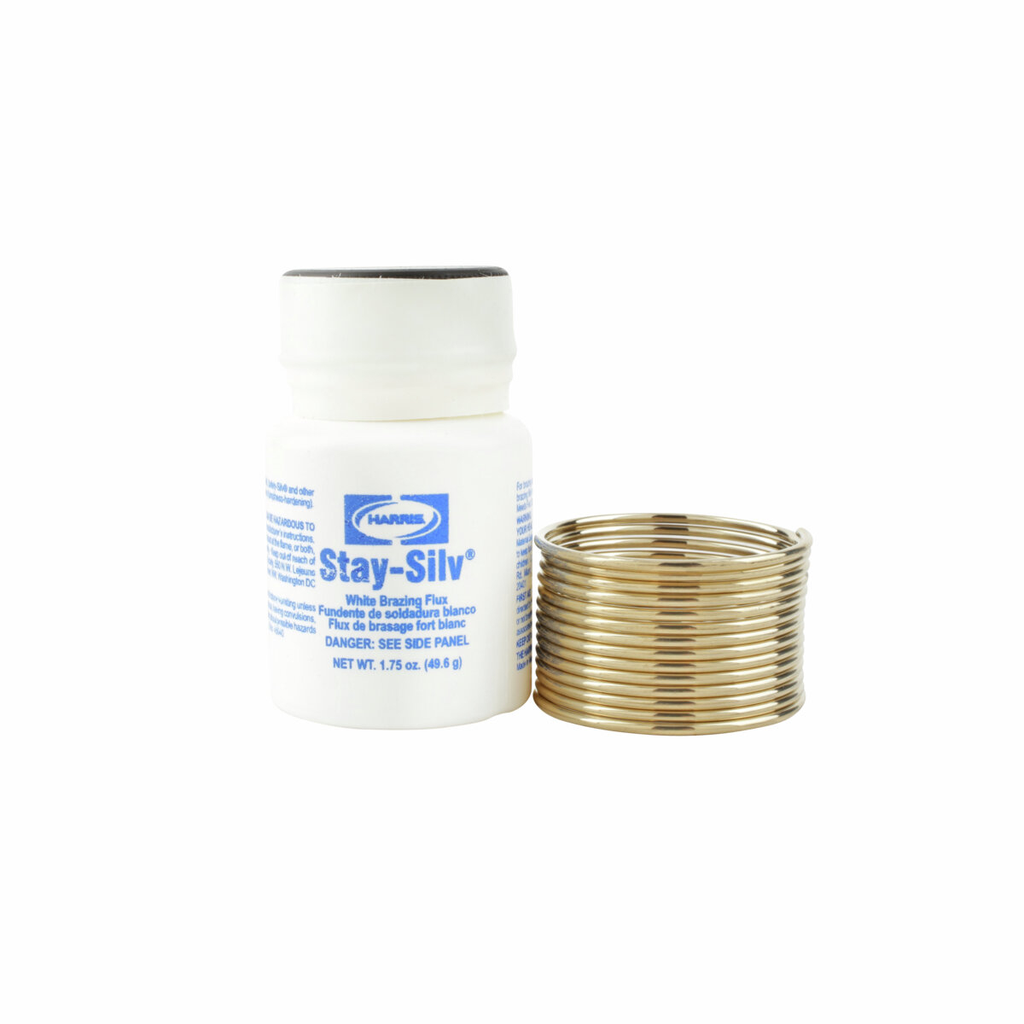

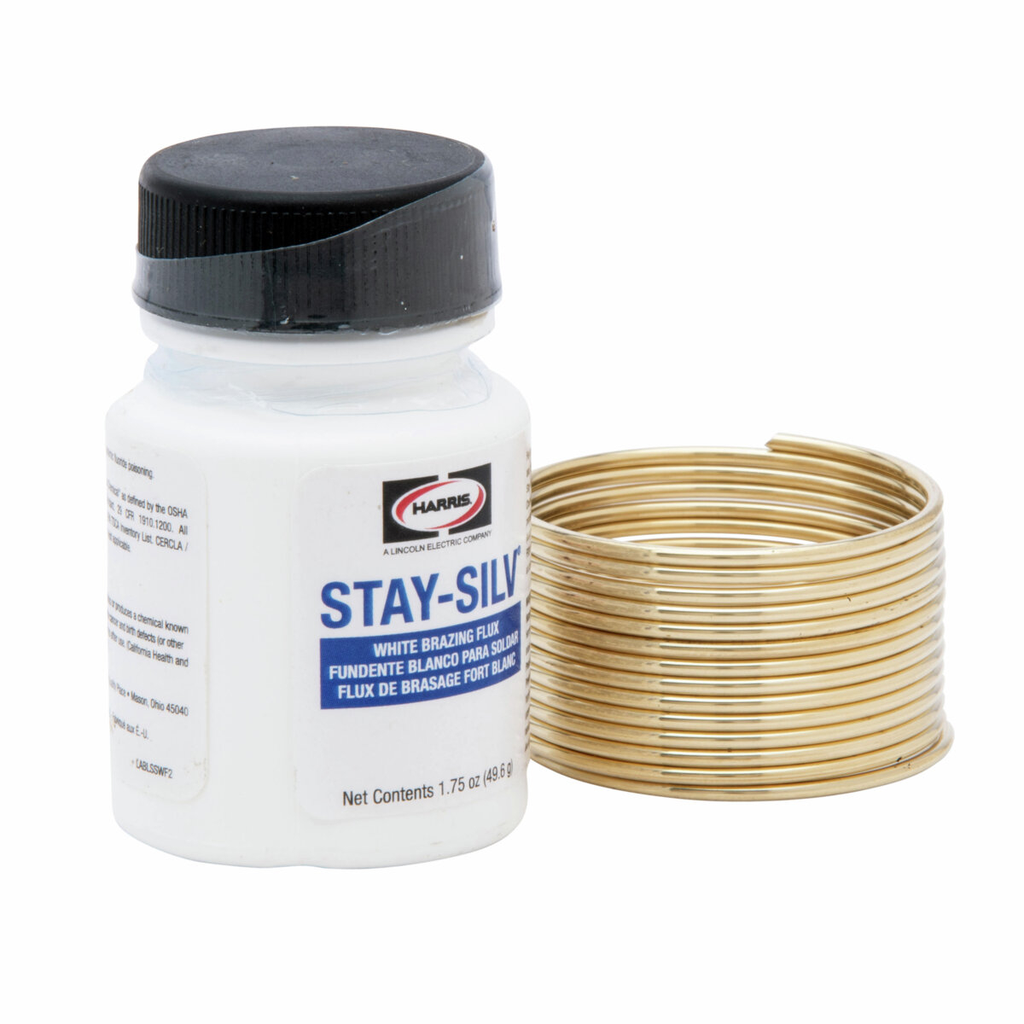

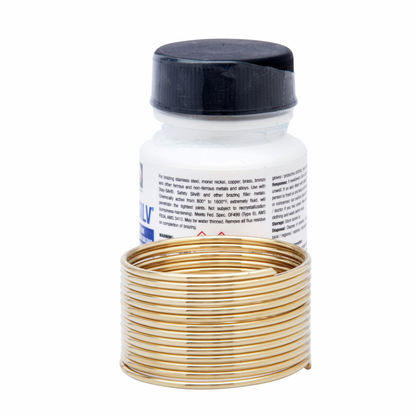

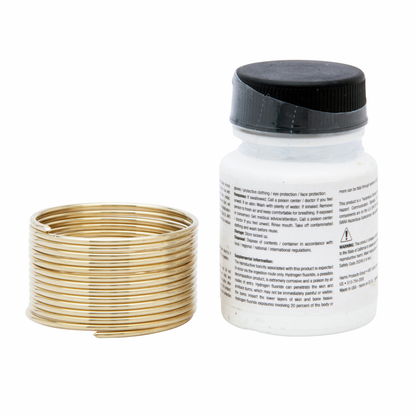

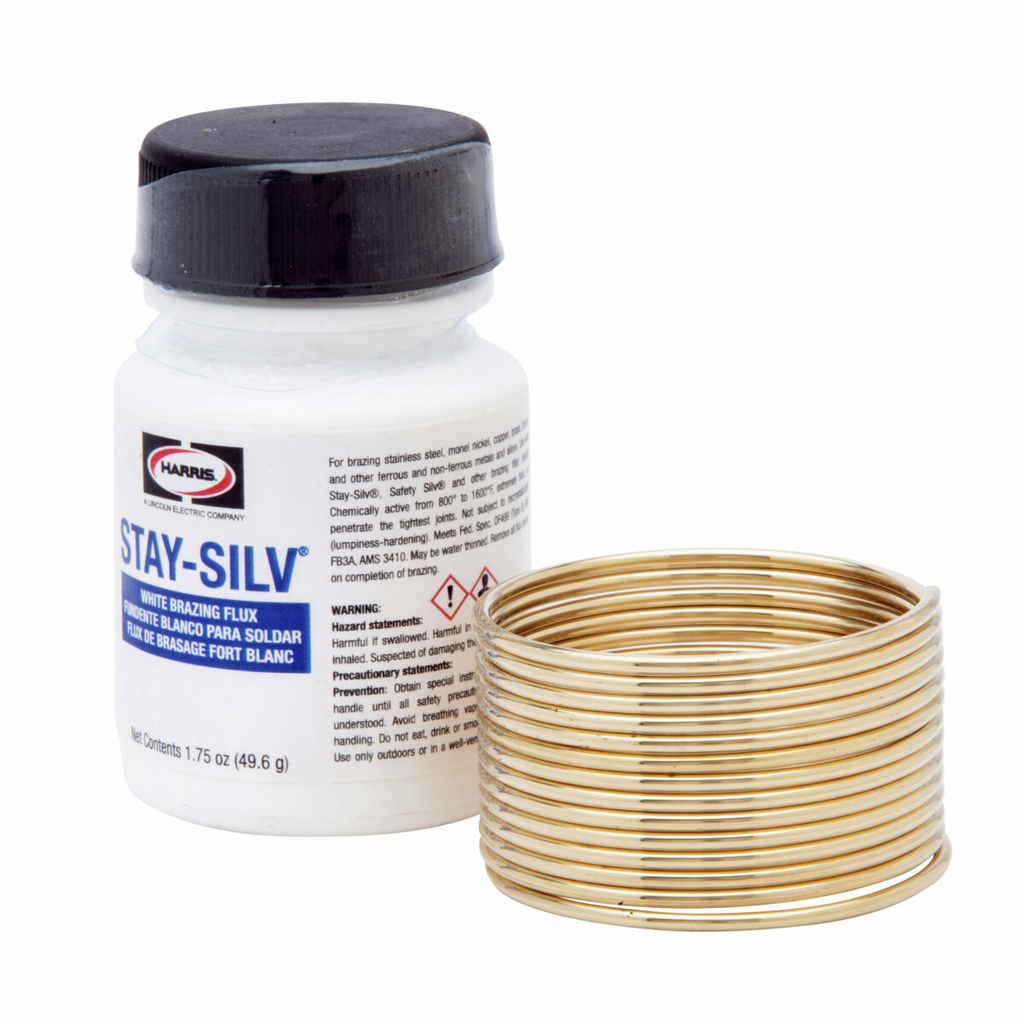

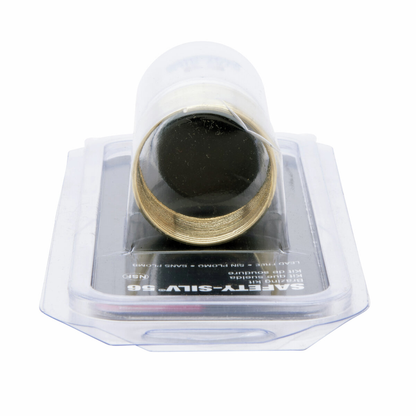

• The kit includes 1/16 in. (1.6 mm) braze wire and 1.75 oz. (49.6 g) Stay-Silv® white brazing flux in convenient clamshell packaging

• Weight: 0.25 lbs
• Wire Diameter: 1/16 in (1.6 mm)
• Flux Weight: 1.75 oz (49.6 g)
• Melting Range: 1205 F - 1400 F (650 C - 760 C)
• Solidus Temperature: 1145 F (618 C)
• Liquidus Temperature: 1205 F (652 C)
• Material: Silver, Cadmium-Free
• Chemical Composition: Silver 55-57%, Copper 21-23%, Zinc 15-19%, Tin 4.5-5.5%, Other 0.15%
• Density: 4.93 t.o./cu.in.
• Electrical Conductivity: 8.32 %IACS
• Compliance: NSF 51, EU REACH, RoHS
• Recommended Tolerance: 0.002 in - 0.005 in
