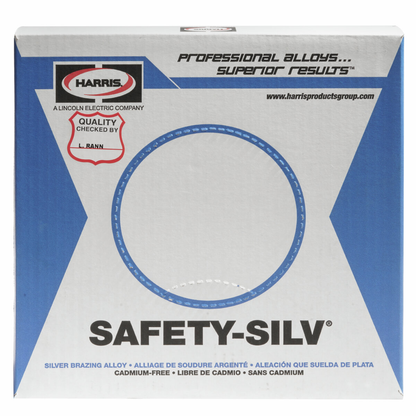

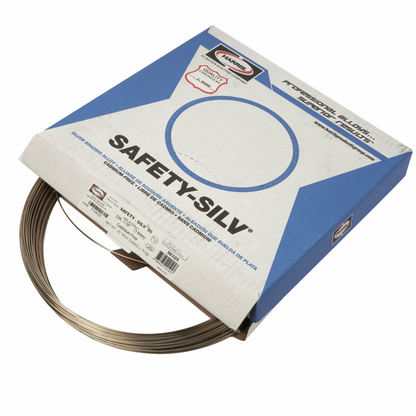

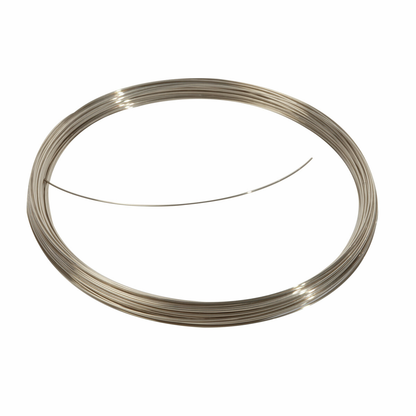

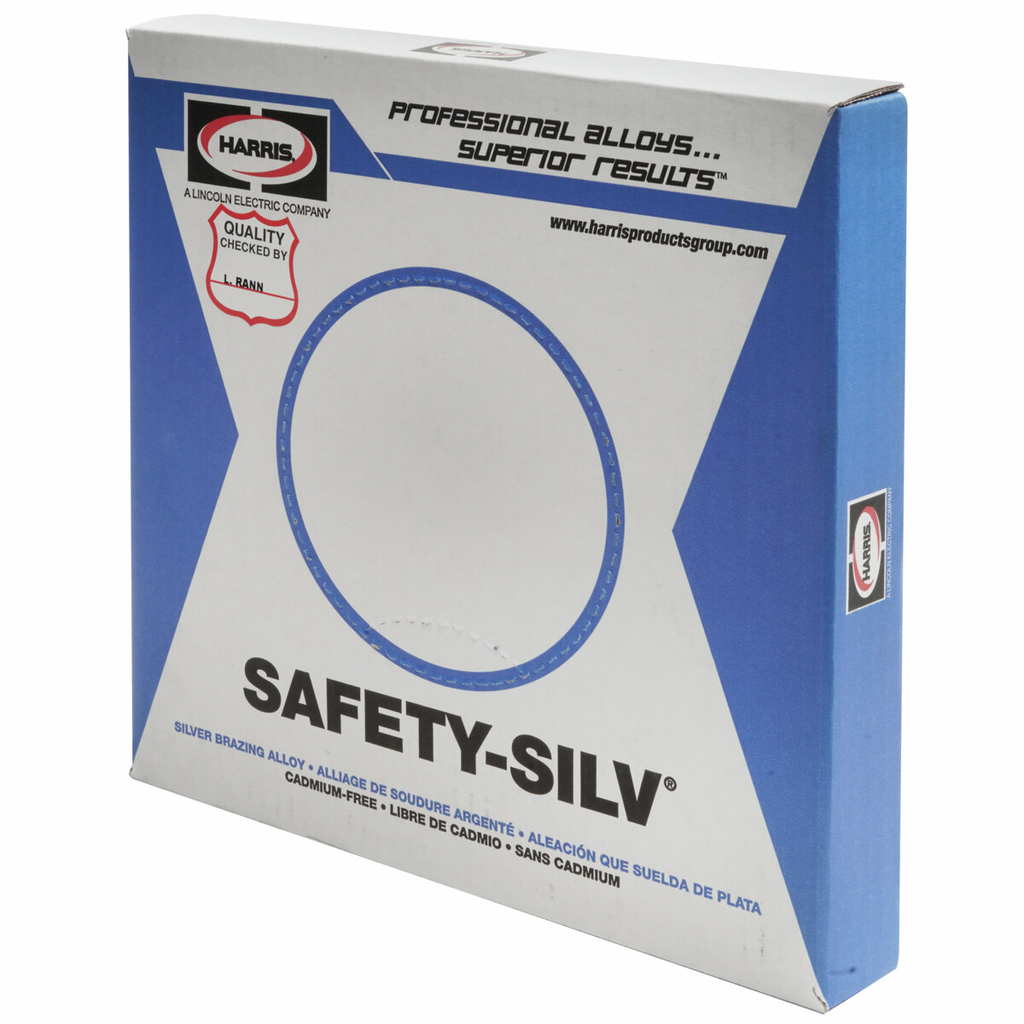

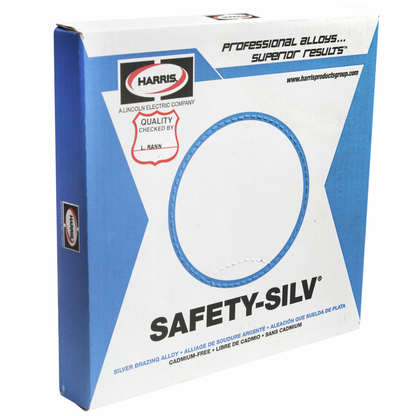

Harris Products Group, 56325, Brazing Alloy, Cadmium-Free, Silver, NSF Standard 51 Certified

Safety-Silv® 56 is a cadmium-free silver filler metal that produces premium-quality brazes. It is free flowing with unsurpassed capillary attraction and deep penetration with high ductility. Its excellent fluidity promotes braze penetration. Safety-Silv® 56 has a narrow melting range and the lowest melting temperature of all the silver brazing filler metals. This filler metal offers good fluidity and joint strength. Used to braze copper, brass, steel, stainless steel and some nickel filler metals. The silver deposit color is a good match for stainless steel and silverware applications and is suitable for use in the food processing industry. Close tolerances of 0.002 in. - 0.005 in. are recommended for best performance. Certified to NSF Standard 51 for food service equipment. Complies with the EU Reach & RoHS directive.

Features

• Silver color is excellent match for stainless steel and silverware applications
• Provides deep penetration with high ductility
• Meets NSF/ANSI Standard 51 for food equipment materials
• Free-flowing with unsurpassed capillary attraction
• Produces premium quality brazes
• Complies with the EU Reach & RoHS directive
• Silver cadmium-free brazing alloy
• Excellent fluidity promotes penetration
• Ideal for brazing stainless steel for the food service industry

• Weight: 0.07 lbs
• Material Composition: Silver 55-57%, Copper 21-23%, Zinc 15-19%, Tin 4.5-5.5%, Other 0.15%
• Melting Range: 1205 F - 1400 F (650 C - 760 C)
• Solidus Temperature: 1145 F (618 C)
• Liquidus Temperature: 1205 F (652 C)
• Electrical Conductivity: 8.32 %IACS
• Density: 4.93 t.o./cu.in.
• Cadmium Content: Cadmium-free
• Recommended Brazing Tolerance: 0.002 in - 0.005 in
• Suitable Base Metals: Copper, Brass, Steel, Stainless Steel, Nickel Alloys
• Compliance: ANSI/AWS A5.8 BAg-7, ASME SFA 5.8, QQ-B-654A Class BAg-7, AMS 4763, NSF 51, ISO 17672, EU Reach & RoHS
• Color: Silver deposit color matching stainless steel
