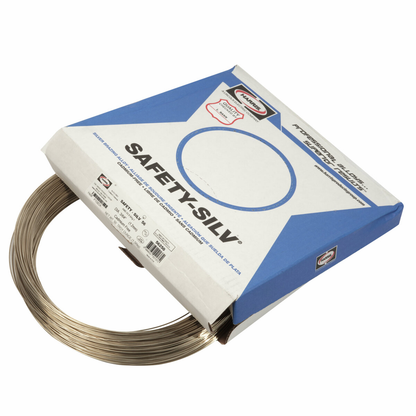

Harris Products Group, 56250, Brazing Alloy, Cadmium-Free, Silver, 0.07 lb

Safety-Silv® 56 is a cadmium-free silver filler metal that produces premium-quality brazes. It is free flowing with unsurpassed capillary attraction and deep penetration with high ductility. Its excellent fluidity promotes braze penetration. Safety-Silv® 56 has a narrow melting range and the lowest melting temperature of all the silver brazing filler metals. This filler metal offers good fluidity and joint strength. Used to braze copper, brass, steel, stainless steel and some nickel filler metals. The silver deposit color is a good match for stainless steel and silverware applications and is suitable for use in the food processing industry. Close tolerances of 0.002 in. - 0.005 in. are recommended for best performance. Certified to NSF Standard 51 for food service equipment. Complies with the EU Reach & RoHS directive.

Features

• Free-flowing with unsurpassed capillary attraction
• Produces premium quality brazes
• Complies with the EU Reach & RoHS directive
• Meets NSF/ANSI Standard 51 for food equipment materials
• Silver cadmium-free brazing alloy
• Ideal for brazing stainless steel for the food service industry
• Excellent fluidity promotes penetration
• Deep penetration with high ductility
• Silver color is excellent match for stainless steel and silverware applications

• Weight: 0.07 lbs
• Material: Silver, Copper, Zinc, Tin
• Silver Content: 55.0-57.0%
• Copper Content: 21.0-23.0%
• Zinc Content: 15.0-19.0%
• Tin Content: 4.5-5.5%
• Other Content: 0.15%
• Solidus Temperature: 1145 F (618 C)
• Liquidus Temperature: 1205 F (652 C)
• Brazing Range: 1205 F-1400 F (650 C-760 C)
• Electrical Conductivity: 8.32 % IACS
• Density: 4.93 t.o./cu.in.
• Compliance: ANSI/AWS A5.8 BAg-7, ASME SFA 5.8, QQ-B-654A Class BAg-7, AMS 4763, NSF Standard 51, ISO 17672 Ag 156, EU Reach, RoHS
