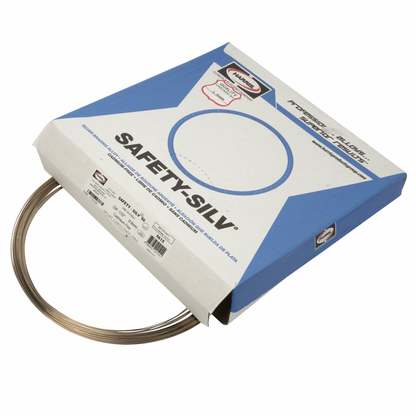

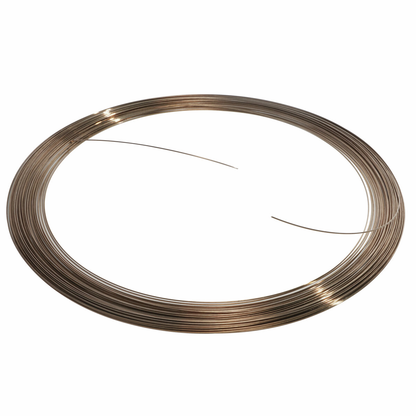

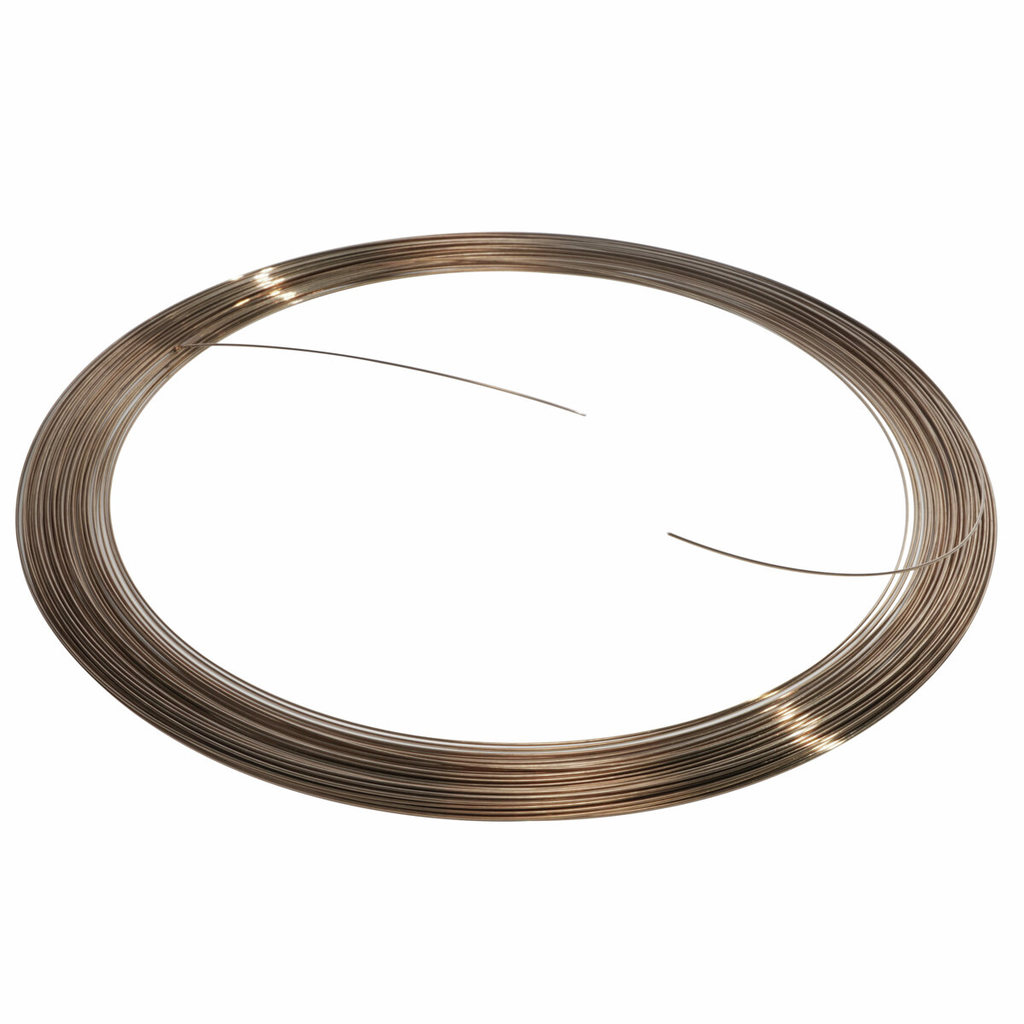

Harris Products Group, 5615, Brazing Alloy, High Silver; NSF Compliant, RoHS Compliant, 1/32 in

Safety-Silv® 56 is a cadmium-free silver filler metal that produces premium-quality brazes. It is free flowing with unsurpassed capillary attraction and deep penetration with high ductility. Its excellent fluidity promotes braze penetration. Safety-Silv® 56 has a narrow melting range and the lowest melting temperature of all the silver brazing filler metals. This filler metal offers good fluidity and joint strength. Used to braze copper, brass, steel, stainless steel and some nickel filler metals. The silver deposit color is a good match for stainless steel and silverware applications and is suitable for use in the food processing industry. Close tolerances of 0.002 in. - 0.005 in. are recommended for best performance. Certified to NSF Standard 51 for food service equipment. Complies with the EU Reach & RoHS directive.

Features

• Silver color is excellent match for stainless steel and silverware applications
• Meets NSF/ANSI Standard 51 for food equipment materials
• Ideal for brazing stainless steel for food service industry
• Free-flowing with unsurpassed capillary attraction
• Excellent fluidity promotes penetration
• Silver cadmium-free brazing alloy
• Deep penetration with high ductility
• Complies with the EU Reach & RoHS directive
• Produces premium quality brazes

• Weight: 0.4 lbs
• Material Composition: Silver 55-57%, Copper 21-23%, Zinc 15-19%, Tin 4.5-5.5%, Other 0.15%
• Thickness: 1/32 in
• Melting Range: 1205 F - 1400 F (650 C - 760 C)
• Solidus: 1145 F (618 C)
• Liquidus: 1205 F (652 C)
• Electrical Conductivity: 8.32 %IACS
• Density: 4.93 t.o./cu.in.
• Cadmium Content: Cadmium-free
• Compliance: NSF 51, RoHS, ANSI/AWS A5.8 BAg-7, ASME SFA 5.8, QQ-B-654A Class BAg-7, AMS 4763, ISO 17672
