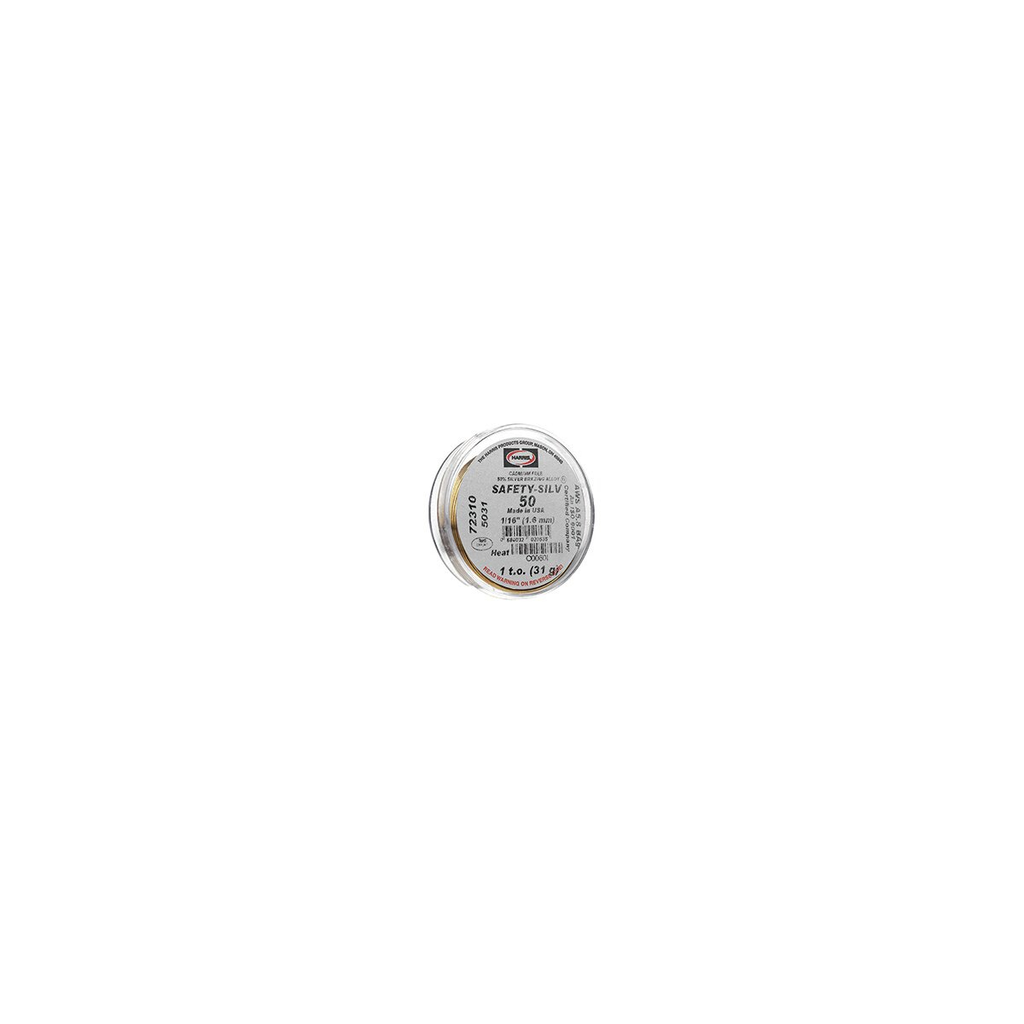

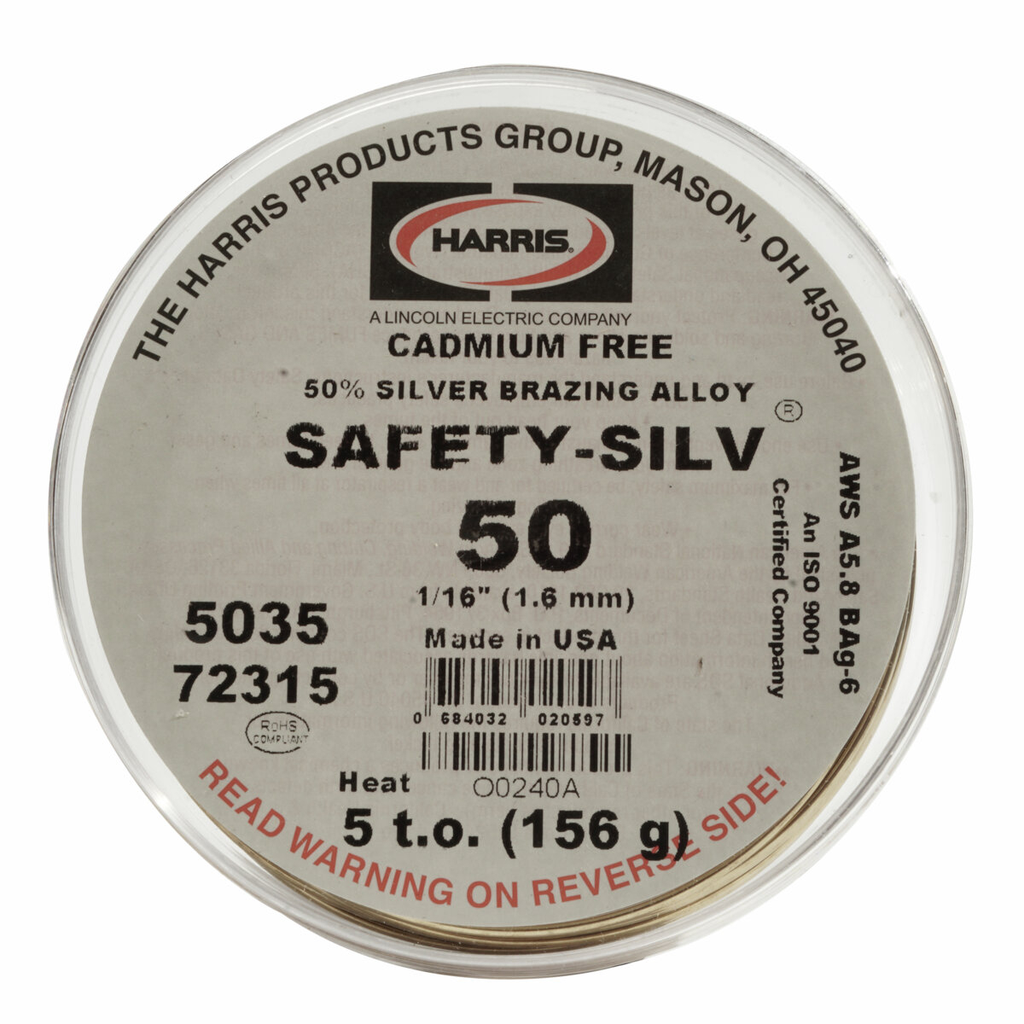

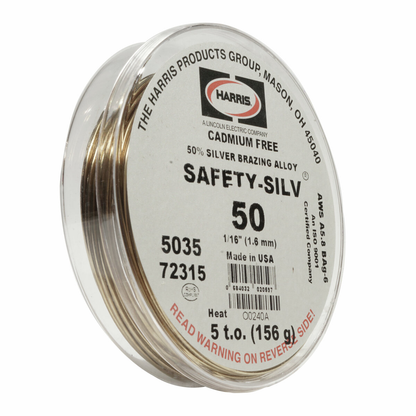

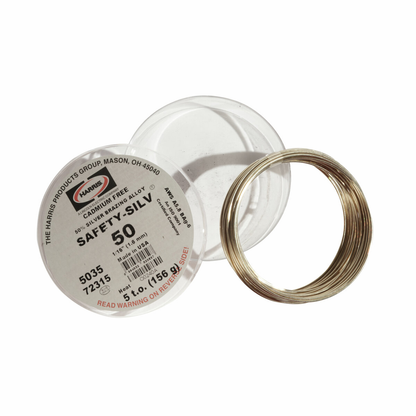

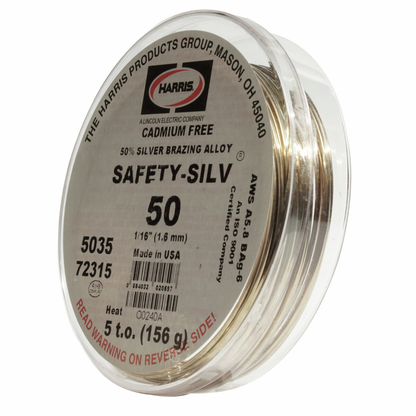

Harris Products Group, 5035, High Silver Brazing Alloy, Cadmium-Free, Melting Range 175 F, Conforms to AWS A5.8 BAg-34

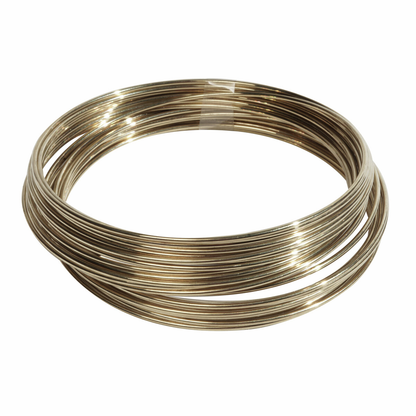

Safety-Silv® 50 is a silver, cadmium-free, brazing filler metal for joining copper, steel, and brass alloys. It has a melting point of approximately 175°F (70°C). This promotes better fill on connections where a wider clearance may be encountered. Safety-Silv® 50 is sometimes used for torch brazing applications where a higher braze joint electrical conductivity is desired. The reduced zinc content improves brazed joint ductility. Conforms to the EU Reach & RoHS directive.

Features

• Melting range promotes better fill on connections where a wider clearance may exist
• Conforms to AWS A5.8 BAg-34 (metal component of cored wire)
• Cadmium-free silver brazing alloy
• Torch brazing applications where a higher braze joint electrical conductivity is desired
• Reduced zinc content improves brazed joint ductility
• Suitable for joining copper, steel and brass alloys
• Complies with the EU Reach & RoHS directive

• Weight: 0.4 lbs
• Silver Content: 49-51%
• Copper Content: 33-35%
• Zinc Content: 14-18%
• Other Elements: 0.15%
• Solidus Temperature: 12706868868F (68868C)
• Liquidus Temperature: 142568F (77468C)
• Melting Range: 142568F - 160068F (77568C - 87068C)
• Electrical Conductivity: 25.5% IACS
• Density: 4.94 Troy oz/cu.in.
• Material: Silver, Copper, Zinc
• Compliance: ANSI/AWS A5.8, ASME SFA 5.8, ISO 17672, EU Reach, RoHS
• Cadmium Content: Cadmium-free
