Harris Products Group, 45KPOP, Brazing Alloy Kit, High Silver; Cadmium-Free, 1/16 in. Wire, 1.75 oz. Flux

Safety-Silv® 45 kit is an excellent General Purpose silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and stainless steel. A cadmium-free filler metal with a melting range of approximately 145°F, Safety-Silv® 45 provides good fillet forming qualities and is suitable for filling loose connections. The filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm). Color is silver to light yellow. The kit includes 1/16 in. (1.6 mm) wire and 2oz. (56.7g) Stay-Silv® white brazing flux. Conforms to the EU Reach & RoHS directive. Conveniently packaged for point-of-purchase display.

Features

• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Good ductility and capillary flow
• Fillet forming qualities are suitable for filling loose connections

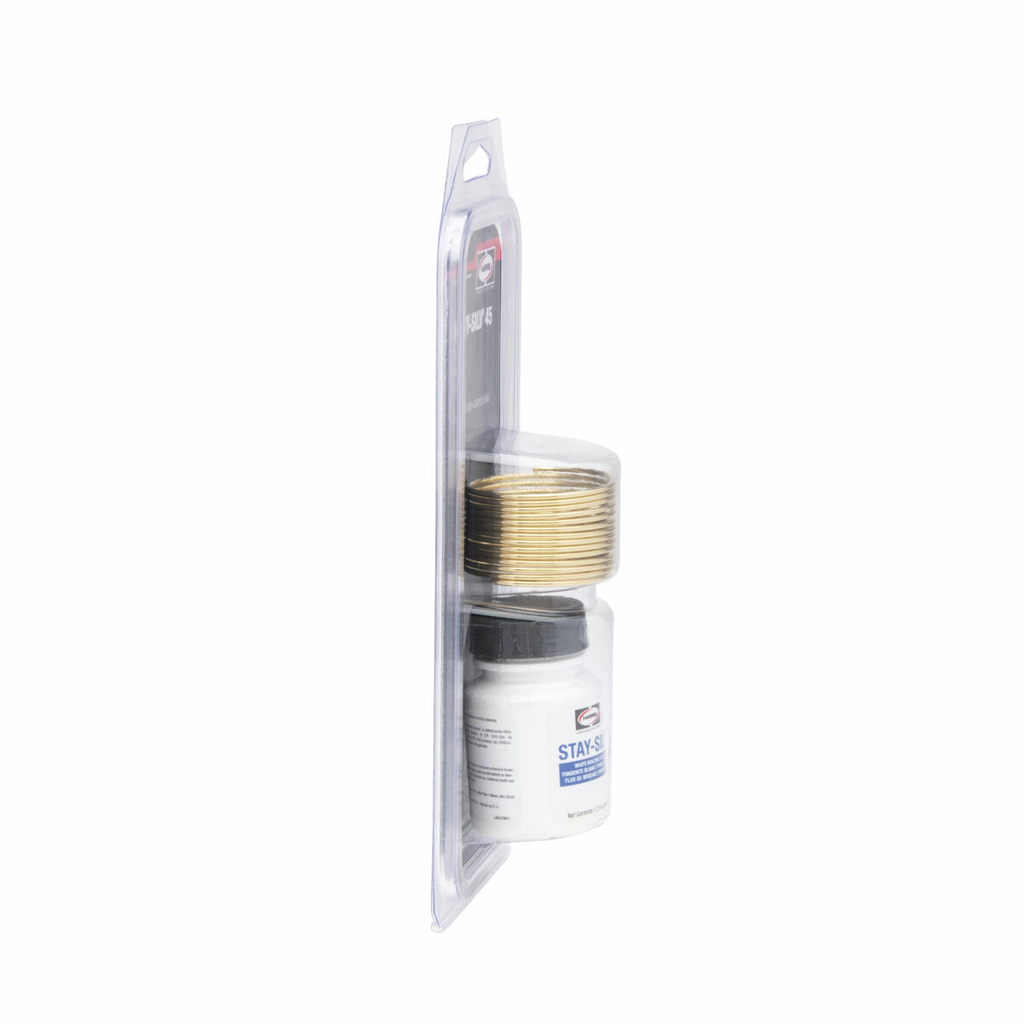

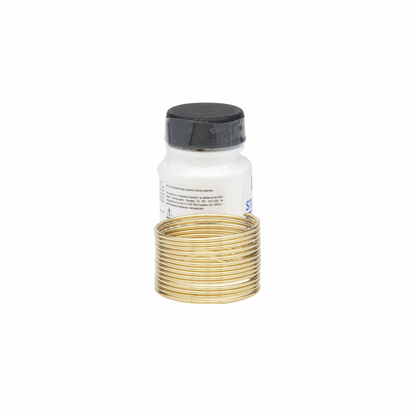

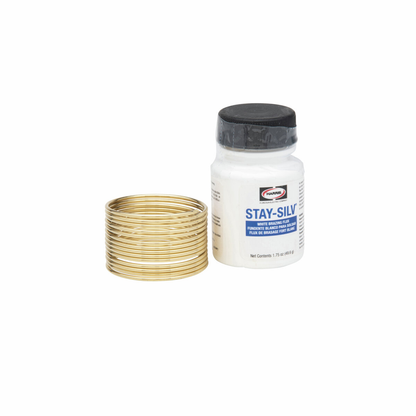

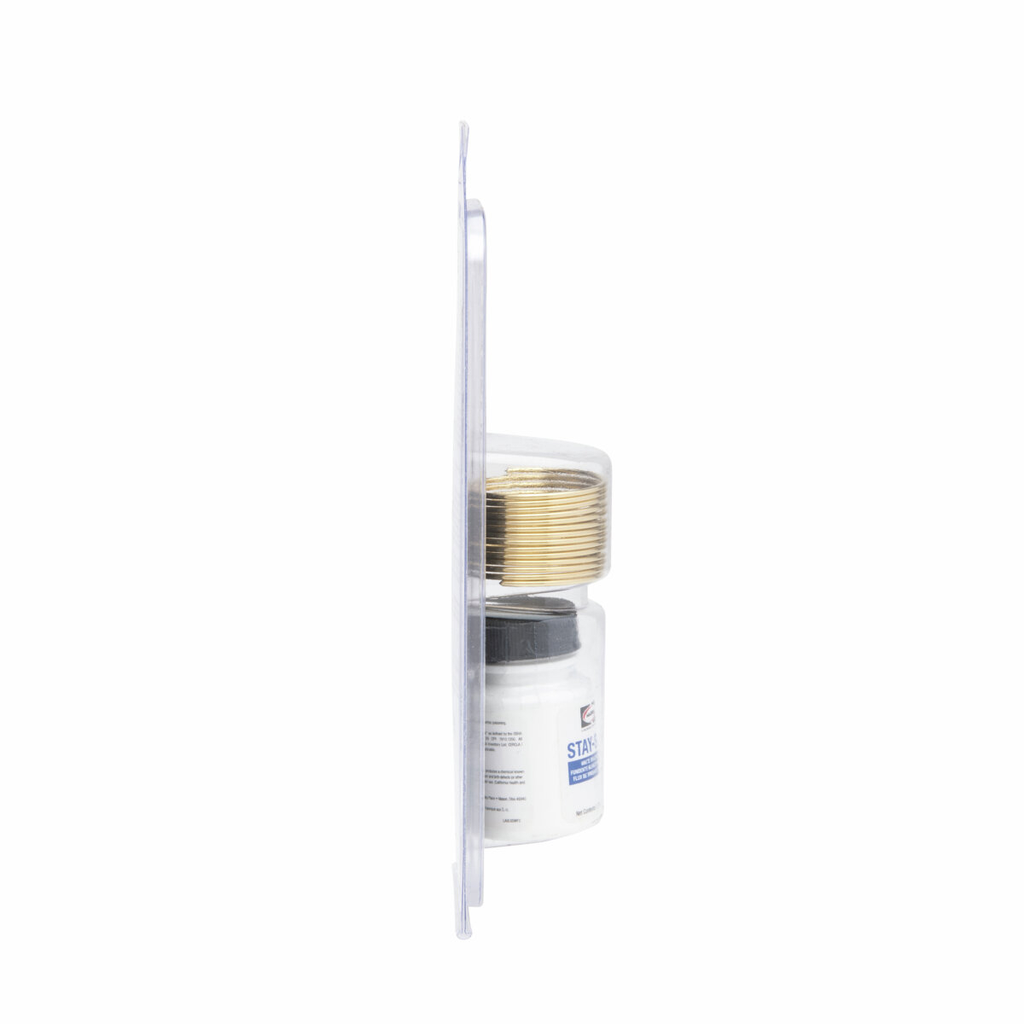

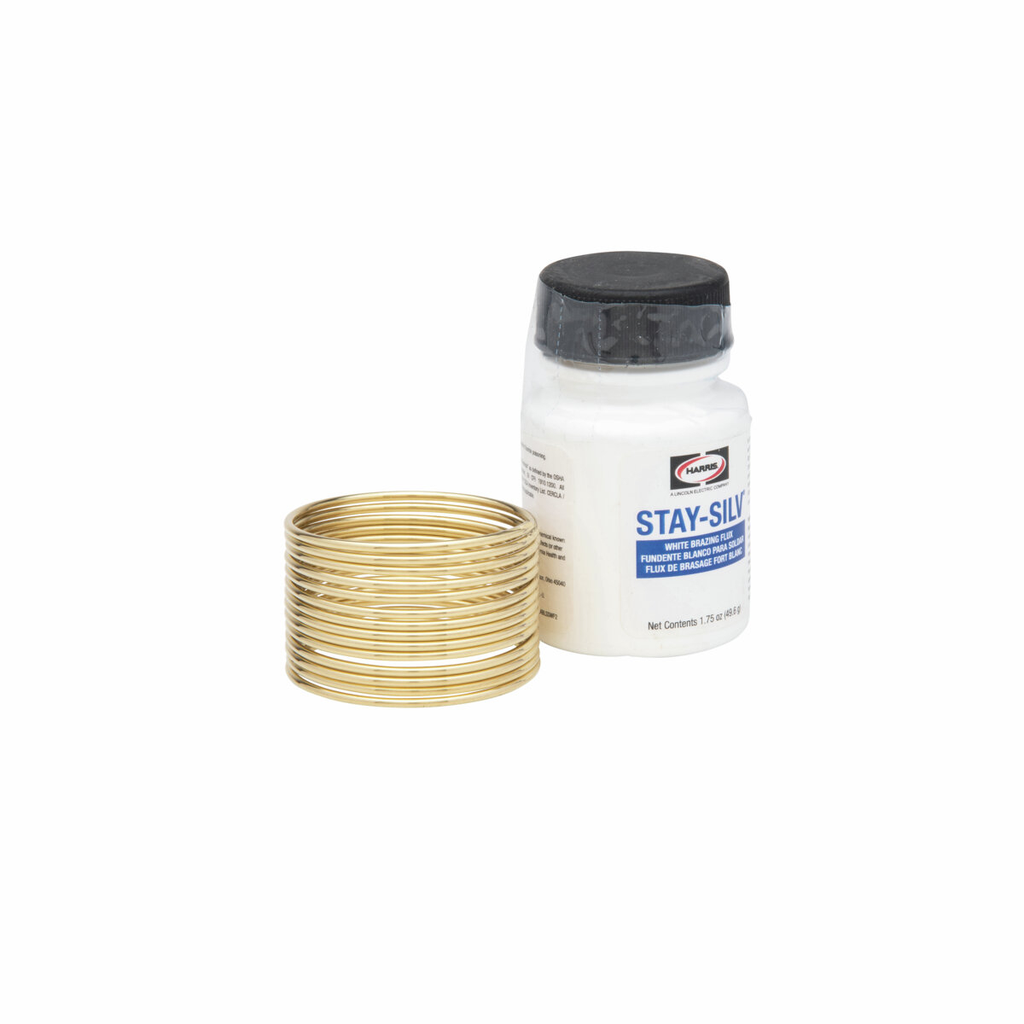

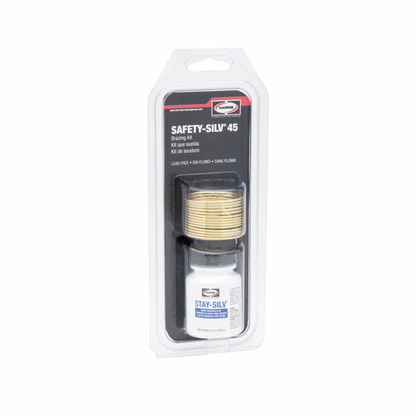

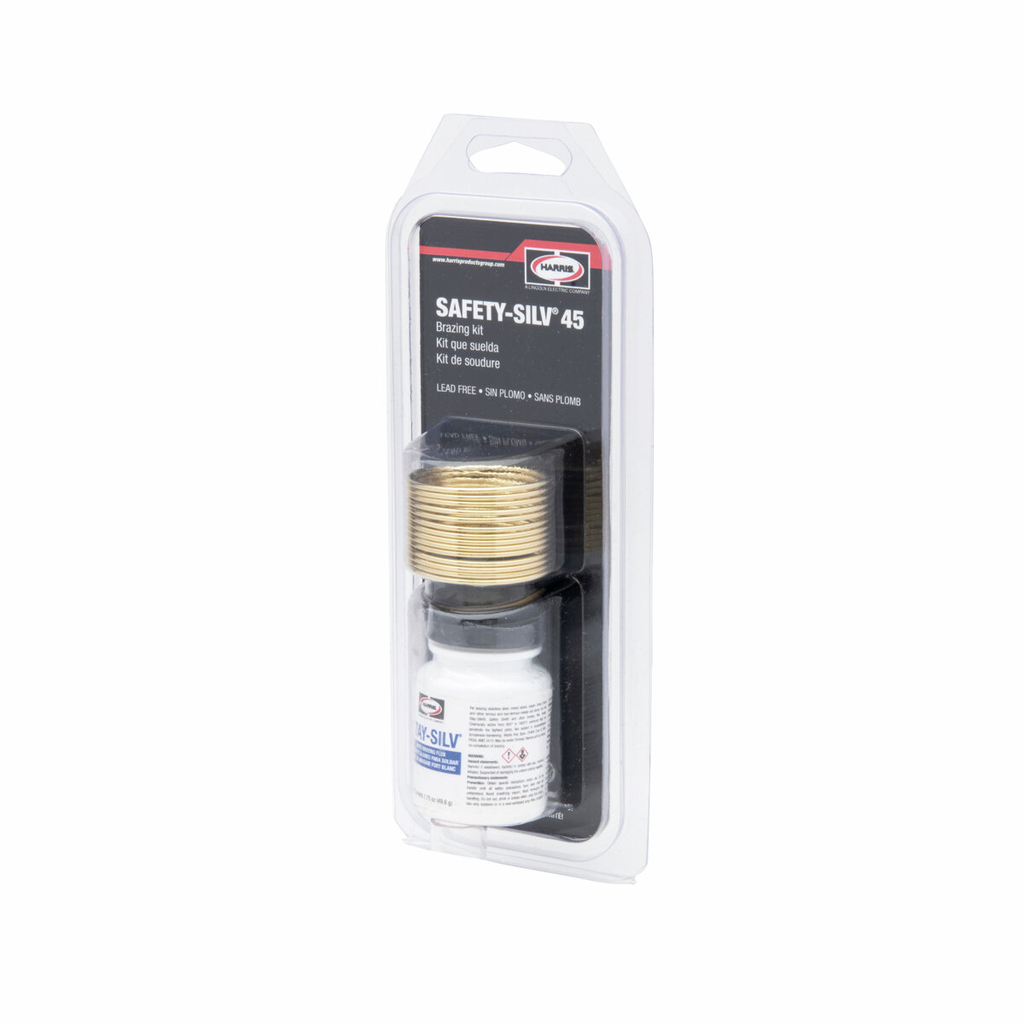

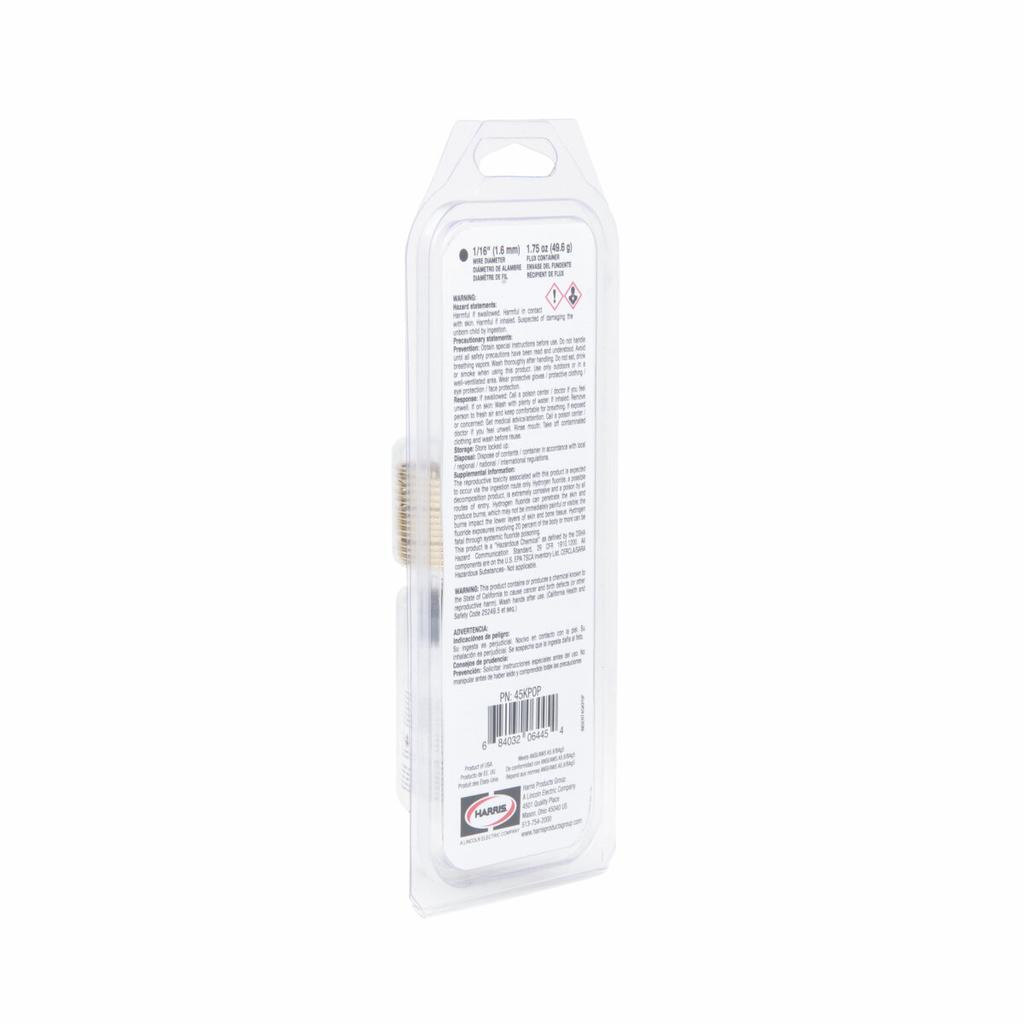

• The kit includes 1/16 in. (1.6 mm) braze wire and 1.75 oz. (49.6 g) Stay-Silv® white brazing flux in convenient clamshell packaging
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145◦F (63◦C)
• Conforms to the EU Reach & RoHS directive
• Popular choice to braze copper, brass, steel and stainless steel
• General purpose cadmium-free silver brazing alloy kit

• Melting Range: 145 F (63 C)
• Wire Diameter: 1/16 in (1.6 mm)
• Recommended Joint Clearance: 0.003 in - 0.006 in (0.08 mm - 0.15 mm)
• Material Composition: 45% Silver, Copper, Zinc, Cadmium-Free
• Application Base Metals: Copper, Brass, Steel, Stainless Steel
• Weight: 0.24 lbs
• Compliance: EU Reach, RoHS
• Color: Silver to Light Yellow
