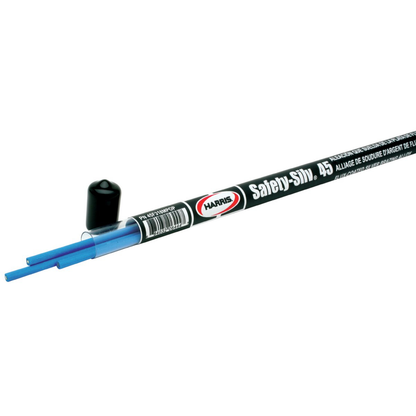

Harris Products Group, 45F318MPOP, Brazing Alloy, 1/16 in, High Silver, Flux-Coated, 4 Tubes/Box

Safety-Silv® 45FC flux-coated silver brazing alloy performs like a 45% silver cadmium-bearing alloy, but is cadmium-free. The flux coating on the wire eliminates the need for manual flux application. It has a lower melting temperature than Safety-Silv® 45. Its excellent fillet-forming quality produces high-strength ductile joints. Certified to NSF Standard 51 for food service equipment.

Features

• General purpose, cadmium-free silver brazing alloy
• Popular choice to braze copper, brass, steel and stainless steel
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Complies with the EU RoHS directive
• Fluidity rating of 6.5
• Fillet forming qualities are suitable for filling loose connections
• Flux-coating eliminates the need for manual flux application
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145◦F (63◦C)
• Good ductility and capillary flow

• Size: 1/16 in
• Weight: 0.15 lbs
• Silver Content: 45%
• Cadmium Content: 0%, Cadmium-Free
• Joint Clearance: 0.003 in - 0.006 in
• Melting Range: 1370 F - 1550 F (740 C - 845 C)
• Melting Temperature Difference: Approx. 145 F (63 C)
• Flux Coating: Flux-Coated
• Joint Strength: High
• Ductility: Excellent
• Typical Base Metals: Copper, Brass, Steel, Stainless Steel
• Compliance: EU RoHS, NSF Standard 51
