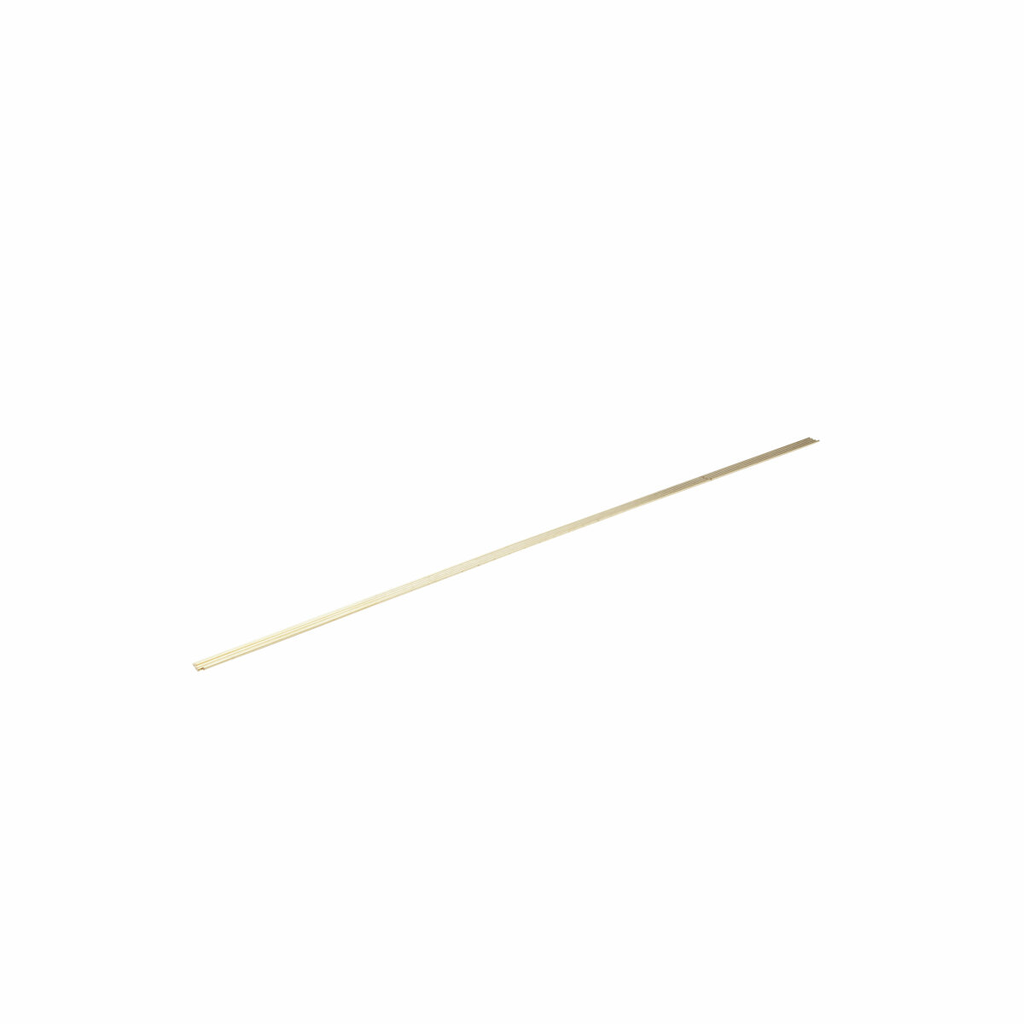

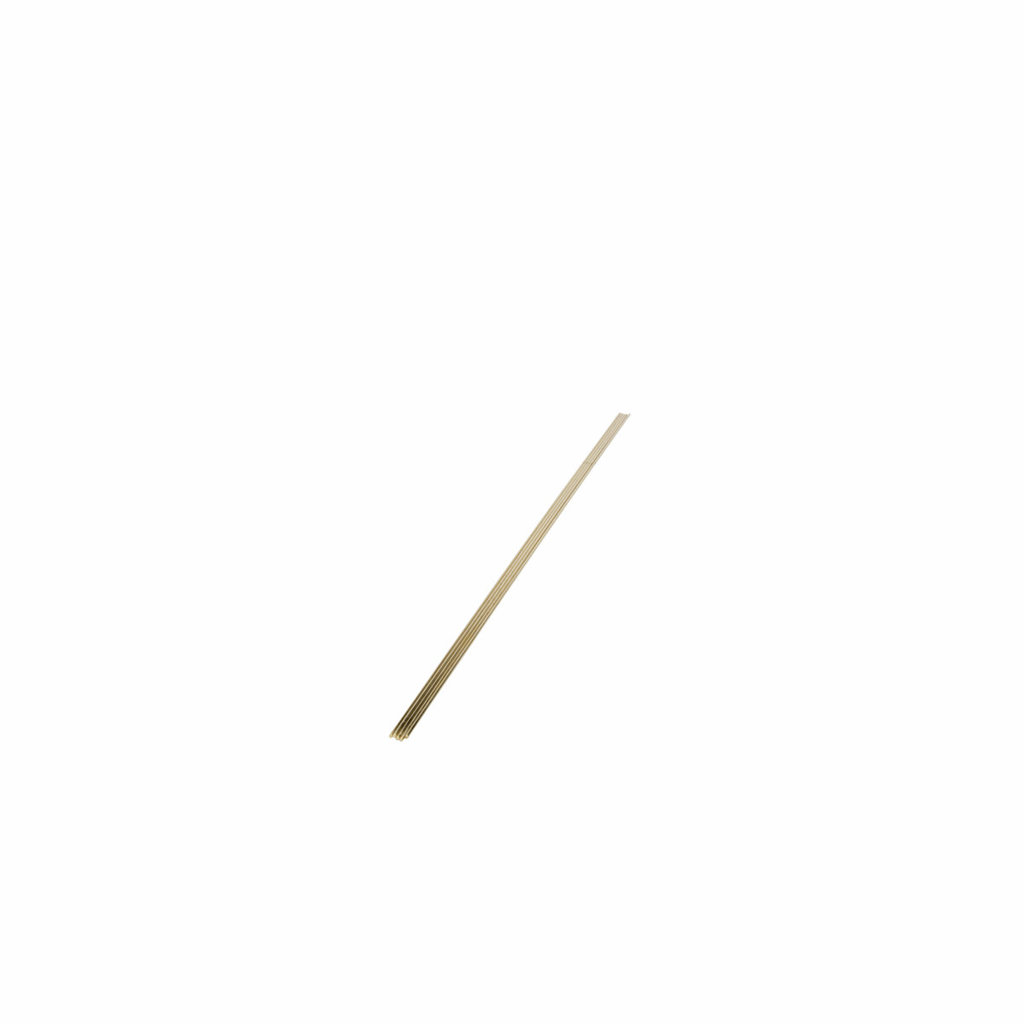

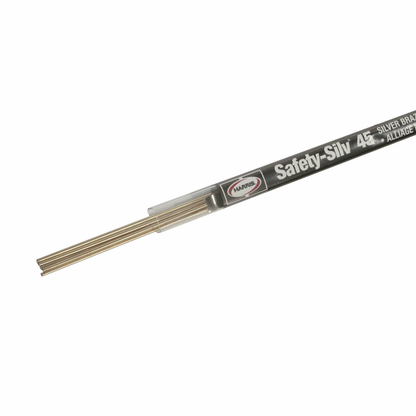

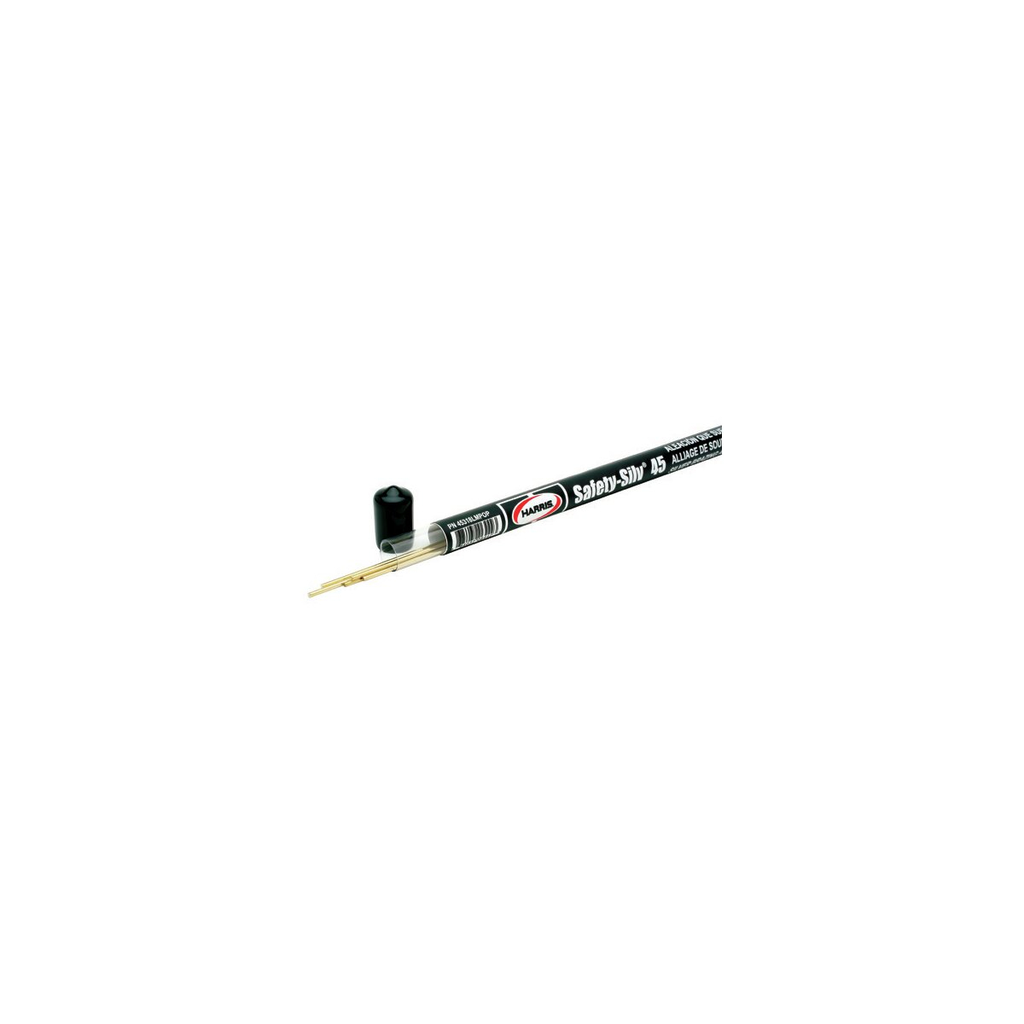

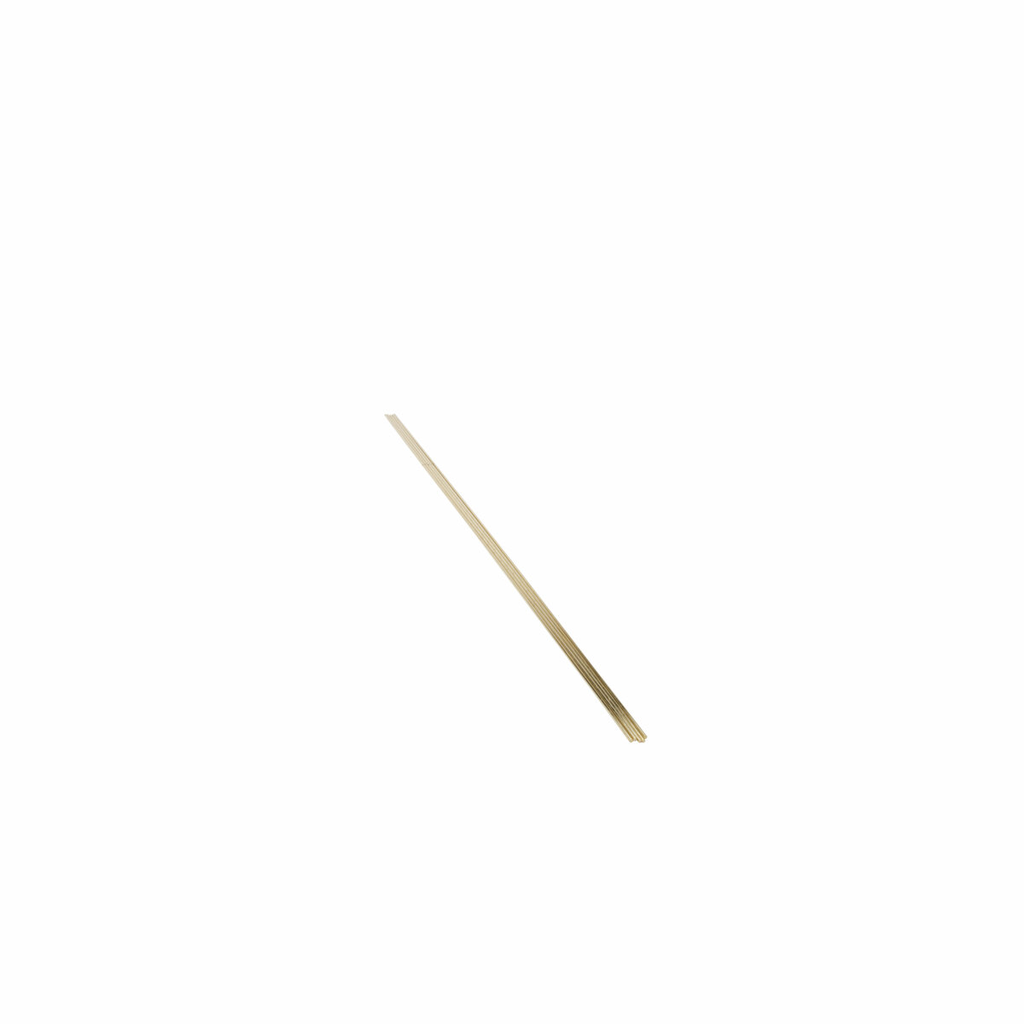

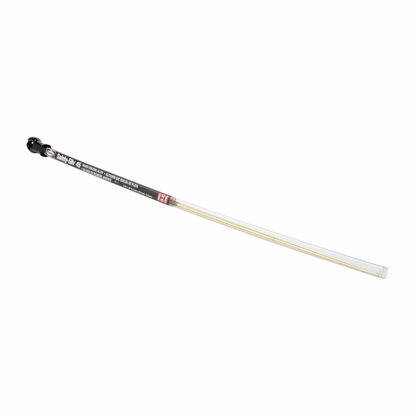

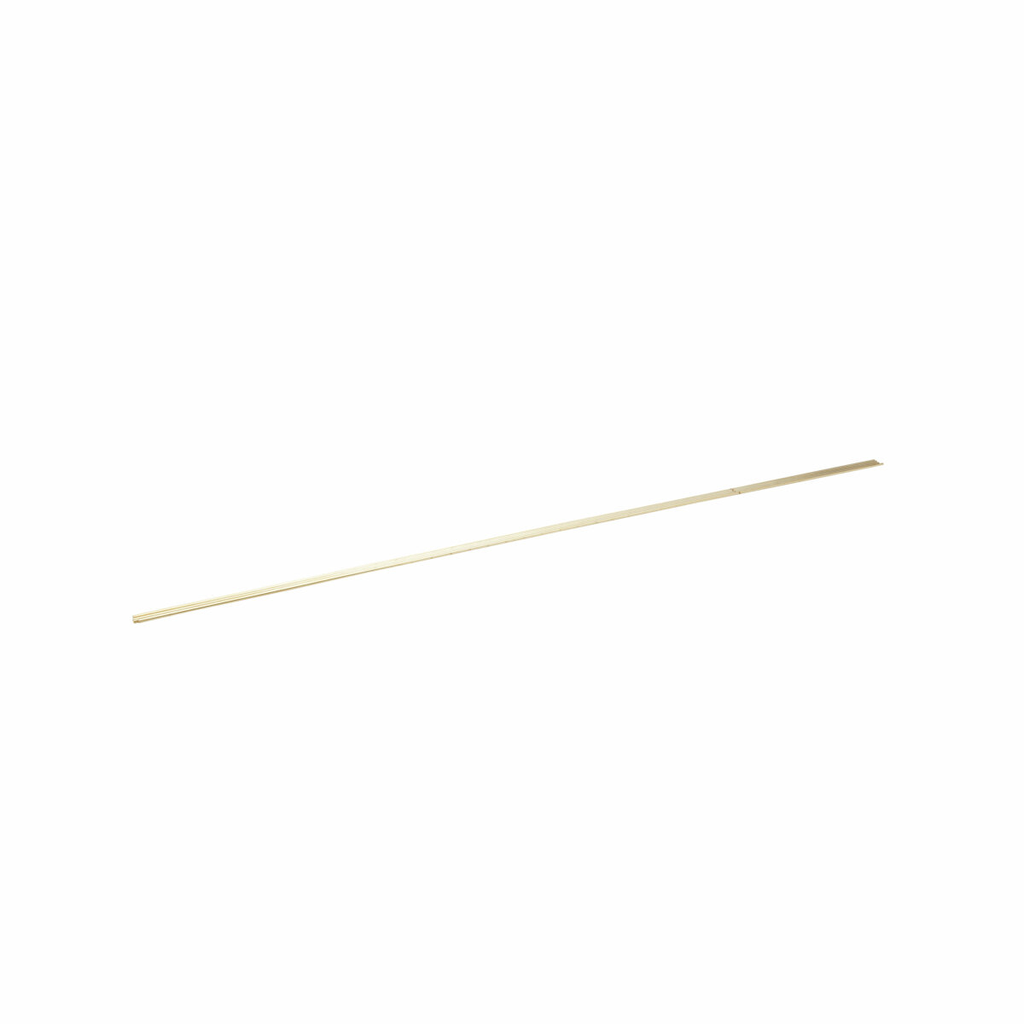

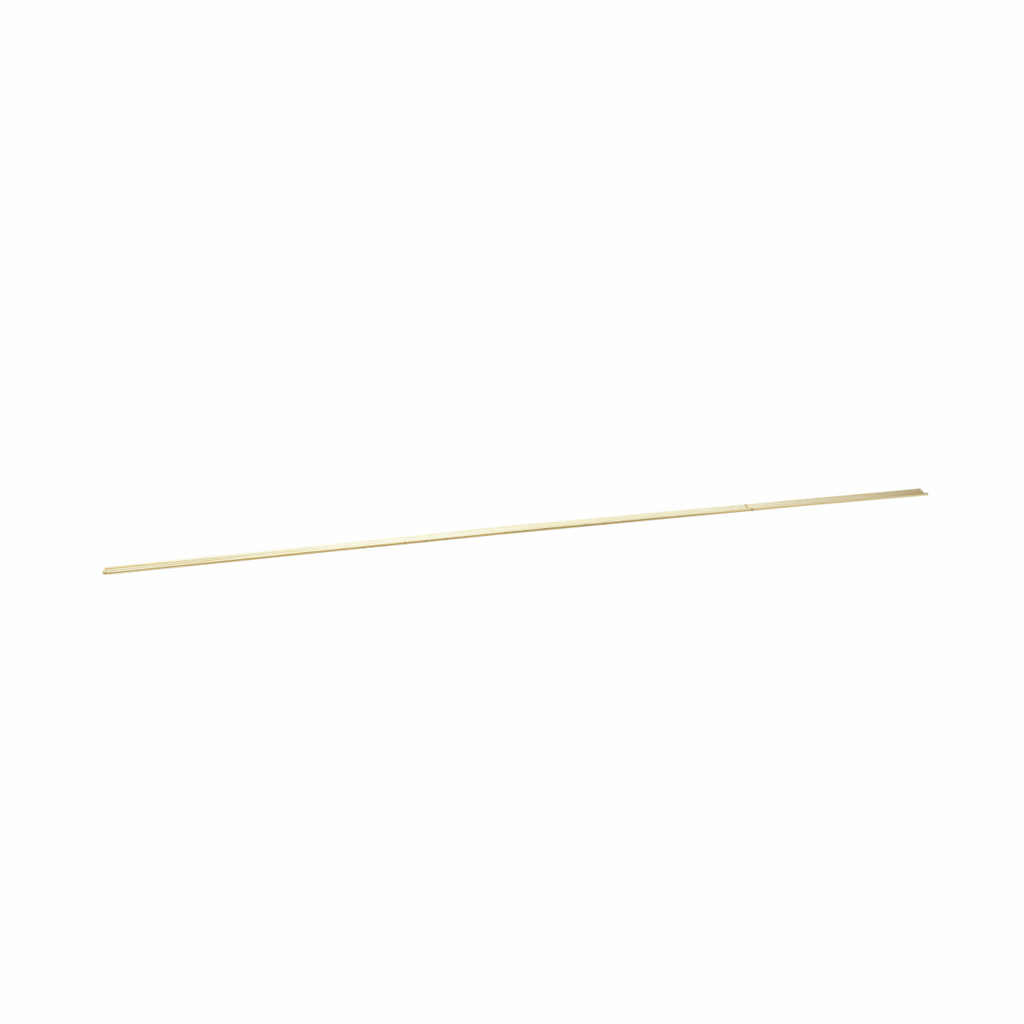

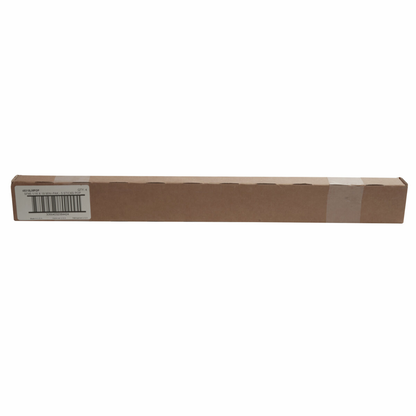

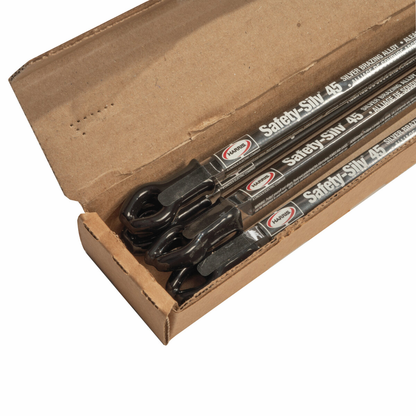

Harris Products Group, 45318LMPOP, Brazing Alloy, 1/16 in, High Silver, Cadmium-Free, RoHS Compliant

Safety-Silv® 45 is an excellent General Purpose silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and stainless steel. A cadmium-free filler metal with a melting range of approximately 145°F, Safety-Silv® 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.

Features

• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Fillet forming qualities are suitable for filling loose connections
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145◦F (63◦C)
• Popular choice to braze copper, brass, steel and stainless steel
• Complies with the EU Reach & RoHS directive
• Good ductility and capillary flow
• Fluidity rating of 6.5
• General purpose, cadmium-free silver brazing alloy

• Weight: 0.1 lbs
• Size: 1/16 in
• Melting Range: 1370 F - 1550 F
• Recommended Joint Clearance: 0.003 in - 0.006 in
• Material: Silver Brazing Alloy
• Silver Content: 45%
• Base Metals: Copper, Brass, Steel, Stainless Steel
• Electrical Conductivity: 18.9 %IACS
• Ductility: Good
• Fillet Forming Qualities: Good
• Density: 4.79 t.o./cu.in.
• Cadmium-Free: Yes
• Compliance: RoHS, EU Reach
