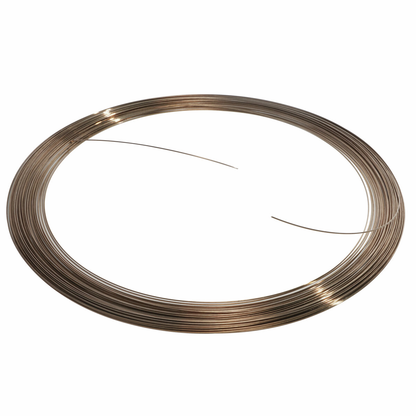

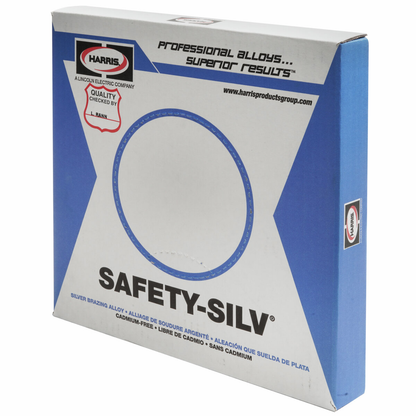

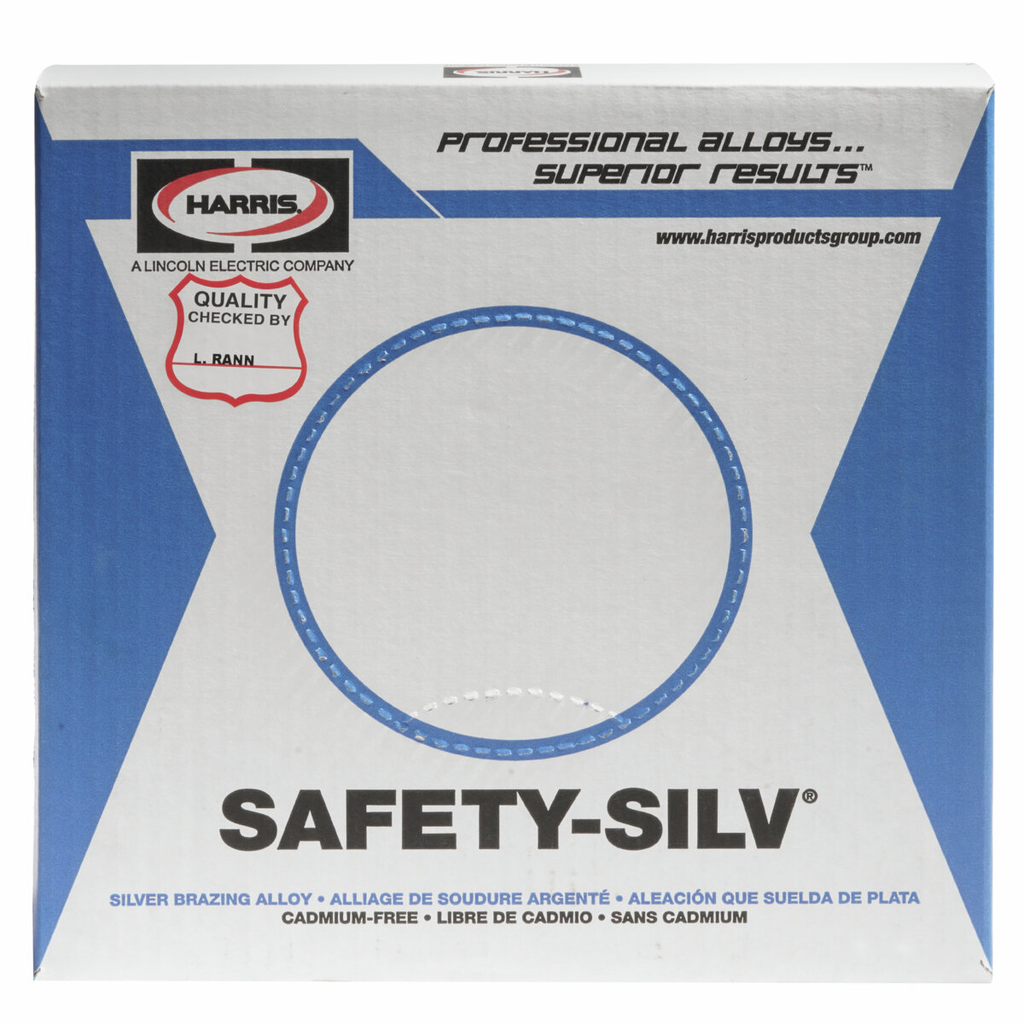

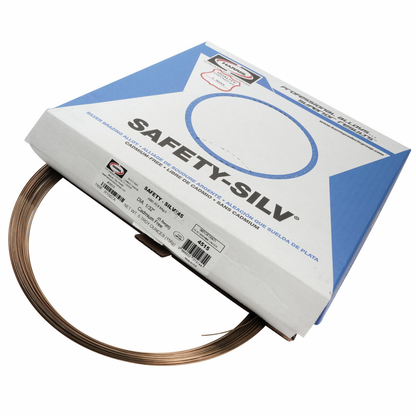

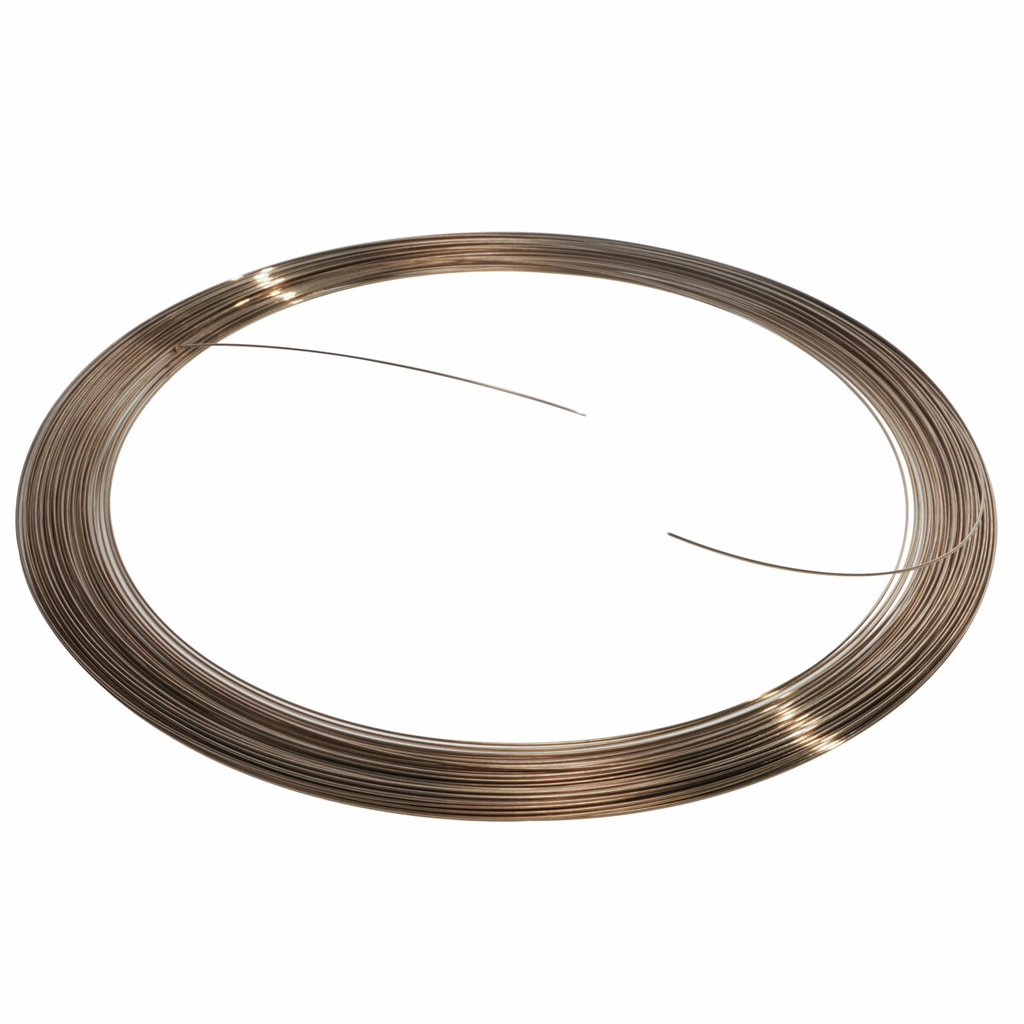

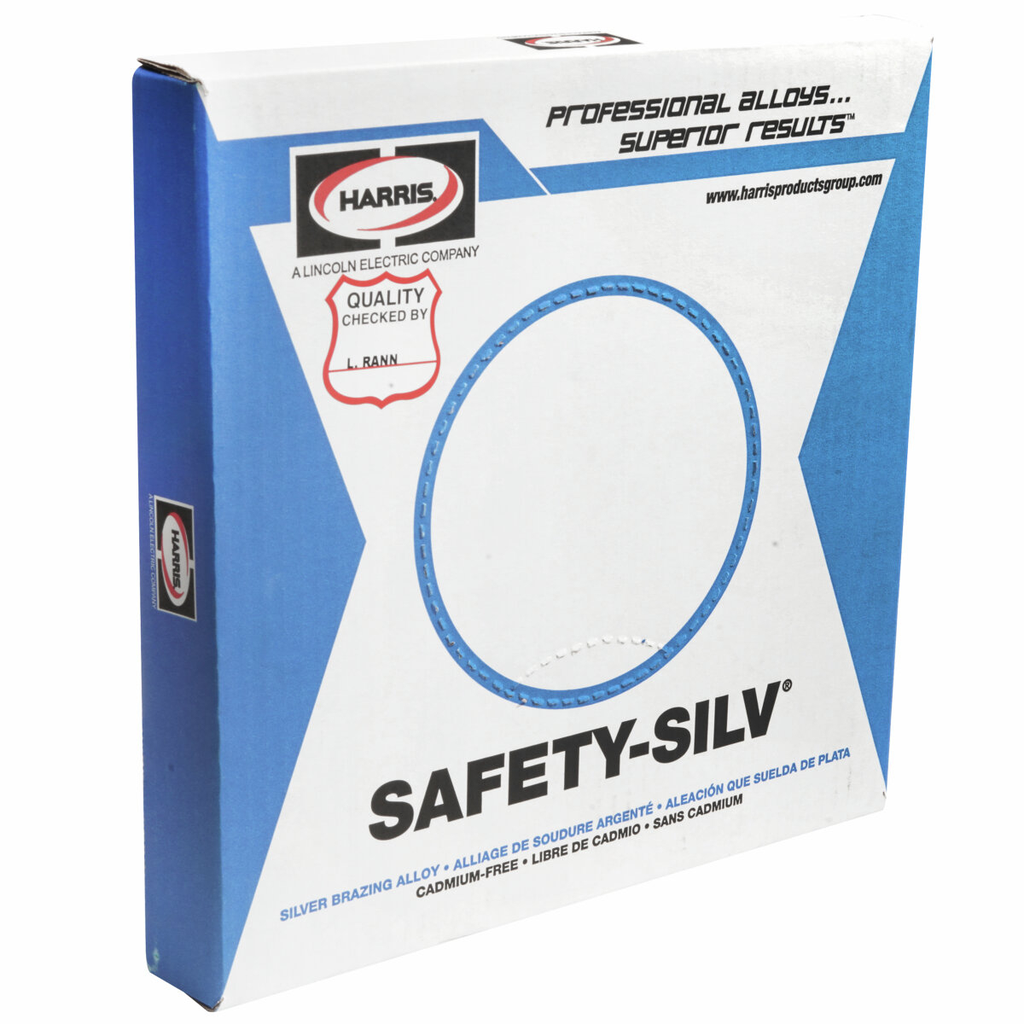

Harris Products Group, 4515, Brazing Alloy, High Silver, 1/32 in, Cadmium-Free, RoHS Compliant

Safety-Silv® 45 is an excellent General Purpose silver brazing filler metal. Used for decades, this alloy is a popular choice for brazing copper, brass, steel, and stainless steel. A cadmium-free filler metal with a melting range of approximately 145◦F, Safety-Silv® 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 in. - 0.006 in. Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.

Features

• Good ductility and capillary flow
• Fillet forming qualities are suitable for filling loose connections
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• General purpose, cadmium-free silver brazing alloy
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145°F (63°C)
• Fluidity rating of 6.5
• Popular choice to braze copper, brass, steel and stainless steel
• Complies with the EU Reach & RoHS directive

• Weight: 0.4 lbs
• Material: Silver brazing alloy
• Silver Content: 44-46%
• Copper Content: 29-31%
• Zinc Content: 23-27%
• Other Elements: 0.15%
• Cadmium-Free: Yes
• Melting Range: 1370 F - 1550 F (740 C - 845 C)
• Preferred Joint Clearance: 0.003 in - 0.006 in (0.08 mm - 0.15 mm)
• Electrical Conductivity: 18.9 %IACS
• Density: 4.79 t.o./cu.in.
• Compliance: RoHS, EU REACH
