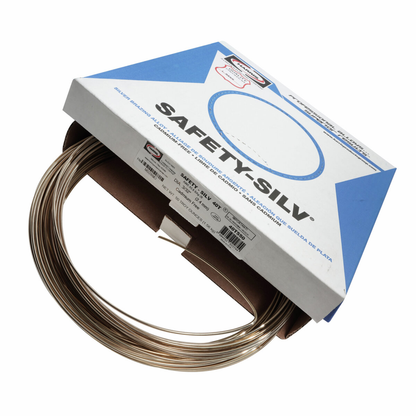

Harris Products Group, 40T550, Brazing Alloy, Cadmium-Free; 40% Silver; Designed for Copper, Brass, Steel

Safety-Silv® 40T high silver brazing filler metal is primarily designed for brazing copper, brass, and steel. The melting range allows use where part clearance cannot be tightly controlled. The tin addition reduces the melting temperature and allows for slightly lower silver content. The result is an alloy with good flow characteristics and the opportunity for cost reduction compared with traditional 45% silver alloys. Conforms to the EU Reach & RoHS directive.

Features

• Provides cost-savings opportunity when compared to 45% silver alloys
• Complies with the EU Reach & RoHS directive
• Melting range is ideal when part clearance cannot be tightly controlled
• Fluidity rating of 6.5
• Good flow properties
• Designed to braze copper, brass and steel
• General purpose, cadmium-free, silver brazing alloy
• Tin addition reduces the melting temperature to allow a slightly lower silver content

• Weight: 0.07 lbs
• Material: High silver brazing alloy (cadmium-free)
• Silver Content: 39-41%
• Zinc Content: 26-30%
• Copper Content: 29-31%
• Tin Content: 1.5-2.5%
• Melting Range: 1220-1310 6F (660-710 6C)
• Density: 4.76 troy oz/cu.in.
• Electrical Conductivity: 18.00% IACS
• Compliance: ANSI/AWS A5.8 Class BAg-28, ASME SFA5.8 Class BAg-28, ISO 17672 Ag 140, REACH, RoHS
