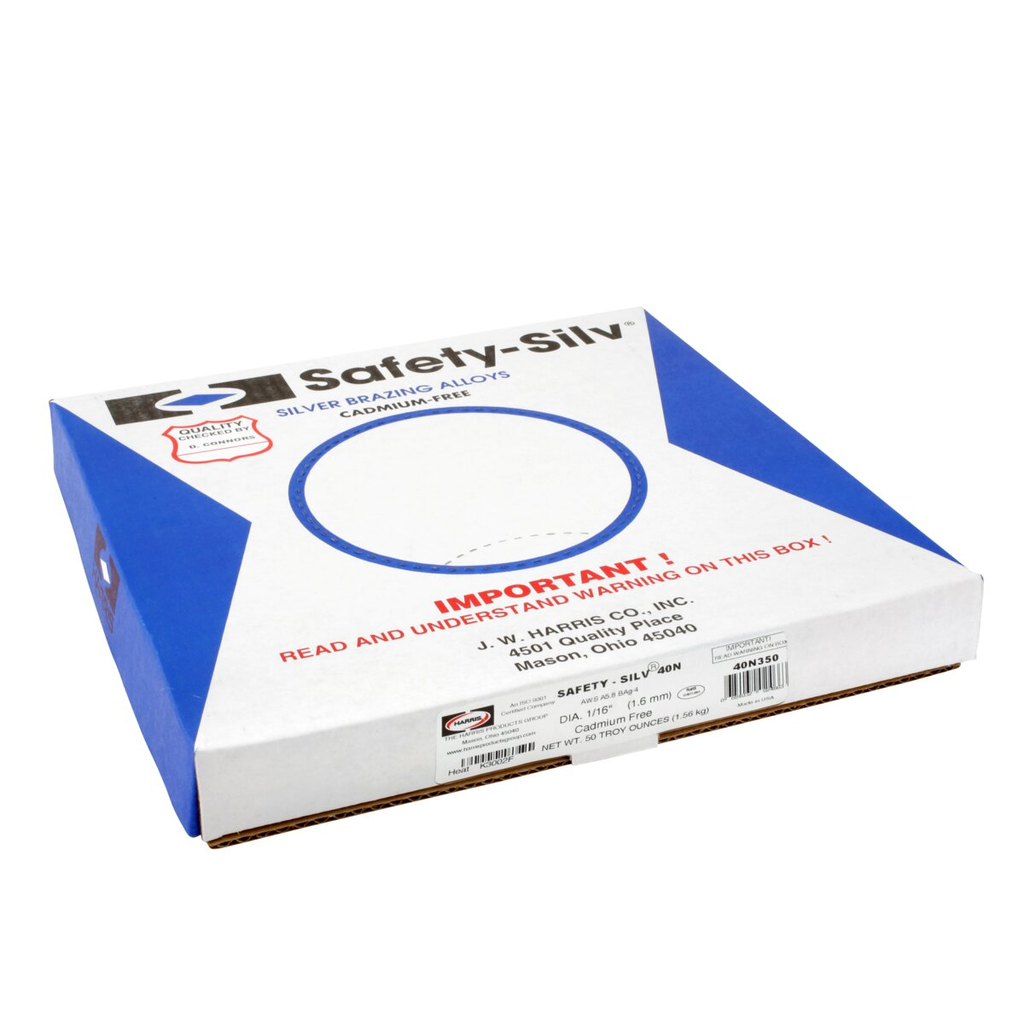

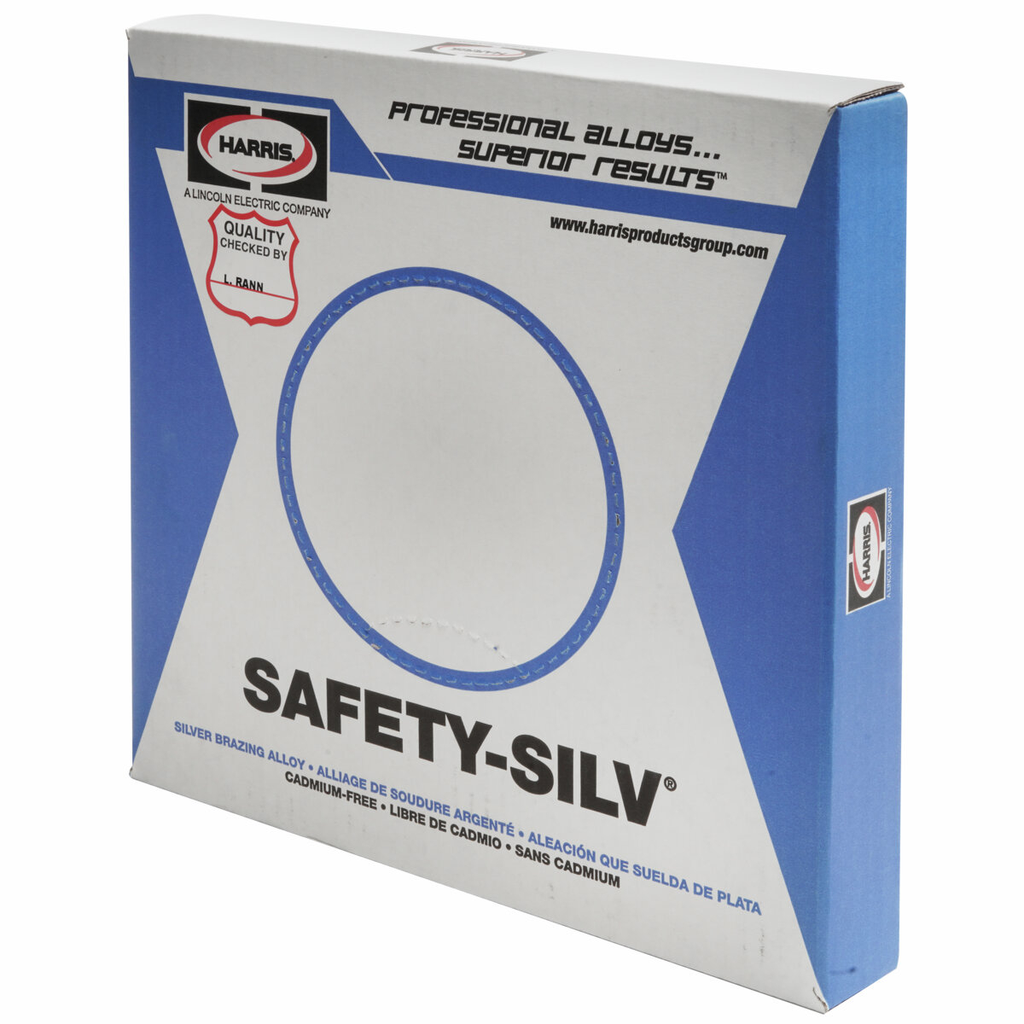

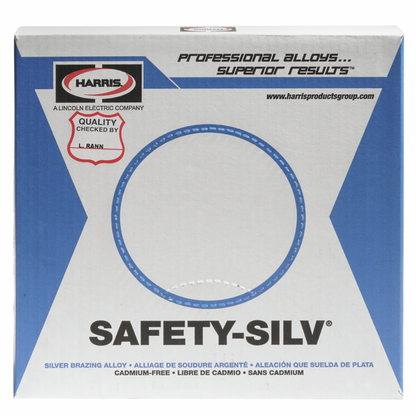

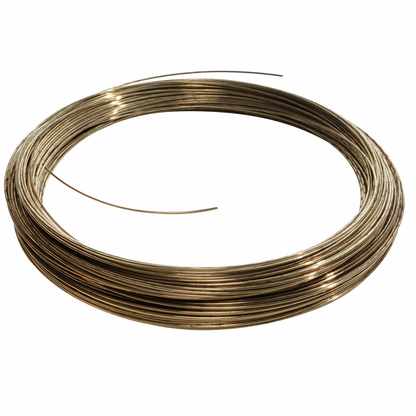

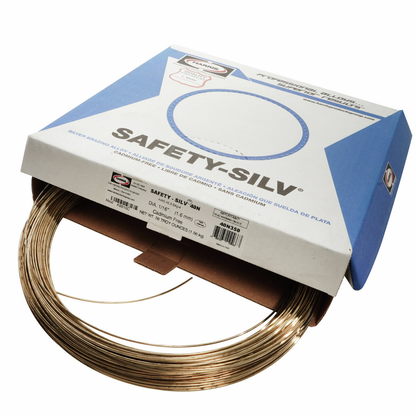

Harris Products Group, 40N350, High Silver Brazing Alloy, Cadmium-free, 2% Nickel, Wide Melting Range

Safety-Silv® 40Ni2 high silver brazing filler metal is engineered for brazing copper, brass, steel, nickel alloys, and stainless steel. This alloy typically exhibits improved corrosion resistance on stainless steel compared to brazing alloys without the nickel addition. The 2% nickel addition improves wetting and strength. Safety-Silv® 40Ni2 exhibits a wider melting range with a slightly elevated melting temperature. It is frequently used to braze tungsten carbide to steel and tool steel for cutting tips, drill bits, and saw blades. Applications are similar to those of the higher silver Safety-Silv® 50N, but Safety-Silv® 40Ni2 exhibits a wider melting range with a slightly elevated melting temperature. Conforms to the EU Reach & RoHS directive.

Features

• Fluidity rating of 4.5
• The 2% nickel addition improves wetting and strength
• Wide melting range with slightly elevated melting temperature
• Cadmium-free, silver-nickel brazing alloy
• Engineered for brazing copper, brass, steel, nickel alloys and stainless steel
• Complies with the EU Reach & RoHS directive
• Improved corrosion resistance on stainless steel when compared to other brazing alloys
• Good choice for tungsten carbide tool tipping

• Weight: 0.07 lbs
• Silver Content: 39-41%
• Copper Content: 29-31%
• Zinc Content: 26-30%
• Nickel Content: 1.5-2.5%
• Other Elements: 0.15%
• Solidus Temperature: 124061F (67161C)
• Liquidus Temperature: 143561F (77961C)
• Brazing Range: 143561F - 165061F (78061C - 90061C)
• Electrical Conductivity: 16.80 %IACS
• Density: 4.76 Troy ounces/cu.in.
• Material: Silver, Copper, Zinc, Nickel alloy
• Compliance: EU REACH, RoHS, ANSI/AWS A5.8, ASME SFA 5.8, QQ-B-654A Class BAg-4, ISO 17672 Ag 440
