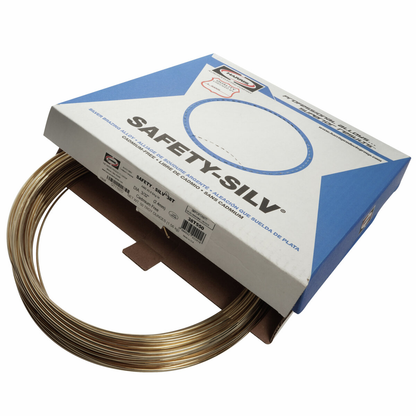

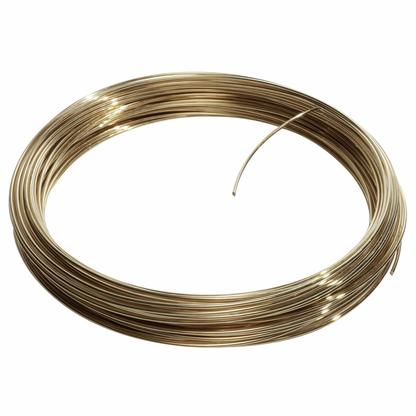

Harris Products Group, 38T550, Brazing Alloy, High Silver; Cadmium-Free, 0.07 lb

Safety-Silv® 38T high silver, cadmium-free, brazing filler metal has good flow properties and excellent fillet forming qualities. Safety-Silv® 38T produces high strength, ductile joints. It is an economical brazing alloy for brazing ferrous and nonferrous metals often selected to replace higher silver content brazing alloys. Conforms to the EU Reach & RoHS directive.

Features

• Brazes ferrous and nonferrous metals
• High strength ductile joints
• Good flow properties and excellent fillet forming qualities
• Economical, cadmium-free, replacement for higher silver content brazing alloys.
• Complies with the EU Reach & RoHS directive

• Weight: 0.07 lbs
• Silver Content: 37.0 - 39.0%
• Copper Content: 31.0 - 33.0%
• Zinc Content: 26.0 - 30.0%
• Tin Content: 1.5 - 2.5%
• Other Elements: 0.15%
• Solidus Temperature: 1220 F (649 C)
• Liquidus Temperature: 1330 F (721 C)
• Electrical Conductivity: 18.0 %IACS
• Electrical Resistivity: 9.50
• Density: 4.77 Troy oz/cu.in.
• Specific Gravity: 8.89
• Material: High Silver Brazing Alloy, Cadmium-Free
• Compliance: ANSI/AWS A5.8 Class BAg-34, ASME SFA 5.8, ISO 17672 Ag 138, EU REACH, RoHS
