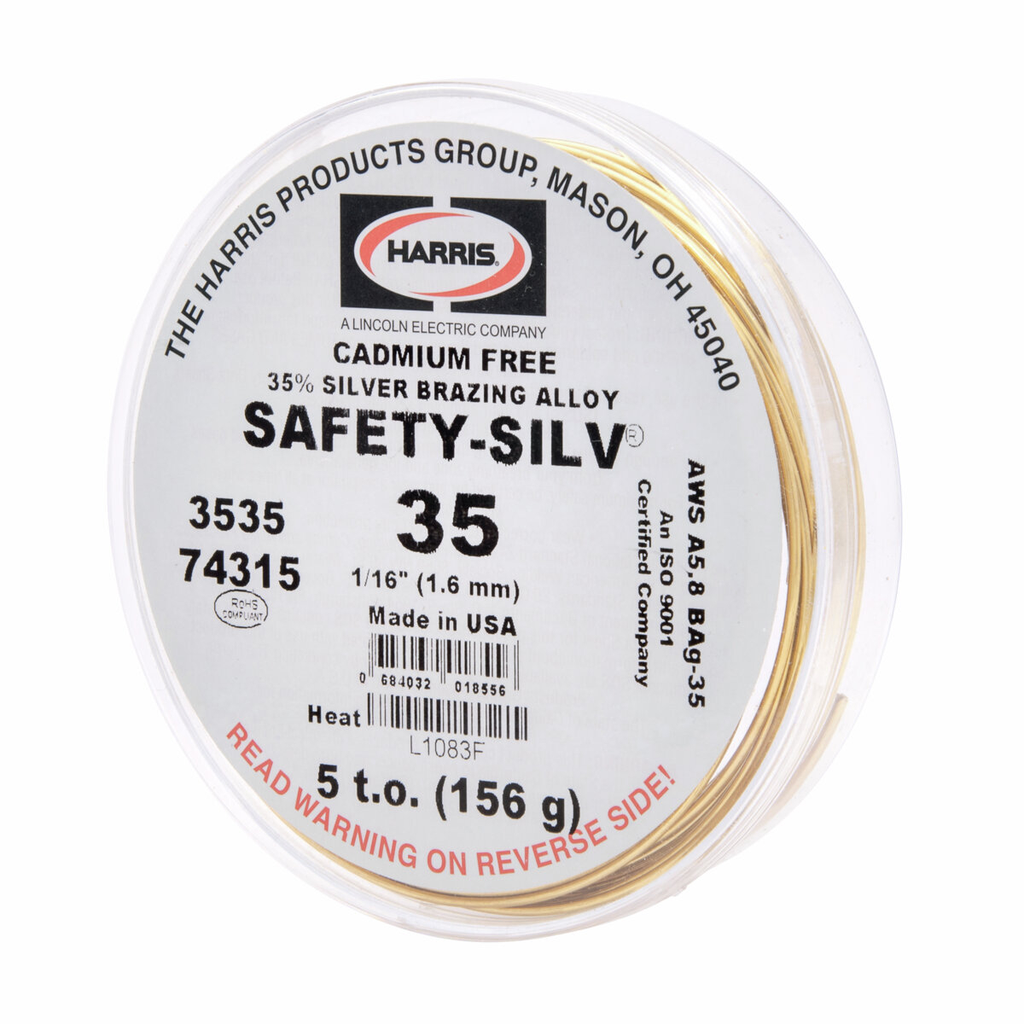

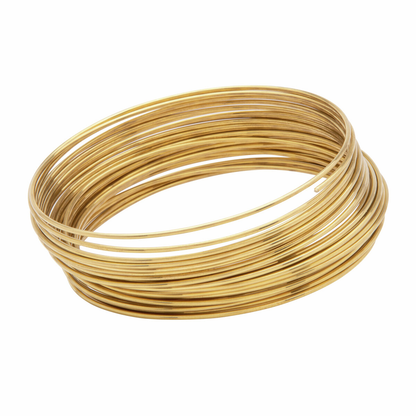

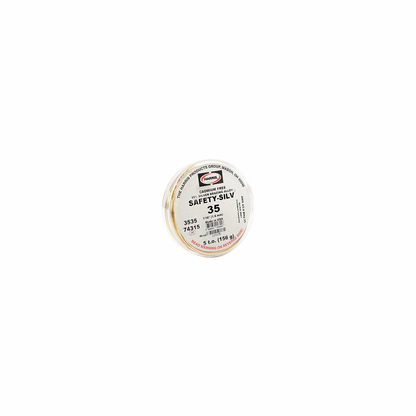

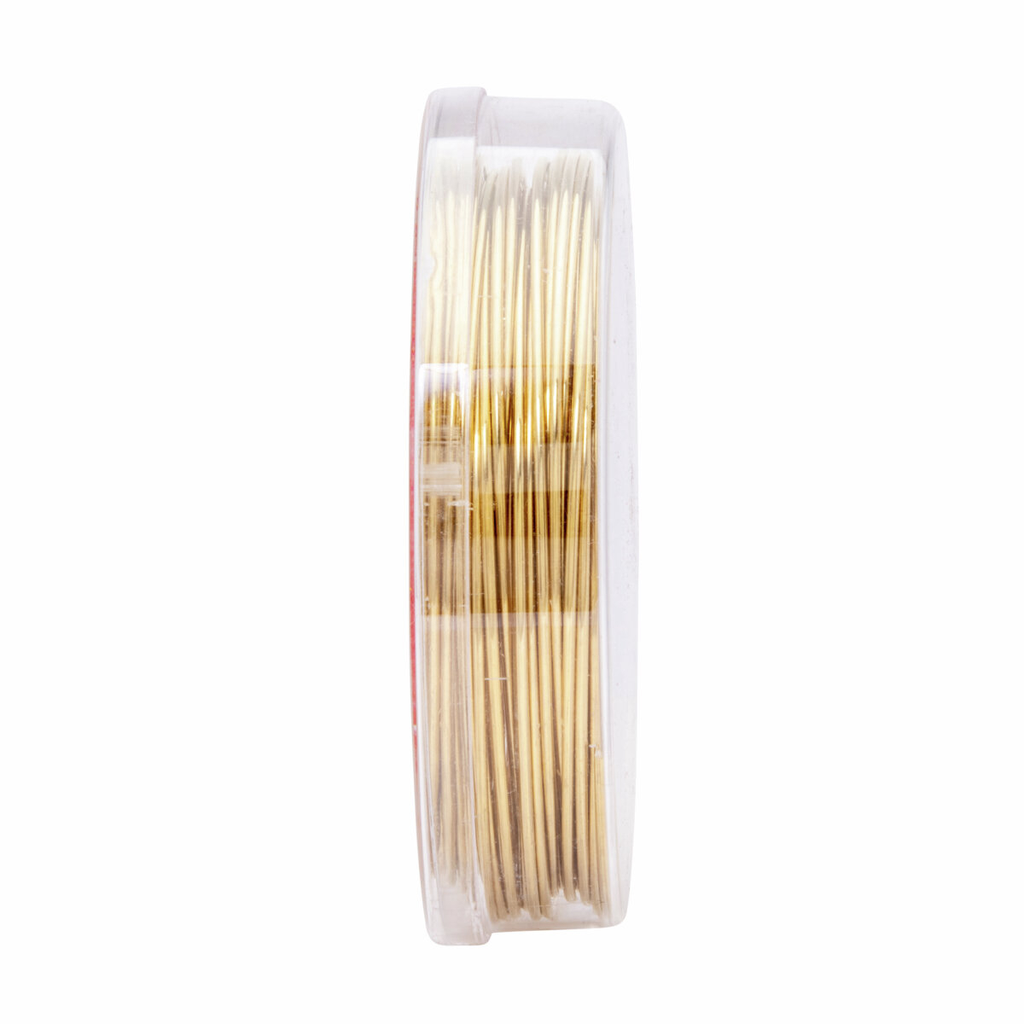

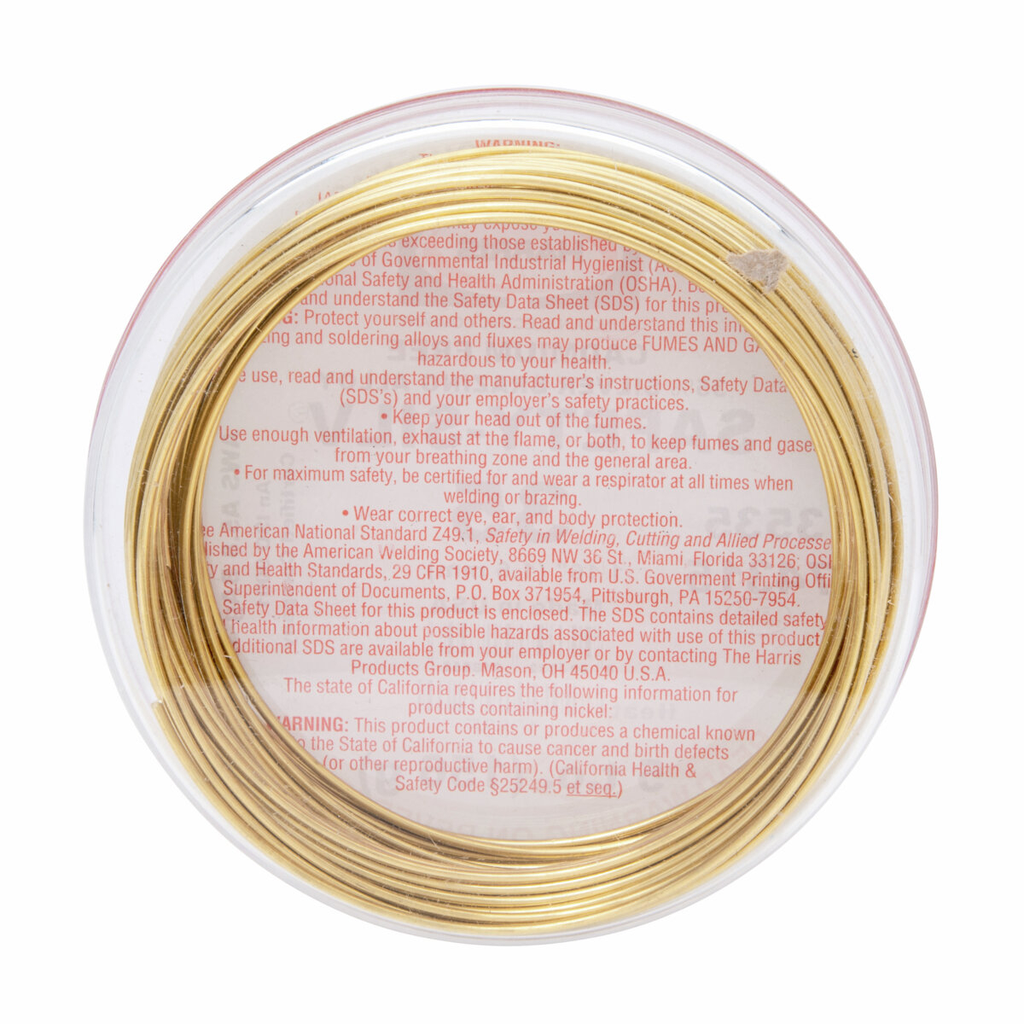

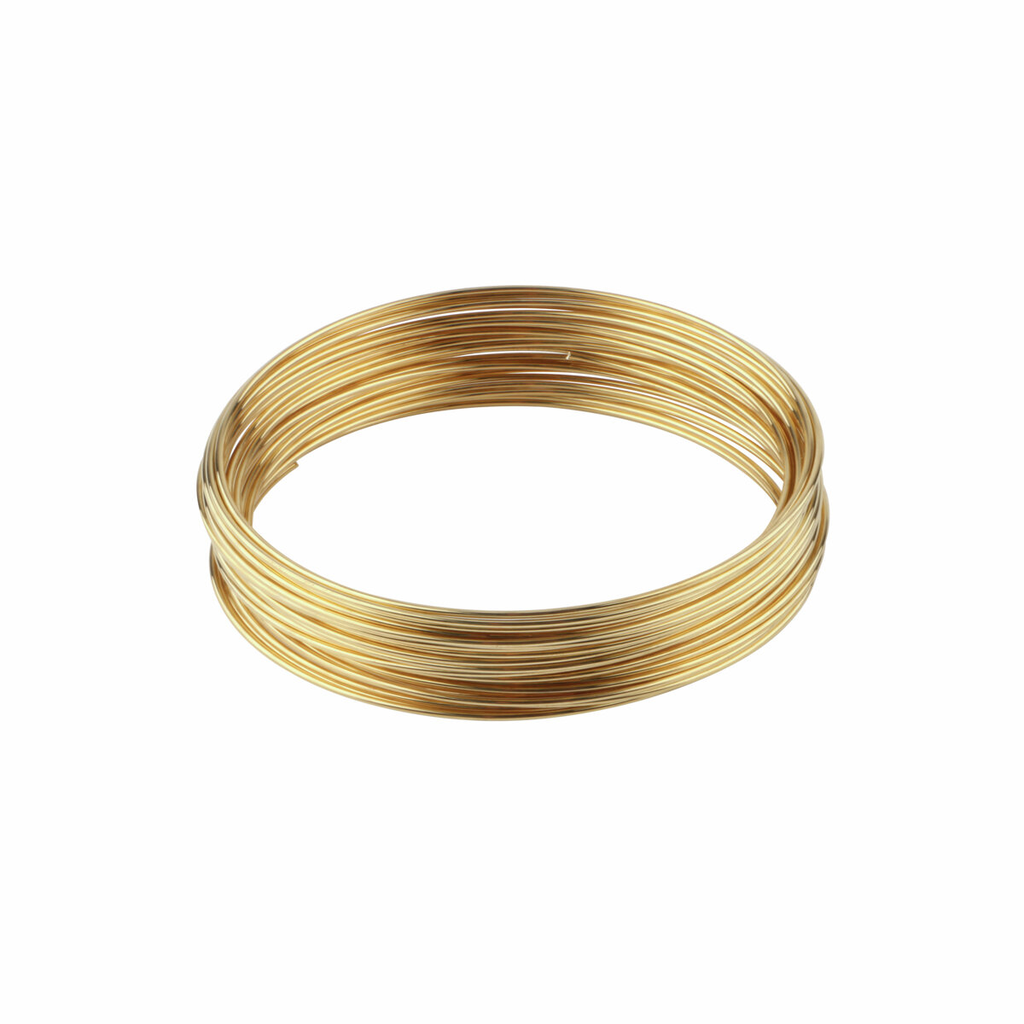

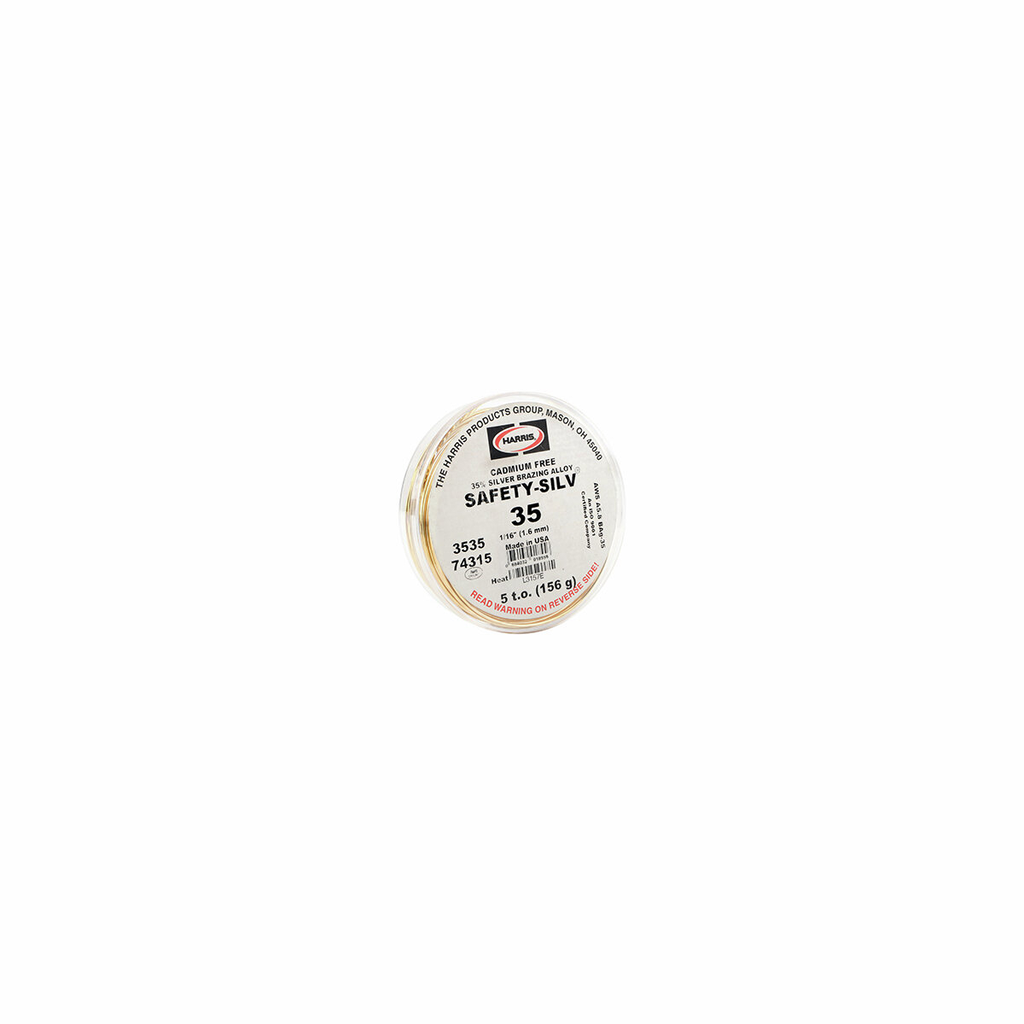

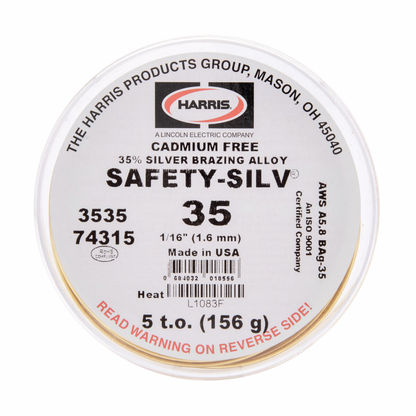

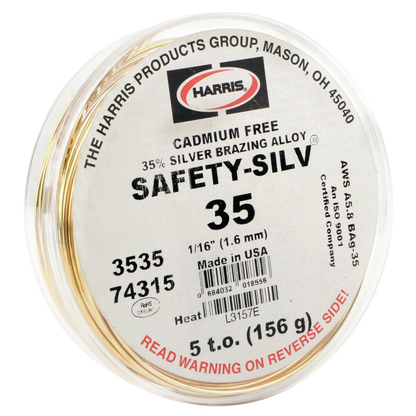

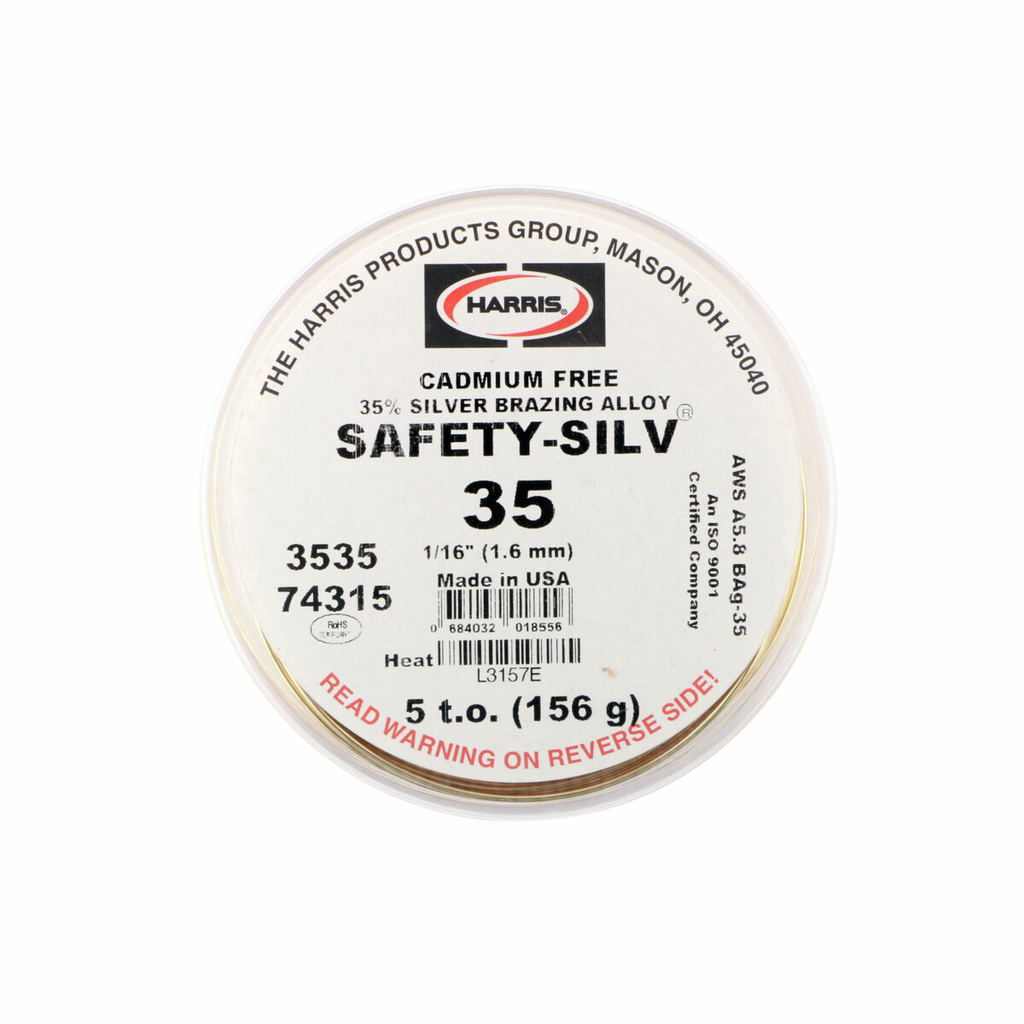

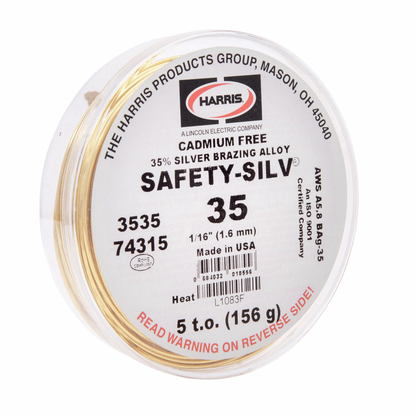

Harris Products Group, 3535, Brazing Alloy, Cadmium-Free, 1/16 in, High Silver, ANSI Approved

Safety-Silv® 35 is a cadmium-free, lower temperature silver brazing filler metal. The cadmium-free quality of this filler metal makes it useful for applications where cadmium fumes must not exist in the brazing environment. Safety-Silv® 35 is suitable for joining steel, copper and most brasses. It produces joints that are strong and ductile as its medium range brazing temperature is only slightly higher than cadmium-bearing silver filler metals. Conforms to the EU Reach & RoHS directive.

Features

• Produces strong, ductile joints
• Good selection for replacing the cadmium alloys
• Lower temperature cadmium-free silver brazing alloy is only slightly higher than cadmium-bearing alloys
• Suitable for joining steel, copper and most brasses
• Medium brazing temperature range
• Complies with the EU Reach & RoHS directive
• Produced with precise wire size and chemical composition

• Brazing Temperature Range: 1390 F - 1545 F (755 C - 840 C)
• Solidus Temperature: 1265 F (685 C)
• Liquidus Temperature: 1390 F (754 C)
• Electrical Conductivity: 18.9 %IACS
• Wire Diameter: 1/16 in
• Weight: 0.4 lbs
• Material: Silver, Copper, Zinc
• Silver Content: 34-36%
• Copper Content: 31-33%
• Zinc Content: 31-35%
• Other Elements Content: 0.15%
• Cadmium: Free
• Density: 4.79 t.o./cu.in.
• Compliance: ANSI/AWS A5.8 Class BAg-35, ISO 17672 Ag 235, EU REACH, RoHS
